Summary of Contents for CYP CSDI-12SR

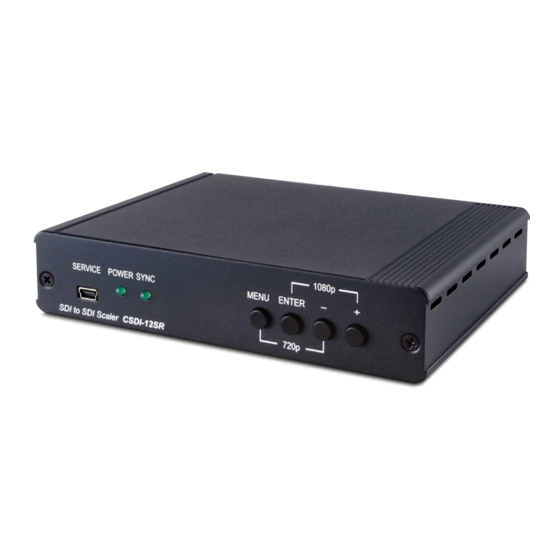

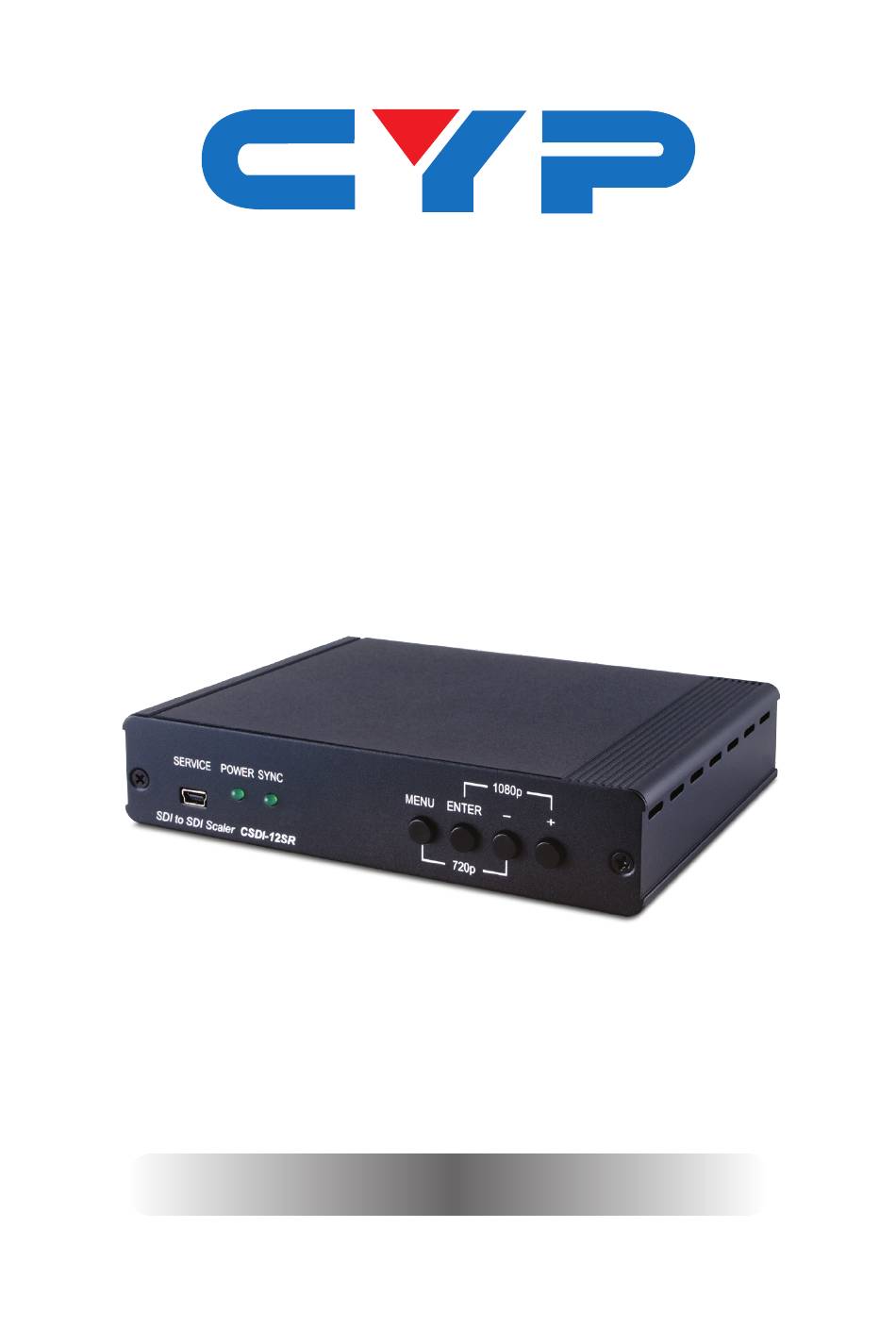

  • Page 1 CSDI-12SR 1 by 2 3G-SDI Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7.
  • Page 6: Introduction

    1. INTRODUCTION The 1 by 2 3G-SDI Scaler allows an SD-SDI, HD-SDI and 3G-SDI signal to be scaled and split to two simultaneous SDI outputs, providing bandwidth up to 2.970 Gbps for 3G-SDI video support allowing the user to distribute and extend their SDI signal. The On-screen Display (OSD) menu can be controlled from the front panel, allowing quick and easy adjustment of all settings.
  • Page 7: Features

    5. FEATURES • Splits an SDI input to two SDI outputs with scaler function • Supports scaling of any SDI input to any SDI output to SDI standards • Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with auto- detection • SDI interface operates at bitrates of 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps and 270 Mbps •...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 1080p SERVICE POWER SYNC MENU ENTER 720p SERVICE: Connect to a PC or Laptop with a mini USB B cable for firmware update only. POWER LED: The LED will illuminate when the unit is connected to an active power supply.
  • Page 9: Rear Panel

    6.2 Rear Panel SDI OUT DC 5V SDI IN SDI IN: Connect to the SDI output of the SDI source device. SDI OUT 1/2: Connect to the SDI devices such as TV/displays or recorders. DC 5V: Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet.
  • Page 10: Osd Menu

    6.3 OSD Menu MAIN MENU SUB MENU ADJUSTMENTS DEFAULT OUTPUT 480I59, 576I50, 720P60 720P50, 720P59, 720P60, 1080P23, 1080P24, 1080P25, 1080P29, 1080P30, 1080I50, 1080P50, 1080I59, 1080P59, 1080I60, 1080P60 EXIT PICTURE CONTRAST 0 ~ 100 BRIGHTNESS 0 ~ 100 SATURATION 0 ~ 100 0 ~ 100 SHARPNESS 0 ~ 100...
  • Page 11 MAIN MENU SUB MENU ADJUSTMENTS DEFAULT AUDIO ENABLE YES, NO SOURCE GROUP 1+2, 3+4, AUTO AUTO EXIT OSD SETTINGS POSITION LEFT-TOP, LEFT-TOP RIGHT-TOP, RIGHT-BTM, LEFT-BTM, CENTER TRANSPARENCY 0~15 MENU TIMEOUT 5~50, OFF INFO. TIMEOUT 5~50, OFF INFO. DISPLAY ON, OFF, INFO INFO EXIT...
  • Page 12 MAIN MENU SUB MENU ADJUSTMENTS DEFAULT EXIT FACTORY DEFAULT EXIT INFORMATION AUDIO GROUP DETECTION REPORT FIRMWARE VERSION EXIT EXIT Note: The OSD IN/OUT displays the current input/output resolution. If the source did not correctly connect to the input, the OSD will display 'No Signal'.
  • Page 13 3. MENU TIMEOUT The menu/info display will remain on-screen when 'MENU TIMEOUT' is OFF. 4. AUTO SYNC-OFF The system will automatically switch off the SYNC output when the output displays have been disconnected for 2 minutes. 5. FREEZE Once activated, the unit will remain in 'FREEZE' mode even if the source changes resolution or there is no source input unless the output resolution is changed.
  • Page 14: Connection Diagram

    7. CONNECTION DIAGRAM SDI Camera SDI Input Power Supply SDI OUT DC 5V SDI IN SDI Output SDI Output SDI Display/Monitor SDI Recorder...
  • Page 15: Specifications

    8. SPECIFICATIONS 8.1 Technical Specification SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps & 270 Mbps Video Bandwidth 148.5 MHz/link Input Port 1×BNC (SD-SDI/HD-SDI/3G-SDI) Output Ports 2×BNC (SD-SDI/HD-SDI/3G-SDI) SD-SDI Timing SMPTE 259M-C, 270 Mbps HD-SDI Timing...
  • Page 16: Supported Input Resolutions

    8.2 Supported Input Resolutions SDI STANDARD INPUT TIMING SD-SDI 480i@59 Hz 576i@50 Hz HD-SDI 720p@50/59.94/60 Hz 1080i@50/59.94/60 Hz 1080p@23.98/24/25/29.97/30 Hz 1080sF@23.98/24/25/29.97/30 Hz 3G-SDI 1080p@50/59.94/60 Hz Note: When the input source resolution is 1080sF@23.98/24 Hz, 480i/576i output resolutions are not supported and will not be available for selection in the OSD menu.
  • Page 17: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM High-definition Serial Digital Interface...
  • Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CSDI12SR...
