CYP CSC-5501TX Operation Manual

Hdmi/dp/vga to hdmi/hdbaset scaler (pse) with optical audio return
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CSC-5501TX
HDMI/DP/VGA to HDMI/HDBaseT Scaler (PSE)
with Optical Audio Return
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC-5501TX and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CSC-5501TX

Summary of Contents for CYP CSC-5501TX

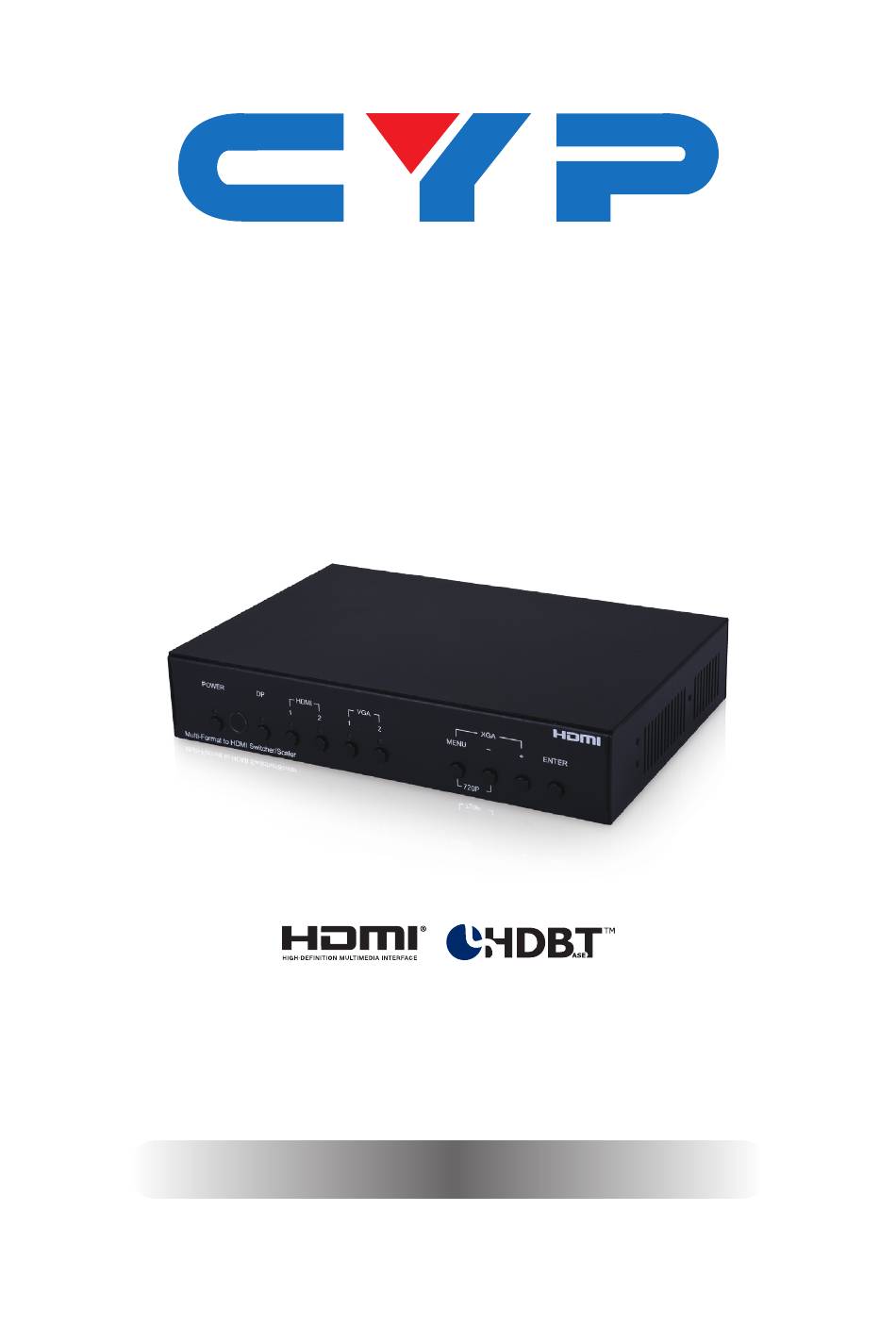

  • Page 1 CSC-5501TX HDMI/DP/VGA to HDMI/HDBaseT Scaler (PSE) with Optical Audio Return Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Remote Control ......... 6 6.4 IR Cable Pinouts ........6 6.5 OSD Menu ..........

  • Page 6: Introduction

    1. INTRODUCTION This scaler has DisplayPort, HDMI and PC (VGA) inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. This unit also includes separate analog and digital audio outputs to provide additional playback flexibility.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI, DisplayPort or VGA source equipment such as media players, video game consoles, PCs, or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • A compatible HDBaseT receiver with 48V PoH and Optical Audio Return support is strongly recommended.

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER HDMI MENU – ENTER 720P Multi-Format to HDMI Switcher/Scaler POWER Button & LED: Press this button to power the unit on (Green LED) or place it into stand-by mode (Red LED). IR Window: Accepts IR signals from the included IR remote for control of this unit only.

  • Page 9: Rear Panel

    6.2 Rear Panel 4 5 6 INPUT OUTPUT OPT. RS-232 CAT5e/6 AUDIO SERVICE RS-232 DC 24V HDMI HDMI AUDIO COAX DP IN: Connect to DisplayPort source equipment such as a PC or laptop. Note: In some rare cases, digital DisplayPort audio can’t be supported.
  • Page 10 the HDBaseT Receiver. IR IN: Connect to the provided IR Extender to extend the IR control range of remotely located devices. Ensure that the remote being used is within direct line-of-sight of the IR Extender. IR OUT: Connect to the provided IR Blaster to transmit IR signals to devices within direct line-of-sight of the IR Blaster.

  • Page 11: Remote Control

    6.3 Remote Control POWER HDMI 1 HDMI 2 POWER: Press this button to power the unit on or PC 1 PC 2 place it into stand-by mode. DP/HDMI 1~2/PC 1~2: Press any of these buttons EXIT MENU to switch immediately to the corresponding input.

  • Page 12: Osd Menu

    6.5 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 13 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Output 1280×768 60 1360×768 60 1280×720 60 1280×800 60 1280×1024 60 1440×900 60 1400×1050 60 1680×1050 60 1600×1200 60 1920×1080 60 1920×1200 60 720×480p 60 1280×720p 60 1920×1080p 60 720×576p 50 1280×720p 50 1920×1080p 50 1920×1080p 24 1920×1080p 25...
  • Page 14 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL DP HDCP Refer To Source REFER TO DISPLAY HDMI1 HDCP Refer To Source REFER TO DISPLAY HDMI2 HDCP Refer To Source REFER TO DISPLAY BLACK No Signal Color White Blue Green Blank Freeze Auto Setup Auto Sync Off 3 Min...
  • Page 15 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Auto Setup Auto Scan From HDMI2 From VGA1 From VGA2 Auto Switch VGA Setup Auto Setup [Current Status] H Position 0~250 V Position 0~250 Phase 0~255 0~250 (125) Clock Reset 1) Video Routing: Selects the input source to display. 2) Output: Selects the output resolution to use.
  • Page 16 7) No Signal Color: Selects the free run color to use when no live input source is detected. 8) Blank: Allows for the output video and audio to be blanked/ muted. 9) Freeze: Allows for the output video to be frozen. While the output is frozen, audio output will also be muted.
  • Page 17 PICTURE 2ND LEVEL 3RD LEVEL 0~60 (30) Saturation 0~63 (0) Sharpness Middle High Auto Reset Picture 1) Color Gain R/G/B: These controls provide control over the red, green, and blue color gain level of the scaled output. 2) Color Offset R/G/B: These controls provide control over the red, green, and blue color offset level of the scaled output.
  • Page 18 AUDIO 2ND LEVEL 3RD LEVEL FOLLOW VIDEO Audio Routing Audio 1 Audio 2 Audio 3 0~100 (80) HDMI Volume 0~100 (80) Coax Volume 0~100 (80) Analog Volume HDMI Mute Coax Mute Analog Mute Audio Delay 30ms 40ms 50ms 60ms 70ms 80ms 90ms 100ms...
  • Page 19 AUDIO 2ND LEVEL 3RD LEVEL Audio Delay 170ms 180ms 190ms 200ms HDMI Audio Delay Coax Audio Delay Analog Audio Delay Reset Audio 1) Audio Routing: Provides control over the analog audio routing in the unit. Selecting “Follow Video” maps analog audio 1 to all digital inputs (DisplayPort, HDMI 1 &...
  • Page 20 Selecting “Off” will disable audio delay for all output types. 9) HDMI Audio Delay: Enable or disable audio delay for the HDMI/ HDBaseT outputs. 10) Coax Audio Delay: Enable or disable audio delay for the coaxial audio output. 11) Analog Audio Delay: Enable or disable audio delay for the analog audio output.
  • Page 21 2ND LEVEL 3RD LEVEL Reset OSD 1) H Position: Set the horizontal position of the OSD menu. 2) V Position: Set the vertical position of the OSD menu. 3) Timer: Set the length of time to wait before automatically turning off the OSD menu if there is no user interaction.
  • Page 22 3) Setup Static IP: Manually set the IP address, netmask and gateway address to use when the unit is in Static IP mode. 4) IP: Displays the unit’s current IP address. 5) MAC: Displays the unit’s MAC address. EDID 2ND LEVEL 3RD LEVEL DP EDID 1024×768 60...
  • Page 23 EDID 2ND LEVEL 3RD LEVEL HDMI1 EDID 1440×900 60 1400×1050 60 1600×900 60 1600×1200 60 1680×1050 60 1920×1200 60 1280×720p 50 1280×720p 60 1920×1080p 50 1920×1080p 60 INT1 User1 User2 User3 Out-HDMI Out-CAT5e/6 HDMI2 EDID 1024×768 60 1280×800 60 1280×1024 60 1366×768 60 1440×900 60 1400×1050 60...
  • Page 24 EDID 2ND LEVEL 3RD LEVEL HDMI2 EDID 1920×1080p 50 1920×1080p 60 INT1 User1 User2 User3 Out-HDMI Out-CAT5e/6 VGA1 EDID 1024×768 60 1280×800 60 1280×1024 60 1366×768 60 1440×900 60 1400×1050 60 1600×900 60 1600×1200 60 1680×1050 60 1920×1200 60 1280×720p 50 1280×720p 60 1920×1080p 50 1920×1080p 60...
  • Page 25 EDID 2ND LEVEL 3RD LEVEL VGA2 EDID 1366×768 60 1440×900 60 1400×1050 60 1600×900 60 1600×1200 60 1680×1050 60 1920×1200 60 1280×720p 50 1280×720p 60 1920×1080p 50 1920×1080p 60 INT2 User4 User5 DP EDID Status HDMI1 EDID Status HDMI2 EDID Status [Current EDID Selection] VGA1 EDID Status VGA2 EDID Status...
  • Page 26 RESET 2ND LEVEL 3RD LEVEL Reset All Picture Reset All 1) Reset All Picture: Selecting this will reset all picture settings back to their factory defaults. 2) Reset All: Selecting this will reset all of the unit’s settings back to their factory defaults.

  • Page 27: Webgui Control

    6.6 WebGUI Control • Device Discovery Tool Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”...

  • Page 28: Main

    • WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “LOGIN” to log in. Note: The default user name and password is “admin”. 6.6.1 Main Page 0 All primary functions of this unit are controllable via the built-in WebGUI.
  • Page 29 • STATUS This section provides information about the unit’s current input, output and HDCP status as well as the current Firmware Revision. • VIDEO This section allows for control of input selection, output resolution & aspect ratio, HDCP behavior for the HDMI & DisplayPort inputs, the “no signal”...

  • Page 30: Main

    6.6.2 Main Page 1 Select the “MainPage1” tab to adjust settings related to audio output, the OSD, Ethernet, and power. System reset, authentication changes and firmware updates may also be performed from here. If desired, the numerical value for many of the items can be entered directly by typing it in the box above the slider bar.
  • Page 31 • ETHERNET This section allows for setting the unit to either Static or DHCP mode for obtaining its IP information. When DHCP mode is selected, the unit will attempt to obtain an automatically assigned IP address from the local DHCP server. When in Static mode, the IP, Netmask and Gateway must be set manually.

  • Page 32: Rs-232 Control

    6.7 RS-232 Control UNIT TERMINAL SERIAL PORT SETTINGS Pinout Pinout Baud Rate 115200 Data Bits Parity Bit None Stop Bits Flow Control None 6.8 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Click Start, type “cmd”...

  • Page 33: Rs-232 And Telnet Commands

    6.9 RS-232 and Telnet Commands COMMAND DESCRIPTION & PARAMETERS ? Show the full command list. HELP Show the full command list. GET N1 ? Show details about a specific command. N1 = {Base Command String} SET SYSTEM REBOOT Reboot the unit. SET SYSTEM DEFAULT...
  • Page 34 COMMAND DESCRIPTION & PARAMETERS SET IP MODE N1 Set the IP address assignment mode. Available values for N1: [Static IP mode] [DHCP mode] GET IP MODE Show the current IP mode. SET IP ADDR N1 Set the static IP address. N1 = X.X.X.X [X = 0 ~ 255] GET IP ADDR...
  • Page 35 COMMAND DESCRIPTION & PARAMETERS SET INT EDID 1 TO INPUT N1 Assign Internal EDID 1 to input N1. Available values for N1: [DisplayPort] [HDMI 1] [HDMI 2] [All 3 digital inputs] SET INT EDID 2 TO INPUT N1 Assign Internal EDID 2 to input N1. Available values for N1: [VGA 1] [VGA 2]...
  • Page 36 COMMAND DESCRIPTION & PARAMETERS [1280×720P@ 50 EDID] [1280×720P@60 EDID] [1920×1080P@50 EDID] [1920×1080P@60 EDID] Available values for N2: [DisplayPort] [HDMI 1] [HDMI 2] [VGA 1] [VGA 2] [All inputs] SET USER EDID N1 TO INPUT N2 Assign User EDID N1 to input N2. Available values for N1: [User EDID 1] [User EDID 2]...
  • Page 37 COMMAND DESCRIPTION & PARAMETERS GET USER EDID n DATA List User EDID N1’s EDID data in ASCII HEX. N1 = 1 ~ 5 [Internal EDID number] SET SINK EDID [N1] TO INPUT N2 Assign output N1’s EDID to input N2. Available values for N1: [HDMI output] [HDBaseT output]...
  • Page 38 COMMAND DESCRIPTION & PARAMETERS SET INPUT N1 HDCP MODE N2 Set the HDCP handling method to use with input N1. Available values for N1: [DisplayPort] [HDMI 1] [HDMI 2] Available values for N2: [Off] [Refer to source] [Refer to display] GET INPUT N1 HDCP MODE...
  • Page 39 COMMAND DESCRIPTION & PARAMETERS SET AUDIO [N1] MUTE N2 Enable or disable audio muting for output type N1. Available values for N1: [HDMI] [Coaxial] [Analog audio] Available values for N2: [Off] [On] GET AUDIO [N1] MUTE Show the current audio mute setting for output type N1. Available values for N1: [HDMI] [Coaxial]...
  • Page 40 COMMAND DESCRIPTION & PARAMETERS SET AUDIO [N1] VOLUME UP Increase the volume of audio type N1 by 1 unit. Available values for N1: [HDMI] [Coaxial] [Analog audio] SET AUDIO [N1] VOLUME DOWN Decrease the volume of audio type N1 by 1 unit. Available values for N1: [HDMI] [Coaxial]...
  • Page 41 COMMAND DESCRIPTION & PARAMETERS [90ms] [100ms] [110ms] [120ms] [130ms] [140ms] [150ms] [160ms] [170ms] [180ms] [190ms] [200ms] GET AUDIO DELAY Show the current global audio delay setting. SET AUDIO [N1] DELAY ENABLE N2 Enable or disable audio delay on output type N1. Available values for N1: [HDMI] [Coaxial]...
  • Page 42 COMMAND DESCRIPTION & PARAMETERS SET SCALER [A] INPUT SOURCE N1 Select the input source. Available values for N1: [DisplayPort] [HDMI 1] [HDMI 2] [VGA 1] [VGA 2] GET SCALER [A] INPUT SOURCE Show the current input source. GET SCALER [A] INPUT TIMING Show the video timing of the current input source.
  • Page 43 COMMAND DESCRIPTION & PARAMETERS [1680×1050@60Hz] [1600×1200@60Hz] [1920×1080@60Hz] [1920×1200@60Hz] [720×480p@60Hz] [1280×720p@60Hz] [1920×1080p@60Hz] [720×576p@50Hz] [1280×720p@50Hz] [1920×1080p@50Hz] [1920×1080p@24Hz] [1920×1080p@25Hz] [1920×1080p@30Hz] GET SCALER [A] OUTPUT TIMING Show the current scaled output resolution. SET SCALER [A] ASPECT RATIO N1 Set the output aspect ratio. Available values for N1: [Overscan] [Full] [Best fit]...
  • Page 44 COMMAND DESCRIPTION & PARAMETERS SET SCALER [A] AUTO SYNC OFF N1 Enable or disable the auto sync off function and set the time to wait before turning off sync when enabled. Available values for N1: [Off] [30 seconds] [60 seconds] [3 minutes] [5 minutes] [10 minutes]...
  • Page 45 COMMAND DESCRIPTION & PARAMETERS GET SCALER [A] BLANK Show the current output blanking function’s state. SET SCALER [A] FREEZE N1 Enable or disable freezing the video output. Available values for N1: [Off] [On] Note: Freezing the video will also mute the audio. GET SCALER [A] FREEZE...
  • Page 46 COMMAND DESCRIPTION & PARAMETERS GET INPUT AUTO SWITCH Show the current auto input switch setting. SET INPUT N1 VGA AUTO Activate the VGA auto setup function for input N1. Available values for N1: [VGA 1] [VGA 2] Note: This function requires a VGA source with a bright, edge-to- edge, image to accurately judge the dimensions of the signal.
  • Page 47 COMMAND DESCRIPTION & PARAMETERS SET INPUT N1 VGA V POSITION N2 Set the vertical position for input N1 (VGA inputs only). Available values for N1: [VGA 1] [VGA 2] N2 = 0 ~ 250 [Vertical position] GET INPUT N1 VGA V POSITION Show the current vertical position of input N1.
  • Page 48 COMMAND DESCRIPTION & PARAMETERS GET INPUT N1 VGA CLOCK Show the current clock of input N1. Available values for N1: [VGA 1] [VGA 2] SET INPUT N1 VGA RESET Reset the VGA settings for input N1 (VGA inputs only). Available values for N1: [VGA 1] [VGA 2] SET SCALER [A] OSD H POSITION N1...
  • Page 49 COMMAND DESCRIPTION & PARAMETERS [25 seconds] [30 seconds] [35 seconds] [40 seconds] [45 seconds] [50 seconds] [55 seconds] [60 seconds] GET SCALER [A] OSD TIMEOUT Show the current OSD menu timeout setting. SET SCALER [A] OSD TRANSPARENCY N1 Set the transparency level for the OSD menu. N1 = 0 ~ 50 [Transparency] GET SCALER [A] OSD TRANSPARENCY...
  • Page 50 COMMAND DESCRIPTION & PARAMETERS SET SCALER [A] G GAIN N1 Set the output’s green gain level. N1 = 0 ~ 1023 [Green gain] GET SCALER [A] G GAIN Show the current green gain output level. SET SCALER [A] B GAIN N1 Set the output’s blue gain level.
  • Page 51 COMMAND DESCRIPTION & PARAMETERS SET SCALER [A] BRIGHTNESS N1 Set the output’s brightness level. N1 = 0 ~ 60 [Brightness] GET SCALER [A] BRIGHTNESS Show the output’s current brightness level. SET SCALER [A] CONTRAST N1 Set the output’s contrast level. N1 = 0 ~ 60 [Contrast] GET SCALER [A] CONTRAST...
  • Page 52 COMMAND DESCRIPTION & PARAMETERS SET SCALER [A] NR N1 Set the amount of noise reduction to apply to the output. Available values for N1: [Off] [Low] [Middle] [High] [Auto] GET SCALER [A] NR Show the current noise reduction setting. Note 1: Commands will not be executed unless followed by a carriage return.

  • Page 53: Connection Diagram

    7. CONNECTION DIAGRAM Smart TV RS-232 Controlled Device RS-232 1.5m 60° 60° Network Switch 1.5m 60° 60° Remote RS-232 Zone RS-232 Control HDBaseT Output System DP & Analog Audio Inputs INPUT RS-232 OUTPUT OPT. CAT5e/6 AUDIO SERVICE RS-232 Power Supply HDMI HDMI AUDIO...

  • Page 54: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Input Bandwidth 165MHz/4.95Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×DisplayPort 2×HDMI 2×VGA (HD-15) 3×Stereo (3.5mm) Output Ports 1×HDMI 1×HDBaseT (Cat.5e/6/7) 1×S/PDIF (TOSLINK) 1×S/PDIF (RCA) 1×Stereo (3.5mm) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (Terminal Block) Pass-through/Control Port 1×LAN (RJ-45) Control Port...

  • Page 55: Video Specifications

    Dimensions 215mm×42mm×144mm (W×H×D) [Case Only] 215mm×47mm×153mm (W×H×D) [All Inclusive] Weight 1,068g Chassis Material Metal Silkscreen Color Black Operating Temperature 0 ˚C–40 ˚C/32 ˚F–104 ˚F Storage Temperature -20 ˚C–60 ˚C/-4 ˚F–140 ˚F Relative Humidity 20–90% RH (Non-condensing) Power Consumption 8.2 Video Specifications Support Resolution/Timing (Hz) Input...
  • Page 56 Support Resolution/Timing (Hz) Input Output 1280×960   1280×1024   1360×768   1366×768   1400×1050 60/60 (RB) 60Hz  1440×900 60/60 (RB) 60Hz  1600×900   1600×1200   1680×1050 60/60 (RB) 60Hz  1920×1080 60/60 (RB) 60Hz ...

  • Page 57: Audio Specifications

    8.3 Audio Specifications Analog Inputs Max Audio Level 2Vrms Input Impedance >10kΩ Analog Outputs Max Audio Level 2Vrms THD+N ≤ 80% 1K 0dBFS > 70dB @ 1K 0dBFS Frequency Response < ±3dB @ 20Hz~20KHz Crosstalk < -60dB @ 20hz~20Khz Output Impedance >...

  • Page 58: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Command-Line Interface DisplayPort Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV...
  • Page 59 ACRONYM COMPLETE TERM Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking)
  • Page 60 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
