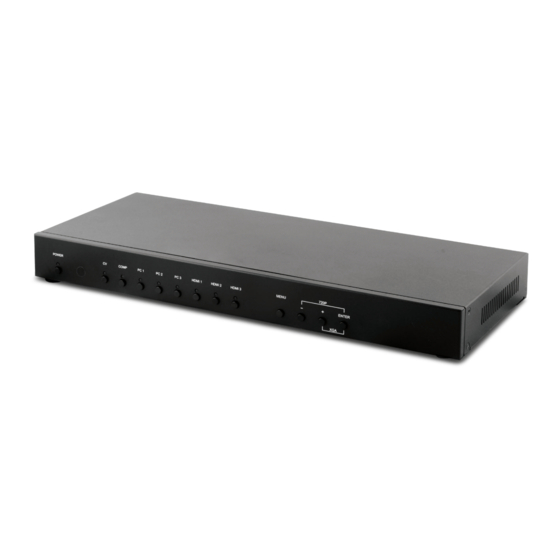

CSC-5500
Multiple Inputs to HDMI/VGA Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC-5500 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CSC-5500

Summary of Contents for CYP CSC-5500

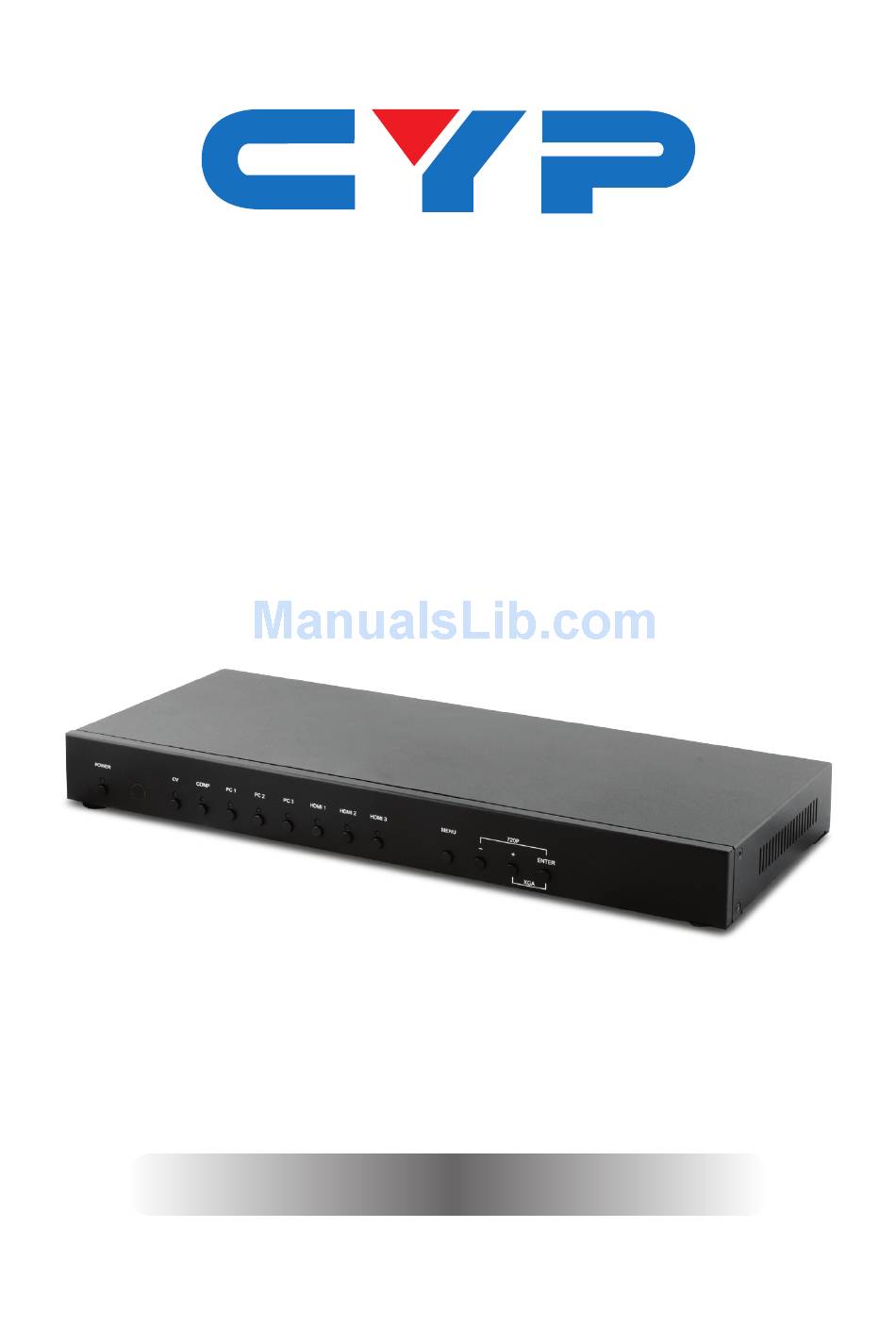

  • Page 1 CSC-5500 Multiple Inputs to HDMI/VGA Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 OSD Menu .........6 6.5 IR Cable Pin Assignment....10 6.6 RS-232 Protocols ......11...

  • Page 6: Introduction

    1. INTRODUCTION This Multi Input Scaler has Composite Video, Component Video, PC (VGA), and HDMI inputs and can switch and scale the signal to HDMI or VGA with audio outputs. It supports HDMI output resolutions up to 1080p/WUXGA and Analog Digital Conversion (ADC) and Digital Analog Conversion (DAC) allowing a wide range of AV signals to be displayed on a HDMI or VGA display.

  • Page 7: Features

    5. FEATURES • Supports switching and scaling of multiple AV inputs to HDMI or PC/ HD outputs • Supports EDID and HDCP • Supports 3D de-interlace, noise reduction and 3D comb filter • Supports frame rate conversion • Supports RS-232, IP (Telnet/WebGUI) and IR controls •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 720P ENTER POWER & LED: Press this button to switch the device on or to set it to standby mode. Once the device is connected to an active power supply and the Power Switch on the back panel is turned on, the LED will illuminate and the device will switch on automatically.

  • Page 9: Rear Panel

    6.2 Rear Panel IR IN SERVICE INPUT AUDIO RS232 COAX AUDIO CONTROL OUTPUT POWER DC 5V HDMI 1 HDMI 2 PC/HD Cr/Pr Cb/Pb IR IN: Connect the supplied IR extender to receive the IR signal from the included IR remote. Ensure that the remote is within the direct line-of-sight of the IR extender.

  • Page 10: Remote Control

    (3) 3.5mm Mini-jacks: Connect to source's L/R output with 3.5mm mini-jack for audio signal conversion. Note: For HDMI signals you can select in the OSD Menu whether you require audio from the HDMI (AUTO) or from the analog audio inputs (EXT) (4) YCbCr/YPbPr + L/R: Connect to source equipment such as a DVD player for both video and audio signal conversion.

  • Page 11: Osd Menu

    6.4 OSD Menu MAIN MENU SUB MENU 3RD MENU 4TH MENU DISPLAY OUTPUT 640×480 60 800×600 60 1024×768 60 1280×768 60 1360×768 60 1280×720 60 1280×800 60 1280×1024 60 1440×900 60 1400×1050 60 1680×1050 60 1600×1200 60 1920×1080 60 1920×1200 60 1280×720P 60* 1920×1080I 60 1920×1080P 60...
  • Page 12 MAIN MENU SUB MENU 3RD MENU 4TH MENU DISPLAY SIZE OVER SCAN FULL* FOLLOW INPUT PAN SCAN LETTER BOX UNDER 2 UNDER 1 MODE INFO INFO* INPUT HDCP (HDMI source only) PC (PC source AUTO SETUP only) H_POSITION V_POSITION PHASE CLOCK XGA* WXGA/XGA...
  • Page 13 MAIN MENU SUB MENU 3RD MENU 4TH MENU COLOR CONTRAST 0~60 (30) BRIGHTNESS 0~60 (30) COLOR R 0~1023 (512) G 0~1023 (512) B 0~1023 (512) R OFFSET 0~1023 (512) G OFFSET 0~1023 (512) B OFFSET 0~1023 (512) 0~60 (30) SATURATION 0~60 (30) SHARPNESS 0~30 (0)
  • Page 14 MAIN MENU SUB MENU 3RD MENU 4TH MENU SETUP FACTORY RESET* OFF* KEY LOCK OFF* POWER SAVE DHCP* IP MODE STATIC SET STATIC IP IP ADDRESS 0.0.0.0.~ 255.255.255.255* SUBNET MASK 0.0.0.0.~ 255.255.255.255* DEF.GETWAY 0.0.0.0.~ 255.255.255.255* FREERUN BLACK BLUE* COLOR INFORMATION INPUT OUTPUT REVISION IP ADDRESS...

  • Page 15: Ir Cable Pin Assignment

    The FACTORY RESET option in the OSD menu will only reset part of settings. For a complete reset of the system, please use the reset button on the remote control. 192.168.0.1 (Default setting). 255.255.255.0 (Default setting). 192.168.0.254 (Default setting). Items in BOLD with an asterisk (*) are the Factory default settings. Items in brackets are the default values for those settings.

  • Page 16: Rs-232 Protocols

    6.6 RS-232 Protocols SCALER REMOTE CONTROL Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION S POWER 0/1 0=OFF 1=ON R POWER Reports the numeric equivalent for POWER setting (as above) S SOURCE 1~8 1=HDMI 1...
  • Page 17 COMMAND DESCRIPTION S OUTPUT 0~21* 0=640×480 11=1600×1200 1=800×600 12=920×1080 2=1024×768 13=1920×1200 3=1280×768 14=480p 4=1360×768 15=720p6@0 5=1280×720 16=1080i@60 6=1280×800 17=1080p@60 7=1280×1024 18=576p 8=1440×900 19=720p@50 9=1400×1050 20=1080i@50 10=1680×1050 21=1080p@50 R OUTPUT Reports the numerical equivalent for OUTPUT setting (as above) S SIZE 0~6 0=OVERSCAN 4=LETTER BOX 1=FULL...
  • Page 18 COMMAND DESCRIPTION R BRIGHTNESS Reports the numerical equivalent for the BRIGHTNESS setting S HUE 0~60 Sets the numerical equivalent for the HUE setting (0~60) R HUE Reports the numerical equivalent for the HUE setting S SATURATION 0~60 Sets the numerical equivalent for the SATURATION setting (0~60) R SATURATION Reports the numerical equivalent for the...
  • Page 19 COMMAND DESCRIPTION R KEY LOCK Reports the numeric equivalent for KEY LOCK setting (as above) S FREERUNCOLOR 0/1 0=BLACK 1=BLUE R FREERUNCOLOR Reports the numerical equivalent for the free run color setting (as above) S RESET 1 Sets the numerical equivalent for RESET setting (as left) PORT 0~8 LAST MEMORY...

  • Page 20: Telnet Control

    6.8 Telnet Control Before attempting to use the Telnet control, ensure that both the Scaler (via the LAN port) and the PC/Laptop or control system being used are connected to the same active network. To access the Telnet control in Windows 7, click on the 'Start' menu and type 'cmd' into the Search field then press Enter (see below for reference).
  • Page 21 Type '?' to list all the available commands (see below for reference). Note: All commands will not be executed unless followed by a carriage return. Commands are case-insensitive.

  • Page 22: Webgui Control

    6.9 WebGUI Control On a PC/Laptop that is connected to same active network as the Scaler, open a web browser and type device's IP address on the web address entry bar. The browser will bring up the control page of the Scaler (see below for reference).

  • Page 23: Connection Diagram

    7. CONNECTION DIAGRAM PCs/Laptops VGA and Analog Stereo Inputs DVD Player AV Receiver Component Video and Analog Stereo Inputs Coaxial Analog Smartphone Digital Stereo or Tablet Audio Audio Device Output Output Modem RS-232 Equipped or Router PC or Control RS-232 System IR IN INPUT...

  • Page 24: Specifications

    8. SPECIFICATIONS 8.1 Technical Specification Input Ports 3×HDMI, 3×VGA (15-pin D-sub), 1×Component Video, 1×Composite Video, 6×3.5mm Stereo Audio, 4×RCA Stereo Audio, 1×IR Extender (3.5mm), 1×RS-232 (9-pin D-sub), 1×IP Control (RJ45), 1×USB (Service) Output Ports 2×HDMI, 1×VGA (15-pin D-sub), 1×Coaxial Audio, 1×3.5mm Stereo Audio Input Resolution Up to 1080p/UXGA...

  • Page 25: Input Resolution

    8.2 Input Resolution RESOLUTION YCbCr/YPbPr HDMI NTSC/PAL  480i/576i   480p/576p   720p@50/60   1080i@50/60   1080p@50/60   VGA@60/72/75   SVGA@56/60/72/75   XGA@60/70/75   SXGA@60/75   UXGA@60   1280×800@60  ...

  • Page 26: Output Resolution

    8.3 Output Resolution RESOLUTION PC/HD HDMI 480p/576p  720p@50/60  1080i@50/60  1080p@50/60  VGA@60   SVGA@60   XGA@60   SXGA@60   UXGA@60   1280×768@60   1280×800@60   1360×768@60   1400×1050@60  ...

  • Page 27: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM COMP Component Video Composite Video Red Green Blue Video Graphics Array UXGA Ultra Extended Graphics Array WUXGA Widescreen Ultra Extended Graphics Array...
  • Page 28 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CSC5500...
