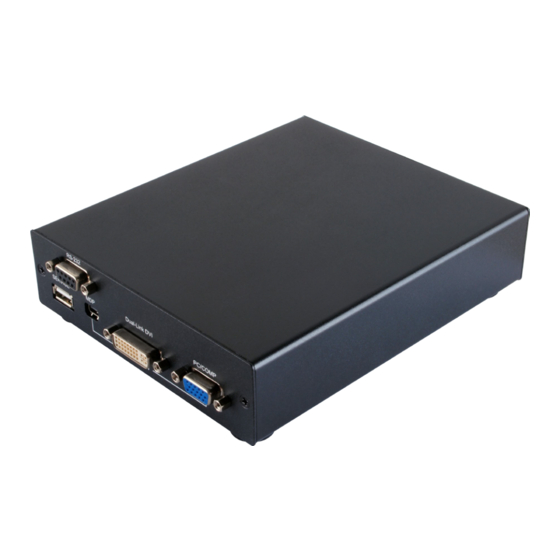

CYP CS-802D Operation Manual

CYP CS-802D Operation Manual

Mdp/dvi-dl/vga to hdmi scaler
Hide thumbs Also See for CS-802D:

Advertisement

Quick Links

CS-802D
mDP/DVI-DL/VGA to HDMI Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-802D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP CS-802D

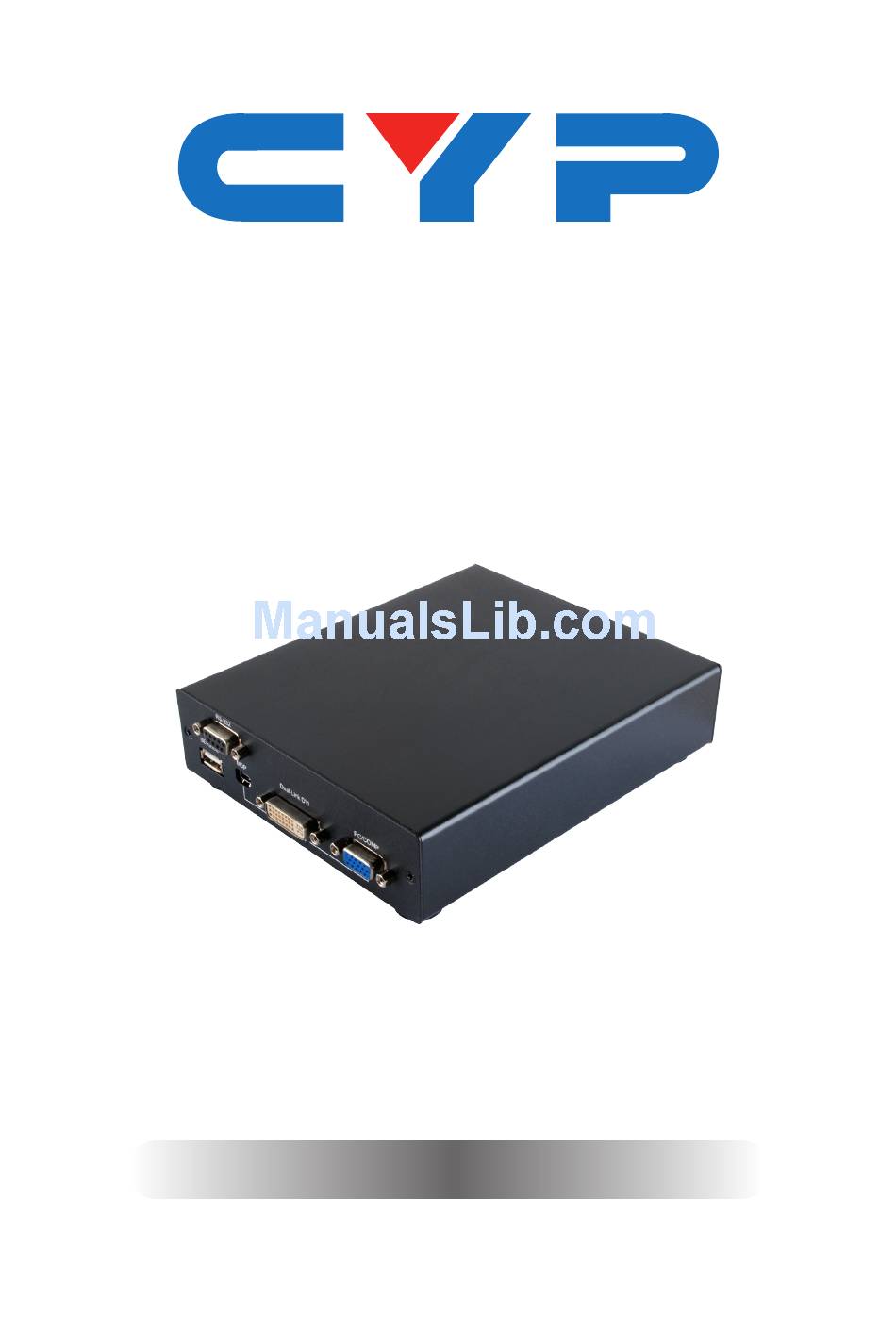

  • Page 1 CS-802D mDP/DVI-DL/VGA to HDMI Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Revision History

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............1 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 6.3 Remote Control ......... 4 6.4 OSD Menu ..........5 6.5 RS-232 Protocol ..........
  • Page 6: Introduction

    1. INTRODUCTION This HDMI Scaler can switch and convert Dual-link DVI, Mini DisplayPort and VGA/Component Video inputs to an HDMI output, along with their associated audio signals. With the ability to scale a wide range of resolutions, the operation of all features can be easily handled through on-panel controls, IR remote control, or by RS-232 protocol.
  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL AUDIO HDMI OUT POWER DC 5V MENU/ ENTER OPTICAL AUDIO 720P MENU/ENTER: Press this button to ENTER the On-screen Display (OSD) menu. Press again to confirm the selection. −/IN: When in the OSD menu, press this button repeatedly to move down through the menu.
  • Page 8: Rear Panel

    IR WINDOW: Receives the IR signal from the supplied IR Remote only. DC 5V & POWER LED: Connect the supplied 5V DC power supply to the unit and plug the power supply to AC wall outlet. Once the system turns on the LED will turn RED. 6.2 Rear Panel RS232 Dual-Link DVI...
  • Page 9: Remote Control

    6.3 Remote Control POWER: Press to turn the system ON/OFF. COMP VIDEO IN VIDEO IN: Press the required AUDIO OPTICAL MUTE key to directly select the video AUDIO IN EXIT MENU source (DVI/MDP/PC/COMP). ENTER AUDIO IN: Press the required INFO OUTPUT key to directly select the audio source (AUDIO/OPTICAL/MDP)
  • Page 10: Osd Menu

    6.4 OSD Menu LEVEL 1 LEVEL 2 LEVEL 3 Input Video COMP Exit Input Audio Audio Optical Mute Exit Output Resolution 720×480P 1280×720P 1920×1080P 640×480 (VGA) 800×600 (SVGA) 1024×768 (XGA) 1280×1024 (SXGA) 1600×1200 (UXGA) 1920×1200 (WUXGA) 1280×800 (WXGA) By Native Exit Misc.
  • Page 11: Rs-232 Protocol

    LEVEL 1 LEVEL 2 LEVEL 3 Misc. Setup (cont.) Info. OSD Mode Exit About CS-802D FW Ver. Factory Reset System Reset Exit Exit 6.5 RS-232 Protocol UNIT REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 19200bps Data Bits: 8 Parity: None...
  • Page 12: Rs-232 And Telnet Commands

    6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION POWER ? Power Status POWER ON Power On POWER OFF Power OFF VIDEO ? Video Input Source Video Input in DVI Video Input in MDP Video Input in PC COMP Video Input in Component AUDIO ? Audio Input Source AUDIO...
  • Page 13 COMMAND DESCRIPTION UXGA Output in UXGA (1600×1200) WUXGA Output in WUXGA (1920×1200) WXGA Output in WUXGA (1280×800) NATIVE Output by Native EDID ? EDID Status EDID INT EDID By Internal EDID EXT EDID By External STATE ? Video Input Signal Status VERSION ? Display Firmware Version FEEDBACK ?
  • Page 14: Connection Diagram

    7. CONNECTION DIAGRAM Laptop Dual-link DVI Input VGA Input Mini DisplayPort Input Analog Audio Input (3.5mm) RS-232 RS232 Dual-Link DVI PC/COMP SERVICE Digital Audio Power OPTICAL AUDIO HDMI OUT Input (Optical) POWER Supply DC 5V MENU/ ENTER OPTICAL AUDIO 720P Digital Audio Analog Audio HDMI Output...
  • Page 15: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications DP Video Bandwidth 2.7Gbps & 2.7Gbps/Lane Input Ports 1×Mini DisplayPort 1×Dual-link DVI 1×VGA (15-pin D-sub) 1×Digital Audio (Optical/TOSLINK) 1×Analog Audio (3.5mm) Output Ports 1×HDMI 1×Optical Audio (TOSLINK) 1×Stereo Audio (3.5mm) Control Interfaces 1×RS-232 (9-pin D-sub) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
  • Page 16: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) 640×350@85    640×400@85    720×400@85    640×480@60/72/75/85     800×600@56/60/72/75/85/120 (RB)     848×480@60    1024×768 @60/75/85/120 (RB)   ...
  • Page 17: Audio Specifications

    Input Output Supported Resolutions (Hz) 2560×1600@60 (RB)   480i  480p   576i  576p  720p@24/25/30/50 /60   1080i@50/60  1080p@24/30/50/60   Note: When output timing is set to “By Native” yet the timing does not match the built-in support timing,output timing will set to default at 1280×720p automatically. 8.3 Audio Specifications Input Output Output Frequency Terminal Terminal Level THD+N Response Crosstalk...
  • Page 18: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM DisplayPort Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface LPCM Linear Pulse-Code Modulation On-Screen Display Personal Computer Pulse-Code Modulation S/PDIF Sony/Philips Digital Interface Format Universal Serial Bus Video Graphics Array (640×480@60Hz) WUXGA Wide Ultra Extended Graphics Array...
