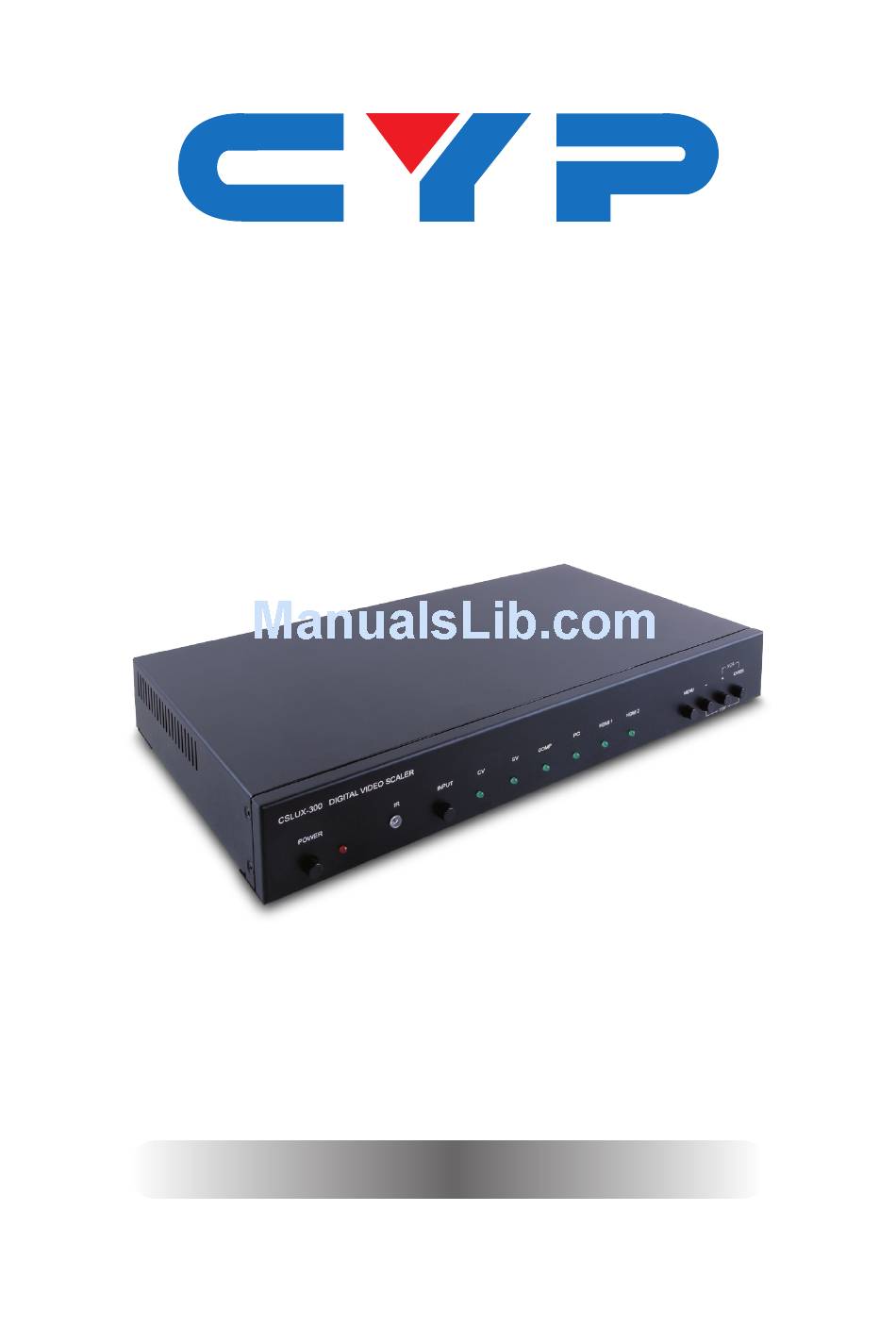

  • Page 1 CSLUX-300 Multi-Format to HDMI Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Revision History

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 OSD Menu .........6 6.5 RS-232 Pin Assignment .....9 6.6 RS-232 Commands ......9...

  • Page 6: Introduction

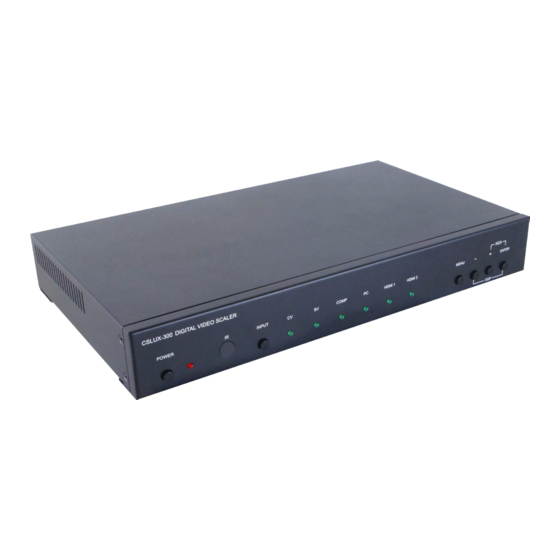

    1. INTRODUCTION This unit is an advanced HDMI, VGA, Composite Video, S-Video, and Component Video switcher/scaler. This device can scale and switch input sources and display them to its HDMI and PC (VGA)/ HD (Component Video) outputs simultaneously, with their associated audio signals, at a wide range of output resolutions up to 1080p or WUXGA (RB).

  • Page 7: Features

    5. FEATURES • Supports HDMI, Composite Video, S-Video, and VGA/Component Video inputs • Supports HDMI and PC/HD (with adaptor) outputs • Supports analog stereo and optical digital inputs • Supports optical digital output, analog stereo output, or embedding to HDMI output •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CSLUX-300 DIGITAL VIDEO SCALER POWER INPUT COMP HDMI 1 HDMI 2 MENU ENTER 720P POWER Button & LED: Press this button to switch the device ON or to put the device into STANDBY mode. When the device is connected to an active power supply, the LED will illuminate and the device will switch ON automatically.

  • Page 9: Rear Panel

    6.2 Rear Panel RS232 OUTPUT INPUT OPTICAL OPTICAL SERVICE 2 DC 5V PC/HD HDMI HDMI 1 HDMI 2 Cr/Pr Cb/Pb HDMI OUTPUT: Connect to an HDMI display or amplifier for video and/or audio output. PC/HD OUTPUT: Connect to a monitor/display for video output. For HD (Component) output, use the supplied D-sub 15-pin to 3 RCA adaptor cable for HD resolutions from 480p~1080p.

  • Page 10: Remote Control

    6.3 Remote Control INPUT POWER POWER: Press this button to switch the device ON or to put the device into COMP STANDBY mode. HDMI 1 HDMI 2 INPUT: Press to repeatedly select the required input. An LED will illuminate to indicate the currently selected source.

  • Page 11: Osd Menu

    6.4 OSD Menu MAIN MENU 1ST LEVEL 2ND LEVEL DISPLAY OUTPUT 640×480@60 800×600@60 1024×768@60 1280×768@60 1360×768@60 1280×720@60 1280×800@60 1280×1024@60 1440×900@60 1400×1050@60 1680×1050@60 1600×1200@60 1920×1080@60 1920×1200@60 720×480P@60 1280×720P@60 1920×1080I@60 1920×1080P@60 720×576P@50 1280×720P@50 1920×1080I@50 1920×1080P@50 SIZE OVER SCAN FULL BEST FIT PAN SCAN LETTER BOX...
  • Page 12 MAIN MENU 1ST LEVEL 2ND LEVEL DISPLAY (cont.) SIZE UNDER 2 UNDER 1 MODE INFO INFO AUTO SETUP H_POSITION V_POSITION PHASE CLOCK WXGA/XGA RESET COLOR COLOR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~30 MIDDLE HIGH...
  • Page 13 MAIN MENU 1ST LEVEL 2ND LEVEL AUDIO VOLUME 0~100 DELAY 40 ms 110 ms 150 ms SOUND MUTE ANALOG AUDIO SELECT S/PDIF SETUP FACTORY RESET KEY LOCK POWER SAVE INFORMATION INPUT OUTPUT REVISION Note: Default settings are marked in Bold. (1) SIZE: This function is only supported on VIDEO input. (2) PC: This function is only supported on PC input.

  • Page 14: Rs-232 Pin Assignment

    6.5 RS-232 Pin Assignment SCALER REMOTE CONTROL Assignment Assignment ► ◄ Baud Rate: 9600bps Data Bits: 8 Parity: None Flow Control: None Stop Bits: 1 6.6 RS-232 Commands COMMAND DESCRIPTION S SOURCE 0~6 0=SDI 4=VIDEO 1=HDMI1 5=S-VIDEO 2=HDMI2 6=PC 3=YPbPr R SOURCE Reports the numerical equivalent for SOURCE setting (as above)
  • Page 15 COMMAND DESCRIPTION S OUTPUT 1~25 1=640×480 12=1600×1200 2=800×600 13=1920×1080 3=1024×768 16=1920×1200 4=1280×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900 23=720p@50 10=1400×1050 24=1080p@50 11=1680×1050 25=1080i@50 R OUTPUT Reports the numerical equivalent for OUTPUT setting (as above) S SIZE 0~6 0=OVERSCAN 4=LETTER BOX 1=FULL...
  • Page 16 COMMAND DESCRIPTION R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for SATURATION setting (as left) R SATURATION Reports the numerical equivalent for SATURATION setting S SHARPNESS 0~30 Setups the numerical equivalent for SHARPNESS setting (as left) R SHARPNESS Reports the numerical equivalent for...
  • Page 17 COMMAND DESCRIPTION S POWER 0/1 0=OFF 1=ON R POWER Reports the numeric equivalent for POWER setting (as above) Note: RS-232 commands will be not executed unless followed with a carriage return and LF. Commands are case-insensitive. • Audio Delay is only supported on Analog Stereo output. • When the HDMI input is encoded with HDCP, no image will be output from the PC/HD output.

  • Page 18: Connection Diagram

    7. CONNECTION DIAGRAM Game Console Satellite Receiver HDMI HDMI & Digital Input Audio Inputs Blu-ray/DVD Player RS-232 CV & Analog Audio Inputs Set-top Box RS-232 Control System Power OUTPUT RS232 INPUT OPTICAL OPTICAL Supply SERVICE 2 DC 5V PC/HD HDMI HDMI 1 HDMI 2 Cr/Pr...

  • Page 19: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 MHz/10.2 Gbps Input Ports 2×HDMI, 1×VGA, 1×Component Video, 1×Composite Video, 1×S-Video, 1×TOSLINK (S/PDIF), 6×RCA (Analog Stereo), 1×3.5mm (Analog Stereo) Output Ports 1×HDMI, 1×VGA, 1×TOSLINK (S/PDIF), 1×3.5mm (Analog Stereo) Control Port 1×RS-232 Service Ports 1×3.5mm, 1×USB Power Supply 5V/3A DC (US/EU standards, CE/FCC/UL...

  • Page 20: Supported Input Resolutions

    8.2 Supported Input Resolutions Resolution (Hz) CV/SV COMP HDMI NTSC/PAL  480i/576i   480p/576p   720p@50/60   1080i@50/60   1080p@50/60   VGA@60/72/75   SVGA@56/60/72/75   XGA@60/70/75   SXGA@60/75   UXGA@60  ...

  • Page 21: Supported Output Resolutions

    8.3 Supported Output Resolutions Resolution (Hz) HDMI 480p/576p   720p@50/60   1080i@50/60   1080p@50/60   VGA@60   SVGA@60   XGA@60   SXGA@60   UXGA@60   1280×768@60   1280×800@60   1360×768@60 ...

  • Page 22: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM COMP Component Video Composite Video Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared Noise Reduction NTSC National Television System Committee On-screen Display (Menu) Phase Alternating Line Red Green Blue S-Video Universal Serial Bus...
  • Page 24 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw 20140402 MPM-CSLUX300...
