Summary of Contents for CYP CSC-200RS

  • Page 3 Video Processors. Please visit www.cypress.com.tw to learn more details about these products. This manual includes operation information on the CSC-200RS model. Please read this to become familiar with the CSC-200RS. and keep the manual for possible reference in the future.

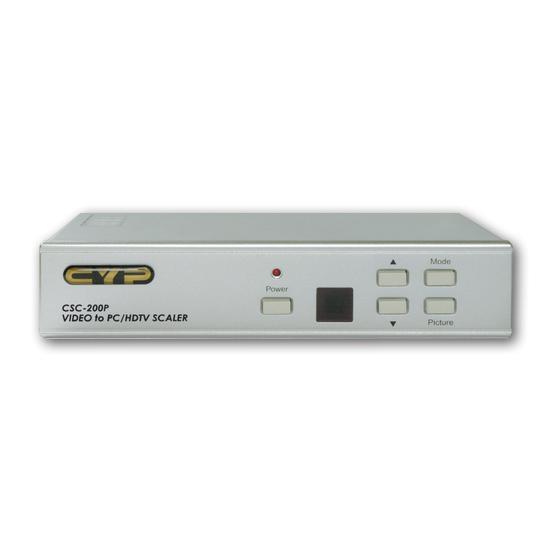

  • Page 4 (4). Connecting the hardware The video scaler is controlled via front panel push buttons or remote control and its status is indicated by OSD display. The front panel controls are shown below. Front Panel Mode  Power CSC-200P VIDEO to PC/HDTV SCALER Picture ...
  • Page 5 (4). Connecting the hardware Front Panel 2. Picture: Press the button to toggle through picture adjust parameters as follows: ContrastBright  Color Tint Sharpness Contrast Contrast: Press  or  to adjust contrast level. The range of adjustment is 0~63. Factory default value is 58.
  • Page 6 (4). Connecting the hardware Rear Panel RS 232 INPUT S-VIDEO VIDEO DC 12V RGB/YPbPr PC IN OUTPUT Connecting the Video inputs The video scaler can accept a composite video, an S-Video or a YCbCr input signal for scaling, as well as a computer signal input that is passed through the unit when the PC in (Bypass) is selected.
  • Page 7: Connecting And Installation

    (5). Connecting and Installation Control In RS 232 INPUT S-VIDEO VIDEO DC 12V RGB/YPbPr PC IN OUTPUT DC Adaptor HDTV...
  • Page 8 (6). Remote Control 1. Power: Power ON/OFF button. 2. Display: Press the button to enable or disable the on screen display of the resolution information. 3. C-Video: Press the button to select composite video as input source. 4. S-Video: Press the button to select S-Video as input source. 5.
  • Page 9 If information for this control method is required,beyond the scope of the instructions provided in this section, please contact Cypress Technology Support, A disk is provided with the CSC-200RS containing a sample Windows Control Panel that permits remote control of the unit from a PC via RS-232.
  • Page 10: Command Response

    (7). RS-232 Control of the CSC-200RS Video Scaler * Command / Response codes of RS-232 transmission: Command Response Description "[POWER1]" "[POWER1]" power on(normal) "[POWER0]" "[POWER0]" power off(standby) "[IN0]" "[IN0] Composite video input "[IN1]" "[IN1]" S video input "[IN2]" "[IN2]" Y PB PR/Y CB CR input "[IN3]"...
  • Page 11: Specifications

    (8). Specifications Computer input (Loop thru) RGB with HV Sync Max computer input resolution 1600 x 1200 Computer input connector type HD 15 Female Computer input signal level RGB @ 0.7V, H&V Sync @ TTL Composite Video @ 1 Vp-p 75 ohm S-Video @ 1 Vp-p 75 ohm Video inputs YCbCr Y : 1 Vpp 75 ohm...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
