Summary of Contents for CYP CS-801H

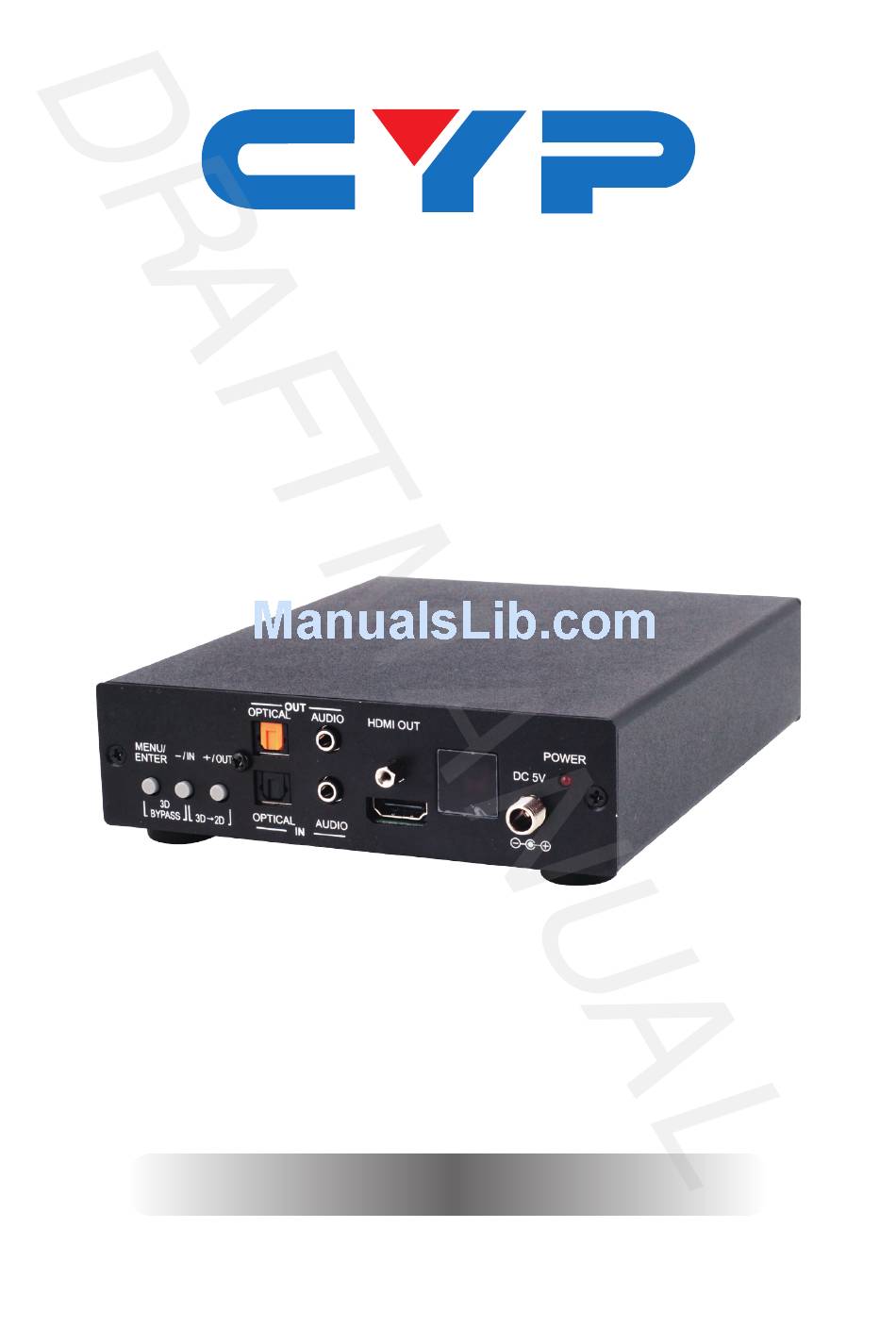

- Page 1 CS-801H Ultra High Resolution Scaler with 3D Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........4 7.OSD Menu and Function List ....5 8. -
Page 6: Introduction
1. INTRODUCTION This high performance video processor which allows 3D movies to be watched on a 2D display. Besides 3D manipulation on the HDMI channel, the device can scale and switch HDMI, DisplayPort and PC inputs to its HDMI output, with their associated audio signal processed synchronously. -
Page 7: Operation Controls And Functions

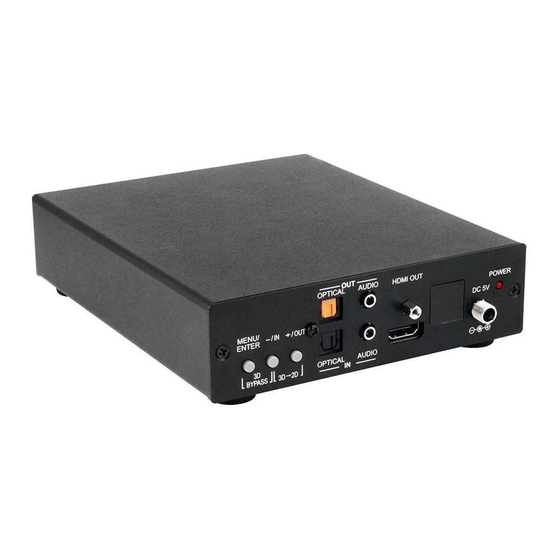

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL AUDIO HDMI OUT POWER DC 5V MENU/ ENTER OPTICAL AUDIO BYPASS → MENU/ENTER Press this button to ENTER the OSD menu. Press again to confirm the selection. -/IN a. “-“: When in OSD page, sequentially press this button to move down the OSD selection. - Page 8 OPTICAL OUT This slot is where you connect the amplifier with OPTICAL cable and from amplifier to speaker. AUDIO L/R OUT This slot is where you connect the speaker or amplifier with audio phone jack to the display. OPTICAL IN This slot is where you connect the input OPTICAL audio source.
-
Page 9: Rear Panel
6.2 Rear Panel RS232 HDMI 1 HDMI 2 SERVICE DisplayPort RS232 This slot is to connect with D-Sub 9pin cable from the PC/NB device for RS-232 control. SERVICE This slot is to connect with USB cable for manufacturers’ firmware update only. DisplayPort IN This slot is where you connect the DisplayPort source output for DisplayPort signal sending. -
Page 10: Osd Menu And Function List
7.OSD MENU AND FUNCTION LIST Input Video COMP HDMI 1 HDMI 2 Exit Input Audio AUDIO Optical HDMI/DP Mute Exit Output Resolution 720x480P 1280x720P 1920x1080P 640x480 800x600 1024x768 1280x1024 1600x1200 1920x1200 By Native 3D Bypass Exit Output Format 3D→2D 3D Bypass Exit... -
Page 11: Remote Control
Main Menu 2nd Layer 3rd Layer Miscellany EDID Mode Internal / External / Exit Info. OSD Mode Off / On / Exit About CS-801H FW Ver. Factory Reset System Reset Exit Exit 8. REMOTE CONTROL VIDEO IN Press to select HDMI 1/HDMI... -
Page 12: Rs-232 Protocols
3D→2D Press to switch from 3D to 2D. 3D Bypass Press to switch to 3D bypass. Native Press to switch to Native resolution. 8.1 RS-232 Protocols 8.2 RS-232 Commands... -
Page 13: Connection And Installation
9. CONNECTION AND INSTALLATION HD TV Amplifier D-Sub15pin Optical HDMI RS232 OPTICAL AUDIO HDMI OUT HDMI 1 HDMI 2 POWER DC 5V MENU/ ENTER SERVICE DisplayPort OPTICAL AUDIO BYPASS → Optical 3.5Ø audio HDMI HDMI Blu-ray Dell PC... -
Page 14: Specifications
10. SPECIFICATIONS Frequency bandwidth 2.25Gbps (single link) DP Input Frequency 2.7Gbps & 1.62Gbps/Lane Bandwidth Input Port 2 x HDMI (Female type), 1 x DisplayPort, 1 x VGA Audio Input Port 1 x L/R, 1xOptical Output Port 1 x HDMI, 1 x L/R, 1 x Optical Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/ UL certified) -
Page 15: Pc, Hdmi, Dp Input Timing
10.1 PC, HDMI, DP Input Timing COMP Input 2D Input Resolution HDMI Resolution 640*400(@85) ˇ ˇ ˇ 480i, 576i VGA640*480(@60/75/85Hz) ˇ ˇ ˇ 480p, 576p SVGA800*600(@60/75/85Hz) ˇ ˇ ˇ 720p/50, 60 848*480@60Hz ˇ 1080i/50, 60 XGA1024*768(@60/75/85Hz) ˇ ˇ ˇ 1080p/24, 30, 50, 60 XGA+1152*864@75 /85 ˇ... -
Page 16: Output Resolution
720P ˇ ˇ 1080P ˇ ˇ 2560*1600@RB ˇ 3D Input Resolution HDMI 1080p@24Hz Frame packing ˇ 1080p@24Hz Top-and-Bottom ˇ 1080p@24Hz Side-by-Side ˇ 1080i@50/60Hz Side-by-Side ˇ 720p@50/60Hz Side-by-Side ˇ 720p@50 / 60Hz Frame packing ˇ 720p@50 /60Hz Top-and-Bottom ˇ 10.2 Output Resolution HDMI 3D to 2D and 2D to 2D output Resolution@60Hz 640*480 800*600... -
Page 17: Acronyms
11. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
