Eurotech ReliaGATE 10-20 Quick Start

What's in the Development Kit?
This development kit contains the following:
•
ReliaGate 10-20-01
Yocto Linux
o
Everyware™ Software Framework (ESF) v3.0
o
GPS
o
Wi-Fi (IEEE 802.11)
o
Micro-SD Connector
o
•
3-in-1 Antenna (Cell, Wi-Fi, GPS)
•
Null modem serial cable
•
12 position terminal block plug
•
Ethernet crossover cable
•
60 watt 12 VDC power supply
•
AC power cords for USA, Europe, and the UK
•
DC Input Adapter Cable
What Do I Need to Provide?
•
Internet access (Ethernet – DHCP)
•
Development PC with Internet access
•
ReliaCELL 10-20 for cellular connectivity
(optional & sold separately)
110129-00021
ReliaGATE 10-20 Development Kit

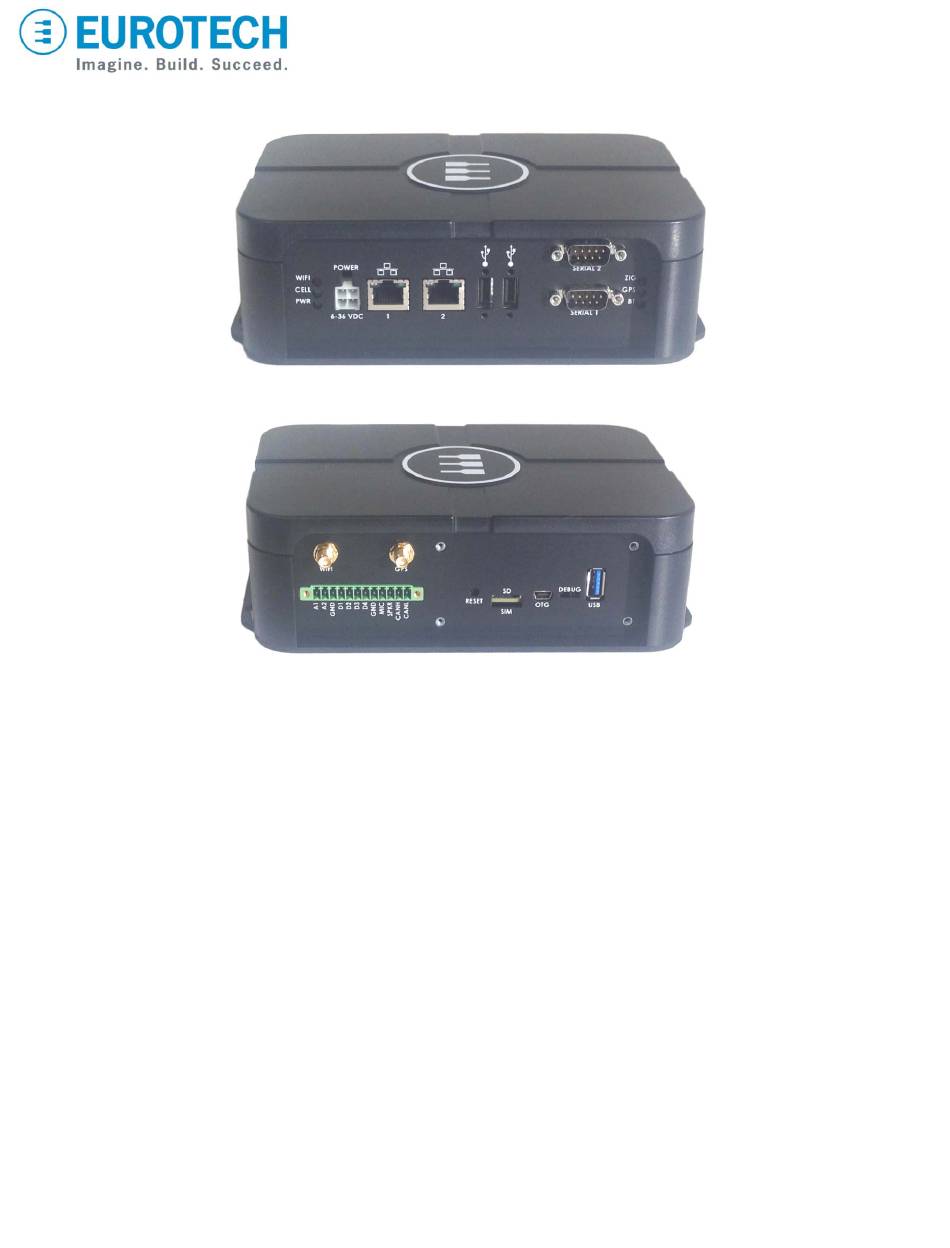

FIGURE 1: FRONT
FIGURE 2: BACK
Cellular Options
The ReliaGATE 10-20 mates with the ReliaCELL 10-20 for
support of GSM and CDMA based carriers. Contact your
Eurotech sales representative for part numbers.
•
Four M2.5 mounting holes and USB connector on the
back of the unit.
•
Cellular cable on the 3-in-1 antenna attaches to the
ReliaCELL 10-20 module.
Setting Up the Development Kit
Hardware Connections
To prepare your ReliaGATE 10-20, complete the following
steps:
1. Connect the 3-in-1 antenna provided with your kit as
follows:
Cable labeled "2.4-2.5 / 4.9-6 GHz" to Wi-Fi
o
Cable labeled "800-1250 / 1650-2700 MHz" to
o
ReliaCELL 10-20 cellular port (optional)
Cable labeled 3V/5V GPS to GPS (optional)
o
2. Connect the Ethernet port to Ethernet network with
Internet access (optional).
Quick Start
