SmartNode 5550 & 4150 Series User Manual
172.16.1.99(if-ip)[WAN]#ping <IP Address of the host>
If the WAN address is not set to DHCP, to ping a device outside your local
Note
LAN you must first configure the default gateway. (For information on con-
figuring the default gateway, refer to section "Set IP addresses" in the Trinity
Software Configuration Guide.)
IP Routing is disabled on SN4150/2ETH models. See Software license
Note
options to enable it.
Connecting both Ethernet ports to the same switch will only work if the
Note
switch has separate ARP tables for each connection.
Go to section "Loading the Configuration (optional)"

Connecting the SN4150 to a laptop PC

First, the SmartNode device must be connected to the main power supply with the power cable. Wait until the
Power LED stops blinking and stays lit constantly. Now the SmartNode device is ready.
CAUTION
The SmartNode device has a fixed IP and a DHCP client setup to simplify
Note
configuration. The Ethernet port is equipped with Auto-MDX so you can
use a straight-through cable for host or hub/switch connection.
There are two options for configuring the SmartNode device
• The SmartNode device is connected to a laptop PC (see
same range as the SmartNode device's IP address (for instance: PC's IP address; 192.168.1.10; mask:
255.255.255.0).
The SmartNode device is connected to a local area network (LAN) that has a DHCP server running which
•
assigns an IP address to the SmartNode device (see
device's IP can be determined.

Connecting the SN4150 to a laptop PC

The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to volt-
age, current, anticipated temperature, flammability, and
mechanical serviceability.

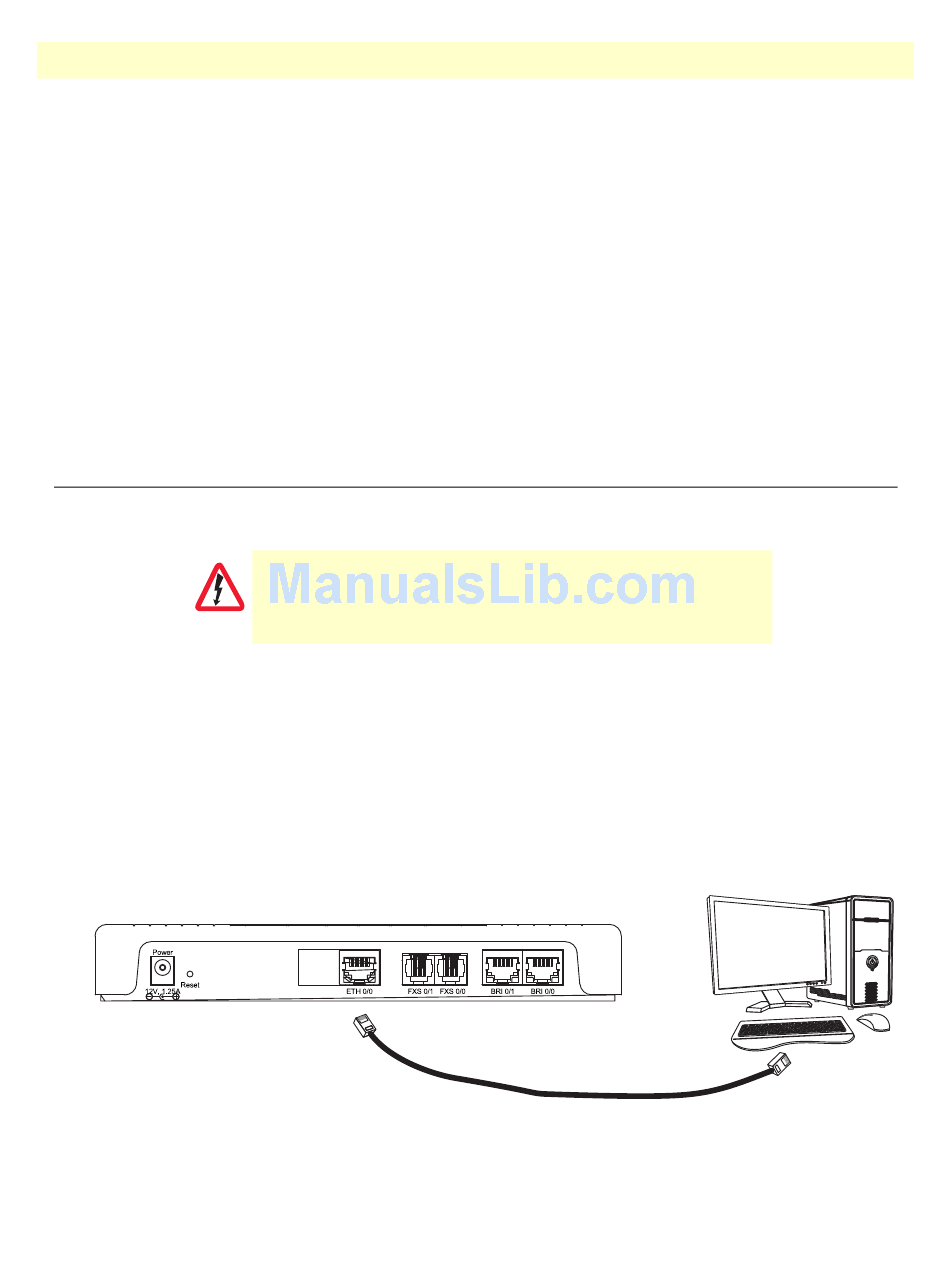

Figure 13. Connecting the SmartNode to a laptop PC
on page 45.
:
figure 13) that is configured with a fixed IP in the
figure 14). Using the SN Discovery
4 • Initial Configuration
tool, the SmartNode
