Functional Details

Components

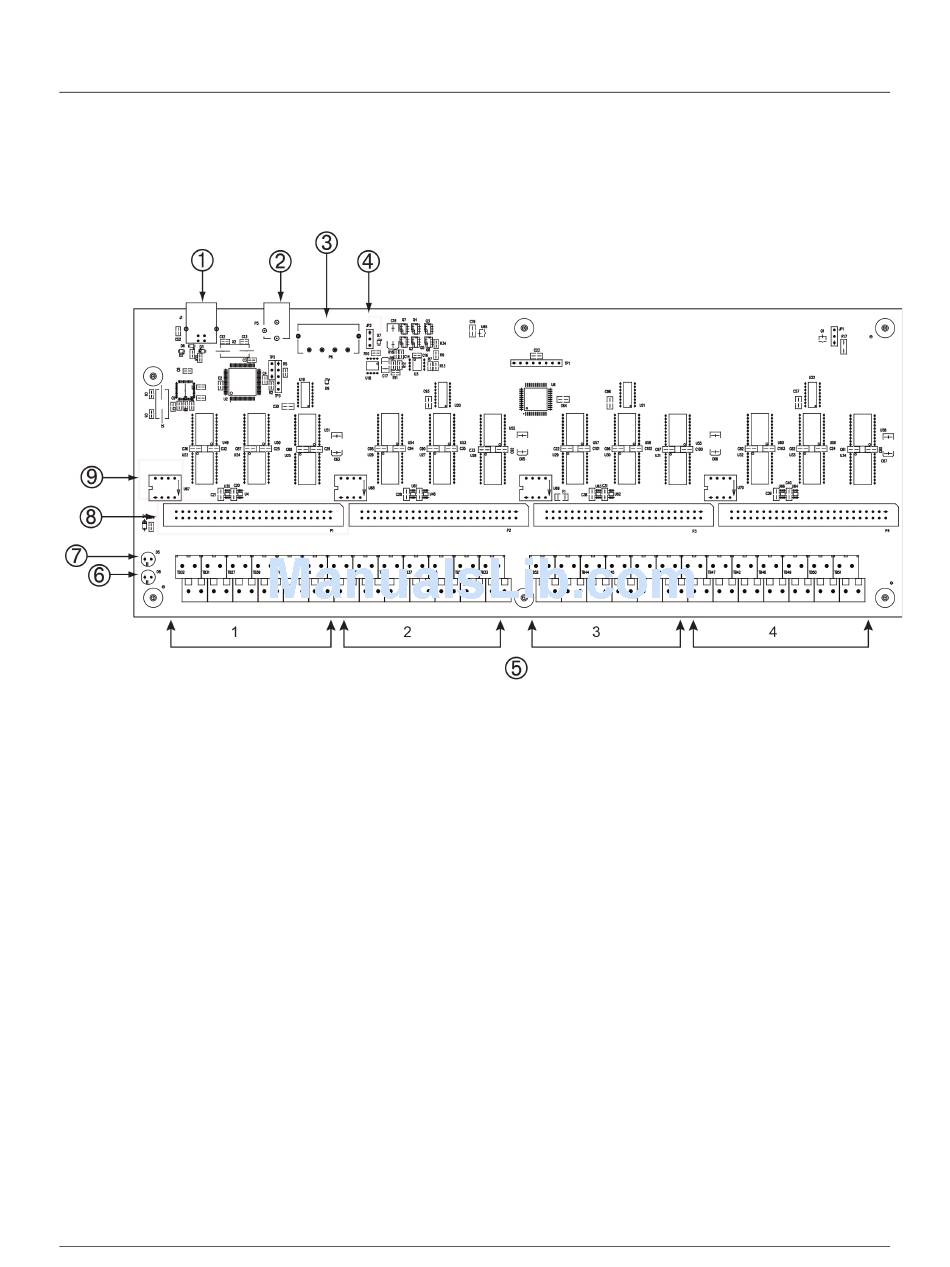

These USB-DIO96H components are shown in Figure 2.
1
2
3
4
5

USB IN connector

The USB in connector is labeled
full-speed input connector that you connect to the USB port on your computer (or USB hub connected to your
computer). This connector supports USB 1.1 and USB 2.0 devices.
Hardware revision G and later are also compatible with USB 3.0 ports. The board revision may be determined
from the part number label on the enclosure that states "193770X-01L", where X is the board revision.

External power connector

The USB-DIO96H has an external power connector labeled
Connect the
POWER IN
at full load, the USB-DIO96H draws 2.7 A from the supply.
USB IN connector
POWER IN)
External power connector (
Molex connector (P6)
Power source jumper (J2)
Ports 1 through 4
Figure 2. USB-DIO96H components
on the enclosure and
USB IN
connector to the supplied +5 V external power supply (PS-5V3AEPS). When running
6 USB
LED
PWR
7
LED
8 50-pin connectors (x4)
9 Pull-up/down DIP switches (x4)
on the board. This connector is a USB 2.0
J1
on the enclosure and
POWER IN
9
Chapter 3
on the board.
P5
