Page 3
Measurement Computing. Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our two...
Page 4
Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
Introducing the USB-DIO96H ......................1-1 Overview: USB-DIO96H features........................1-1 USB-DIO96H block diagram ......................... 1-2 Software features ............................1-2 Connecting a USB-DIO96H to your computer is easy ................... 1-3 Chapter 2 Installing the USB-DIO96H ....................... 2-1 What comes with your USB-DIO96H shipment?................... 2-1 Hardware ..................................
What you will learn from this user's guide This user's guide explains how to install, configure, and use the USB-DIO96H so that you get the most out of its digital I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources.

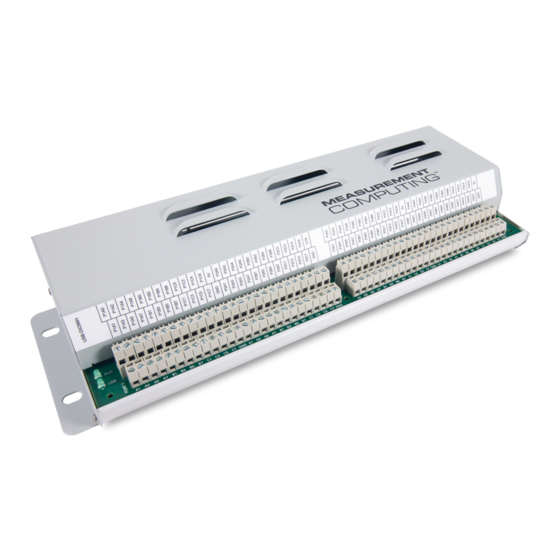

The USB-DIO96H also provides 50-pin mass termination connectors. For OEM's who wish to use the mass term connectors, the enclosure needs to be removed. The USB-DIO96H is shipped in a rugged metal enclosure that you can mount on a DIN rail or on a bench (see Figure 1-1).
Figure 1-2. USB-DIO96H functional block diagram Software features For information on the features of InstaCal and the other software included with your USB-DIO96H, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf.
The USB-DIO96H is plug-and-play. There are no jumpers to position, dual in-line package (DIP) switches to set, or interrupts to configure. You can connect the USB-DIO96H before or after you install the software, and without powering down your computer first.
Chapter 2 Installing the USB-DIO96H What comes with your USB-DIO96H shipment? As you unpack your USB-DIO96H, make sure that the following components are included. Hardware USB-DIO96H External power supply and cord (CB-PWR-9V3A) – 9 volt, 3 amp DC power supply...
Connecting the USB-DIO96H to your system To connect the USB-DIO96H to your system, connect the USB cable to a USB port on your computer or to an external USB hub that is connected to your computer. The USB cable provides communication to the USB- DIO96H.
Page 13
USB-DIO96H User's Guide Installing the USB-DIO96H If you are running Windows XP and connect the USB-DIO96H to a USB 1.1 port, a balloon displays the message " ." You can ignore this Your USB device can perform faster if you connect to a USB 2.0 port message.
Chapter 3 Functional Details Internal components These USB-DIO96H components are shown in Figure 3-1. Two (2) USB connectors Two (2) external power connectors USB LED PWR LED 12 pull-up/pull-down resistors Four (4) screw terminal banks (Port 1 through Port 4)
MCC USB Series products from a single external power supply. When running at full load, the USB-DIO96H draws 2.6 A from the supply. When using the USB- DIO96H under full load conditions, do not daisy chain power to another MCC USB Series product. Depending on your load requirements, daisy chained products may require a separate power supply.
Page 16
USB-DIO96H User's Guide Functional Details Caution! Keep the length of stripped wire at a minimum to avoid a short to the enclosure! When connecting your field wiring to the screw terminals, use the strip gage on the terminal strip, or strip to 5.5 - 7.0 mm (0.215"...
Connect up to 24 FOURTHPORT signals to the screw terminals labeled PORT 4 You can configure each digital port for either input or output. When configured for input, you can use the USB-DIO96H digital I/O terminals to detect the state of any TTL level input. Figure 3-2 shows the USB-DIO96H wired to detect the state of a switch.
USB-DIO96H connected to a computer and to the external power source. The USB-DIO96H already connected to the computer is referred to as the connected module. The USB-DIO96H you want to daisy- chain to the connected module is referred to as the new module.
Chapter 4 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Digital input / output Table 1. Digital I/O specifications Output 74ABT244A Input 74ACT373 Configuration 8 banks of 8, 8 banks of 4, programmable by bank as input or output Number of I/O Output high 2.0 volts min @ -24 mA...
USB-DIO96H User's Guide Specifications The daisy chain power output option allows multiple MCC USB Series boards with a USB hub Note 1: output port to be powered from a single external power source in a daisy chain fashion. The voltage drop between the input of one module and its daisy chain output is 0.5 V maximum.
USB-DIO96H User's Guide Specifications There is a total of 24 I/O per bank (PORTA, PORTB, PORTCH, PORTCL). These specifications Note 3: are for a power supply input voltage of 9 volts. Higher input voltages will increase the power dissipation and will further reduce the total current available from each port.
USB-DIO96H User's Guide Specifications Table 10. Screw terminal pin out Board label Signal name Board label Signal name P1A0 (FIRSTPORTA Bit 0) P3A0 (THIRDPORTA Bit 0) P1A1 (FIRSTPORTA Bit 1) P3A1 (THIRDPORTA Bit 1) P1A2 (FIRSTPORTA Bit 2) P3A2 (THIRDPORTA Bit 2)
Page 24
USB-DIO96H User's Guide Specifications Table 12. P1 pin-out Signal Name Signal Name FIRSTPORTC Bit 7 FIRSTPORTC Bit 6 FIRSTPORTC Bit 5 FIRSTPORTC Bit 4 FIRSTPORTC Bit 3 FIRSTPORTC Bit 2 FIRSTPORTC Bit 1 FIRSTPORTC Bit 0 FIRSTPORTB Bit 7 FIRSTPORTB Bit 6...
Page 25
USB-DIO96H User's Guide Specifications Table 14. P3 pin-out Signal Name Signal Name THIRDPORTC Bit 7 THIRDPORTC Bit 6 THIRDPORTC Bit 5 THIRDPORTC Bit 4 THIRDPORTC Bit 3 THIRDPORTC Bit 2 THIRDPORTC Bit 1 THIRDPORTC Bit 0 THIRDPORTB Bit 7 THIRDPORTB Bit 6...
Page 26
Middleboro, MA 02346 Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product USB-DIO96H to which this declaration relates is in conformity with the relevant provisions of the following standards or other...
