- Page 1 USB-3104 USB-based Analog Output User's Guide November 2017. Rev. 5 © Measurement Computing Corporation...
- Page 2 Other product and company names mentioned herein are trademarks or trade names of their respective companies. © 2017 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
-
Page 3: Table Of Contents
What you will learn from this user's guide ......................5 Conventions in this user's guide ......................... 5 Where to find more information ......................... 5 Chapter 1 Introducing the USB-3104 ........................6 Overview: USB-3104 features ..........................6 USB-3104 block diagram ........................... 7 Chapter 2 Installing the USB-3104 ........................ - Page 4 User's Guide EU Declaration of Conformity ......................21...
-
Page 5: Preface
Preface About this User's Guide What you will learn from this user's guide This user's guide describes the Measurement Computing USB-3104 data acquisition device and lists device specifications. Conventions in this user's guide For more information Text presented in a box signifies additional information and helpful hints related to the subject matter you are reading. -
Page 6: Introducing The Usb-3104

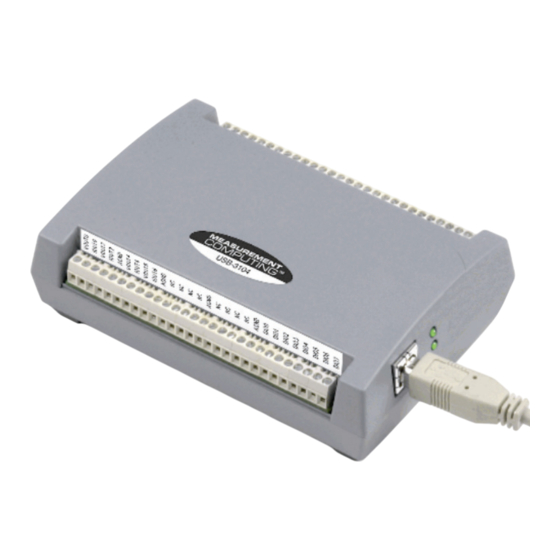

Overview: USB-3104 features This user's guide contains all of the information you need to connect the USB-3104 to your computer and to the signals you want to control. The USB-3104 is part of the Measurement Computing brand of USB-based data acquisition products. -
Page 7: Usb-3104 Block Diagram
User's Guide Introducing the USB-3104 USB-3104 block diagram USB-3104 functions are illustrated in the block diagram shown here. Analog Voltage Output Full-speed 8 channels (16-bit) USB 2.0 Compliant Interface 8 channels Analog Current Microcontroller Output 8 channels (16-bit) SYNCLD Event Counter... -
Page 8: Installing The Usb-3104
Installing the hardware To connect the USB-3104 to your system, connect the USB cable to an available USB port on the computer or to an external USB hub connected to the computer. Connect the other end of the USB cable to the USB connector on the device. -
Page 9: Functional Details
Status LED The Status LED indicates the communication status of the USB-3104. It flashes when data is being transferred, and is off when the USB-3104 is not communicating. This LED uses up to 10 mA of current and cannot be disabled. -
Page 10: Screw Terminal Banks
Screw terminal banks The USB-3104 has two rows of screw terminals—one row on the top edge of the housing, and one row on the bottom edge. Each row has 28 connections. Use 16 AWG to 30 AWG wire gauge when making screw terminal connections. -
Page 11: Analog Voltage Output Terminals (Vout0 To Vout7)
DIO5 54 DIO CTL DIO6 55 DGND DIO7 56 +5V Figure 5. USB-3104 signal pinout Analog voltage output terminals (VOUT0 to VOUT7) The screw terminal pins labeled are voltage output terminals (see Figure 5). The voltage VOUT0 VOUT7 output range for each channel is software-programmable for either bipolar or unipolar. The bipolar range is ±10 V, and the unipolar range is 0 to 10 V. -
Page 12: Current Test Terminal (Itest)
User's Guide Functional Details Floating Supply Floating Ext. IOUTn+1 Supply Floating Load IOUTn+2 IOUTn+2 IOUTn+2 IOUTn+2 Floating Supply Floating Ext. IOUTn+1 Supply Floating Load IOUTn+1 IOUTn+1 IOUTn+1 IOUTn+1 Floating Supply Floating Ext. IOUTn+1 Supply Floating Load IOUTn IOUTn IOUTn IOUTn Grounded Grounded External... -
Page 13: Digital I/O Terminals (Dio0 To Dio7)
User's Guide Functional Details Digital I/O terminals (DIO0 to DIO7) You can connect up to eight digital I/O lines to the screw terminals labeled (pins 21 through 28). DIO0 DIO7 You can configure each digital bit for either input or output. When you configure the digital bits for input, you can use the digital I/O terminals to detect the state of any TTL level input;... -
Page 14: Counter Terminal (Ctr)
Configure as an output (master mode) to send the internal D/A LOAD signal to the SYNCLD pin. You can use the SYNCLD pin to synchronize with a second USB-3104 and simultaneously update the DAC outputs on each device. Refer to Synchronizing multiple units below. -
Page 15: Specifications
Note 2: The USB-3104 output voltage level defaults to 0V whenever the output voltage range is reconfigured. The USB-3104 output voltage level will also default to 0V: 1) Whenever the host PC is reset, shut down or suspended. -
Page 16: Analog Current Output
The maximum differential non-linearity specification applies to the entire 0 to 50 °C temperature range of the USB-3104. This specification also accounts for the maximum errors due to the software calibration algorithm (in Calibrated mode only) and the DAC8554 digital to analog converter non-linearities. -
Page 17: Analog Output Calibration
The maximum differential non-linearity specification applies to the entire 0 to 70 °C temperature range of the USB-3104. This specification also accounts for the maximum errors due to the software calibration algorithm (in Calibrated mode only) and the DAC8554 digital to analog converter non-linearities. -
Page 18: Counter
User's Guide Specifications Input leakage current ±1.0 µA typ Input high voltage 4.0 V min, 5.5 V absolute max Input low voltage 1.0 V max, –0.5 V absolute min Output high voltage (Note 9) IOH = –2.5 mA 3.3 V min No load 3.8 V min Output low voltage (Note 10) -
Page 19: Power
30mA max Note 11: This is the total quiescent current requirement for the USB-3104 which includes up to 10 mA for the status LED. This does not include any potential loading of the digital I/O bits, +5V user terminal, ITEST, or the VOUTx/IOUTx outputs. -
Page 20: Screw Terminal Connector
User's Guide Specifications Screw terminal connector Table 16. Main connector specifications Parameter Specification Connector type Screw terminal Wire gauge range 16 AWG to 30 AWG Signal Name Signal Name VOUT0 VOUT1 IOUT0 IOUT1 VOUT2 VOUT3 IOUT2 IOUT3 AGND AGND VOUT4 VOUT5 IOUT4 IOUT5... - Page 21 October 10, 2017, Norton, Massachusetts USA Test Report Number: EMI4712.07/EMI5193.08 Measurement Computing Corporation declares under sole responsibility that the product USB-3104 is in conformity with the relevant Union Harmonization Legislation and complies with the essential requirements of the following applicable European Directives:...
- Page 22 Measurement Computing Corporation NI Hungary Kft 10 Commerce Way H-4031 Debrecen, Hátar út 1/A, Hungary Norton, Massachusetts 02766 Phone: +36 (52) 515400 (508) 946-5100 Fax: +36 (52) 515414 Fax: (508) 946-9500 http://hungary.ni.com/debrecen E-mail: info@mccdaq.com www.mccdaq.com...
