-------------- SYSTEM ANALYZER
3.2.1.- Connecting a current clamp
C-80 is a two quadrants instrument. The user does not need to concern himself with
the direction of the current clamp. If the direction of the current is unknown, the C-80
internally changes the direction so that it always measures power consumed
3.3.- Functions of the keypad

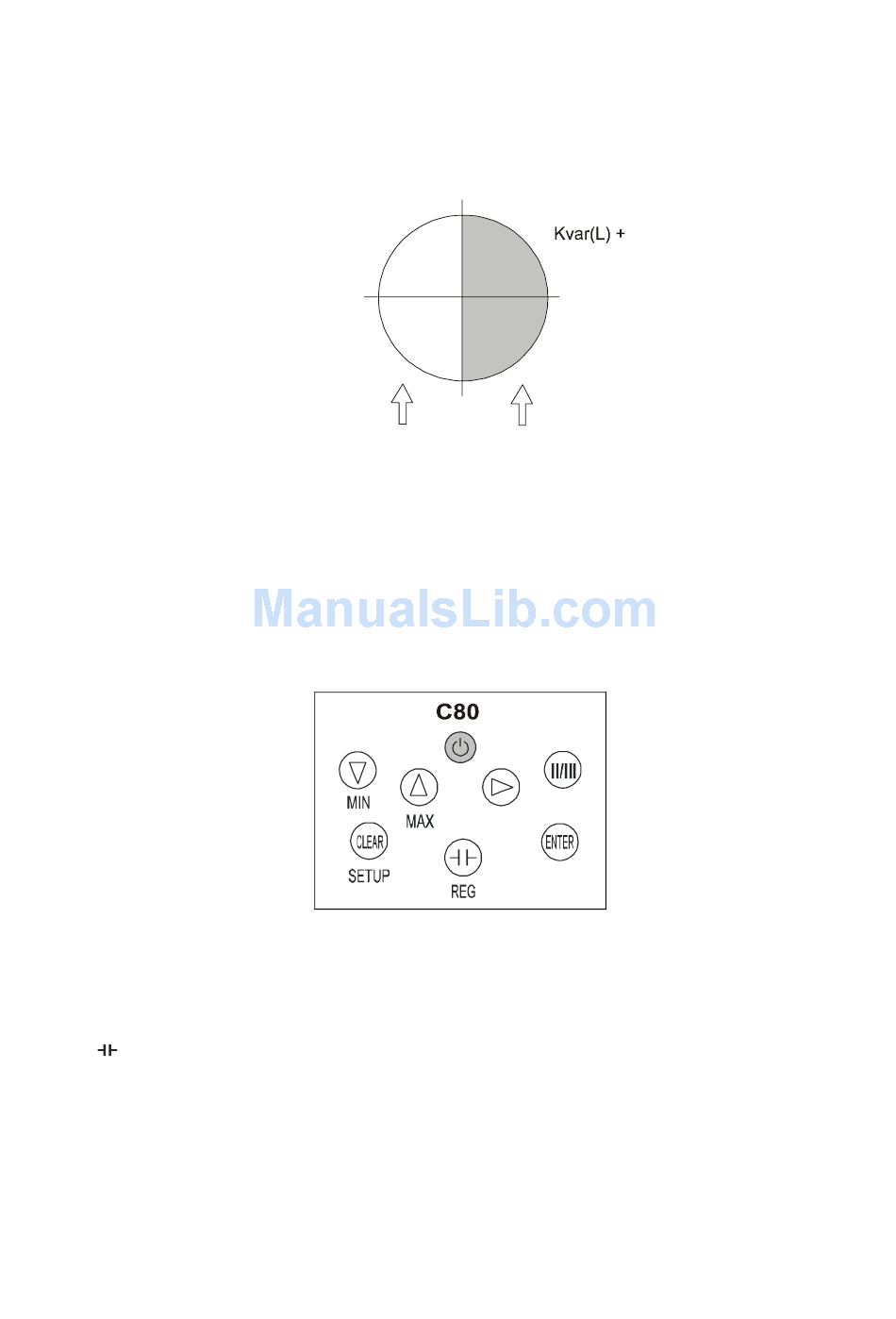

C-80 Analyzers have a membrane keypad with 8 keys to set and control the
equipment's different options. Some keys have a double function that can be selected by a
short or long press (about 3 seconds).
Short press:
-
[ON/OFF] to switch on/off the C-80.
-
[▼], [▲] and [►] To move between, edit and select several options.
-
[II/III] The user can change between single phase mode and three phase mode.
-
[
] Access to Reactive power mode calculation.
-
[CLEAR] Access to CLEAR use (deletion of max./min., energies and recordings).
-
[ENTER] Starts recording and entering action.
Long press:
-
[MIN] for 3 seconds the maximum value is displayed.
-
[MAX] for 3 seconds the maximum value is displayed.
-
[REG] Access to registering menu.
-
[SETUP] Access to SETUP menu.
90º
180º
-90º
Generated
Consumed
Power
C-80 -----------
Page no.
KW +
P.F. +
0º
KW +
Kvar(C) -
P.F. -
Power
9
