3.5.- Presentation of data on the display

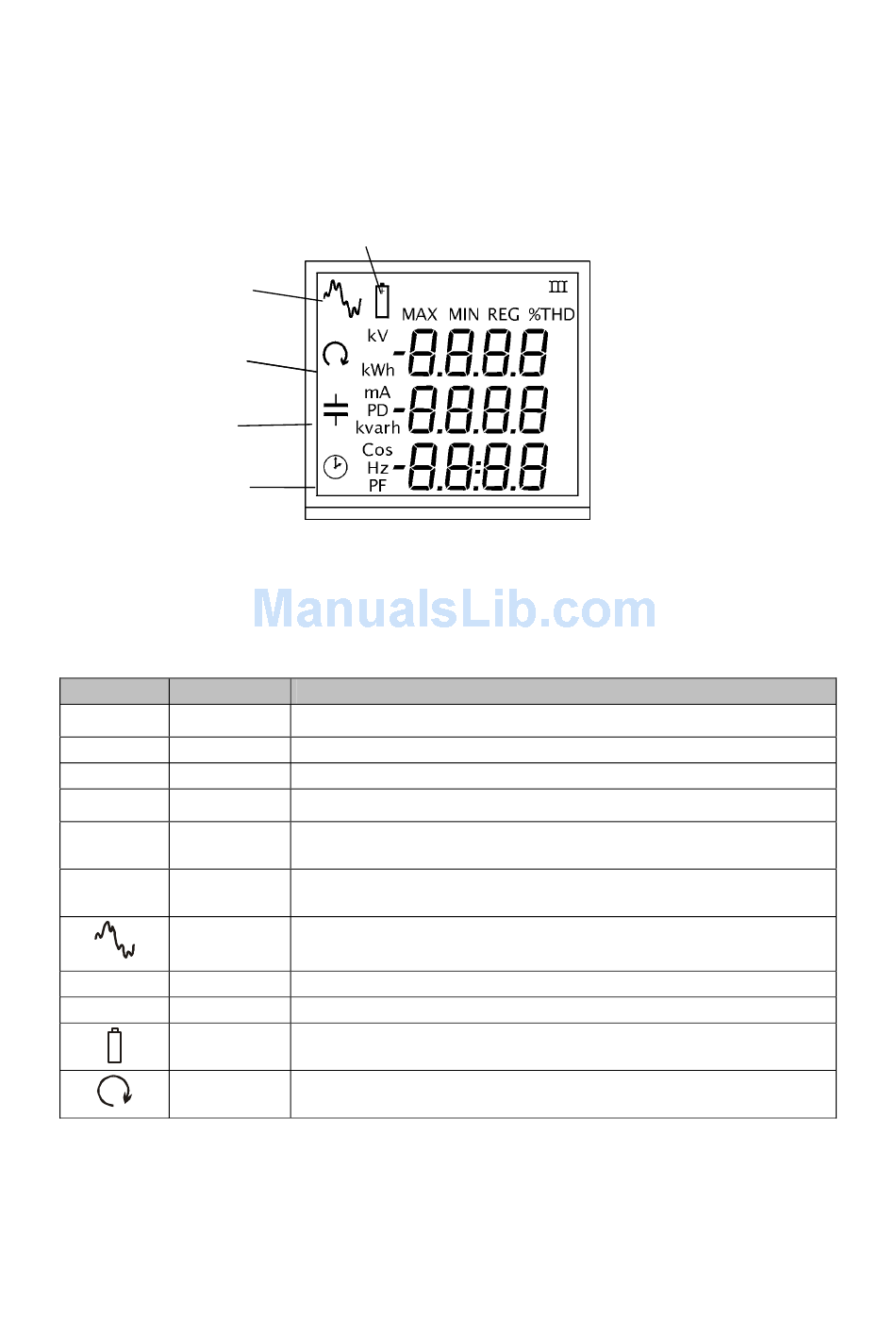

On the liquid glass display (LCD) 7 segments of 3 lines and 4 digits per line with
indicating icons, the instant, maximum, minimum values can be displayed, along with
recorded values and configuration screens.
wave
turn direction
capacitor
clock
The display icons have a different meaning depending on the menu being operated.
The following tables show all the possible icons that can appear and their meaning. For more
information see each specific menu section.
Measurement menu:
ICON MODE
ON
Units
MAX ON
ON
MIN
%THD ON
REG NORMAL
FLASHING
REG NORMAL
FLASHING
NORMAL
FLASHING
OFF
II
ON
III
NORMAL
+
FLASHING
NORMAL
FLASHING
batteries
Indicates the variable units displayed
Shows maximum values
Shows minimum values
Indicates the THD screen is showing
The equipment is recording
Instant registering of the user ( photo )
A THD alarm has tripped. The THD value is above that
programmed by the user
Single phase mode
Balanced three phase mode
Low battery
Three phase connection error. Indicates that the turning
direction is incorrect. Check the connection.
