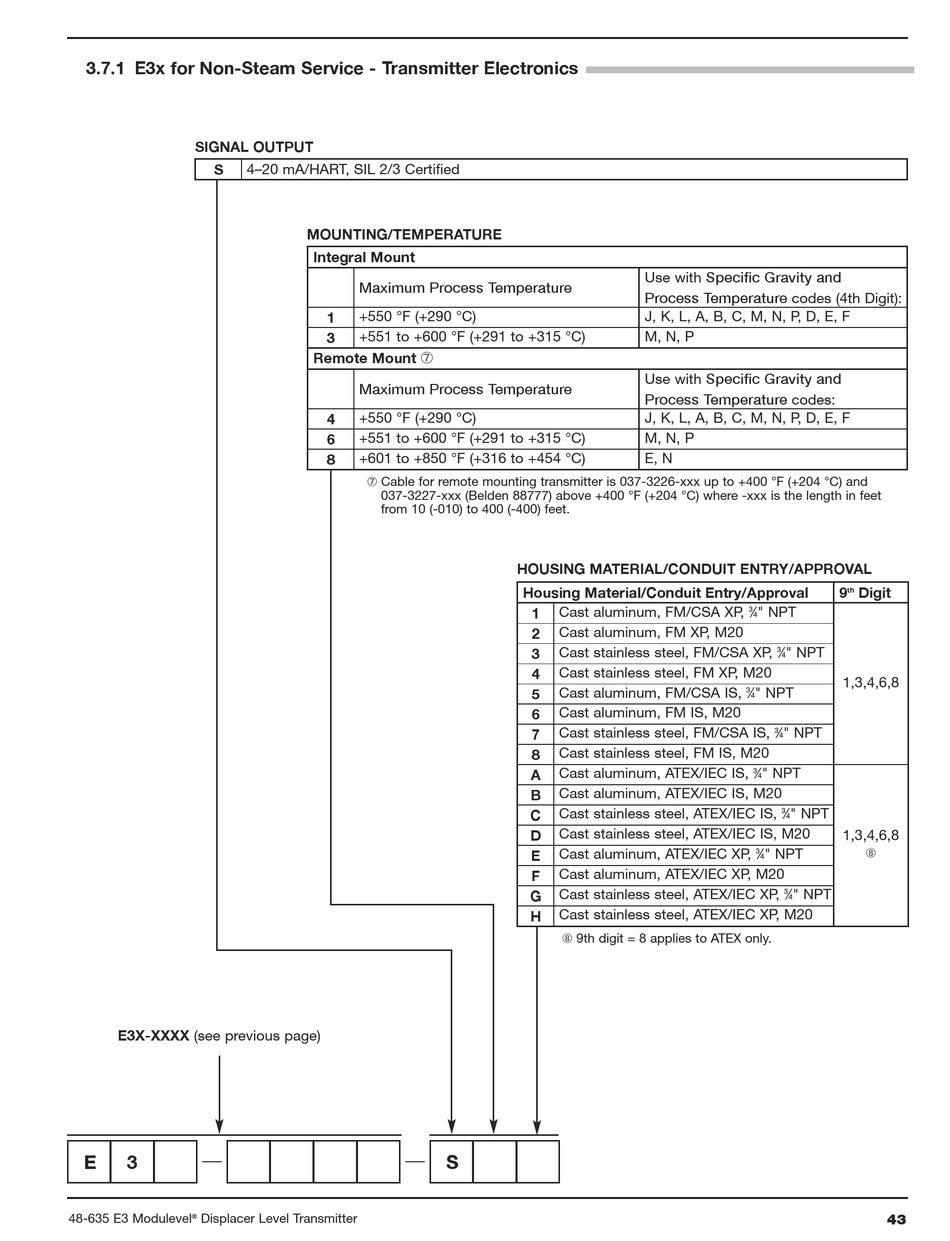

3.7.1 E3x for Non-Steam Service - Transmitter Electronics
SIGNAL OUTPUT
S
4–20 mA/HART, SIL 2/3 Certified
E3X-XXXX (see previous page)
E 3
48-635 E3 Modulevel ® Displacer Level Transmitter
MOUNTING/TEMPERATURE
Integral Mount
Maximum Process Temperature
1
+550 °F (+290 °C)
3
+551 to +600 °F (+291 to +315 °C)
∆
Remote Mount
Maximum Process Temperature
4
+550 °F (+290 °C)
6
+551 to +600 °F (+291 to +315 °C)
8
+601 to +850 °F (+316 to +454 °C)
∆ Cable for remote mounting transmitter is 037-3226-xxx up to +400 °F (+204 °C) and
037-3227-xxx (Belden 88777) above +400 °F (+204 °C) where -xxx is the length in feet
from 10 (-010) to 400 (-400) feet.
S
Use with Specific Gravity and
Process Temperature codes (4th Digit):
J, K, L, A, B, C, M, N, P, D, E, F
M, N, P
Use with Specific Gravity and
Process Temperature codes:
J, K, L, A, B, C, M, N, P, D, E, F
M, N, P
E, N
HOUSING MATERIAL/CONDUIT ENTRY/APPROVAL
Housing Material/Conduit Entry/Approval
1
Cast aluminum, FM/CSA XP,
2
Cast aluminum, FM XP, M20
3
Cast stainless steel, FM/CSA XP,
4
Cast stainless steel, FM XP, M20
5
Cast aluminum, FM/CSA IS,
6
Cast aluminum, FM IS, M20
7
Cast stainless steel, FM/CSA IS,
8
Cast stainless steel, FM IS, M20
A
Cast aluminum, ATEX/IEC IS,
B
Cast aluminum, ATEX/IEC IS, M20
C
Cast stainless steel, ATEX/IEC IS,
D
Cast stainless steel, ATEX/IEC IS, M20
E
Cast aluminum, ATEX/IEC XP,
F
Cast aluminum, ATEX/IEC XP, M20
G
Cast stainless steel, ATEX/IEC XP,
H
Cast stainless steel, ATEX/IEC XP, M20
« 9th digit = 8 applies to ATEX only.
9 Digit
th
⁄ " NPT
3
4
3 ⁄ " NPT
4
1,3,4,6,8
⁄ " NPT
3
4
3 ⁄ " NPT
4
⁄ " NPT
3
4
3 ⁄ " NPT
4
1,3,4,6,8
«
⁄ " NPT
3
4
3 ⁄ " NPT
4
