7. Position the take-off arm mounting slot against the stem clamp
mounting pad. Apply Loctite 222 to the take-off arm bolting and
insert through washers into stem clamp. Leave bolts loose.
8. Slide the appropriate pin slot of the take-off arm, based on
stroke length, over the follower arm pin. The appropriate stroke
lengths are stamped by each pin slot.
9. Center the take-off arm on the rolling sleeve of the follower pin.
10. Align the take-off arm with the top plane of the stem clamp and
tighten bolting. Torque to 120 in-lb.
NOTE: If mounted properly, the follower arm should be horizon-
tal when the valve is at 50% stroke and should move approxi-
mately ±30° from horizontal over the full stroke of the valve. If
mounted incorrectly, a stroke calibration error will occur and the
indicator lights will blink a RGGY code indicating the position
sensor has gone out of range on one end of travel. Reposition
the feedback linkage or rotate the position sensor to correct the
error.

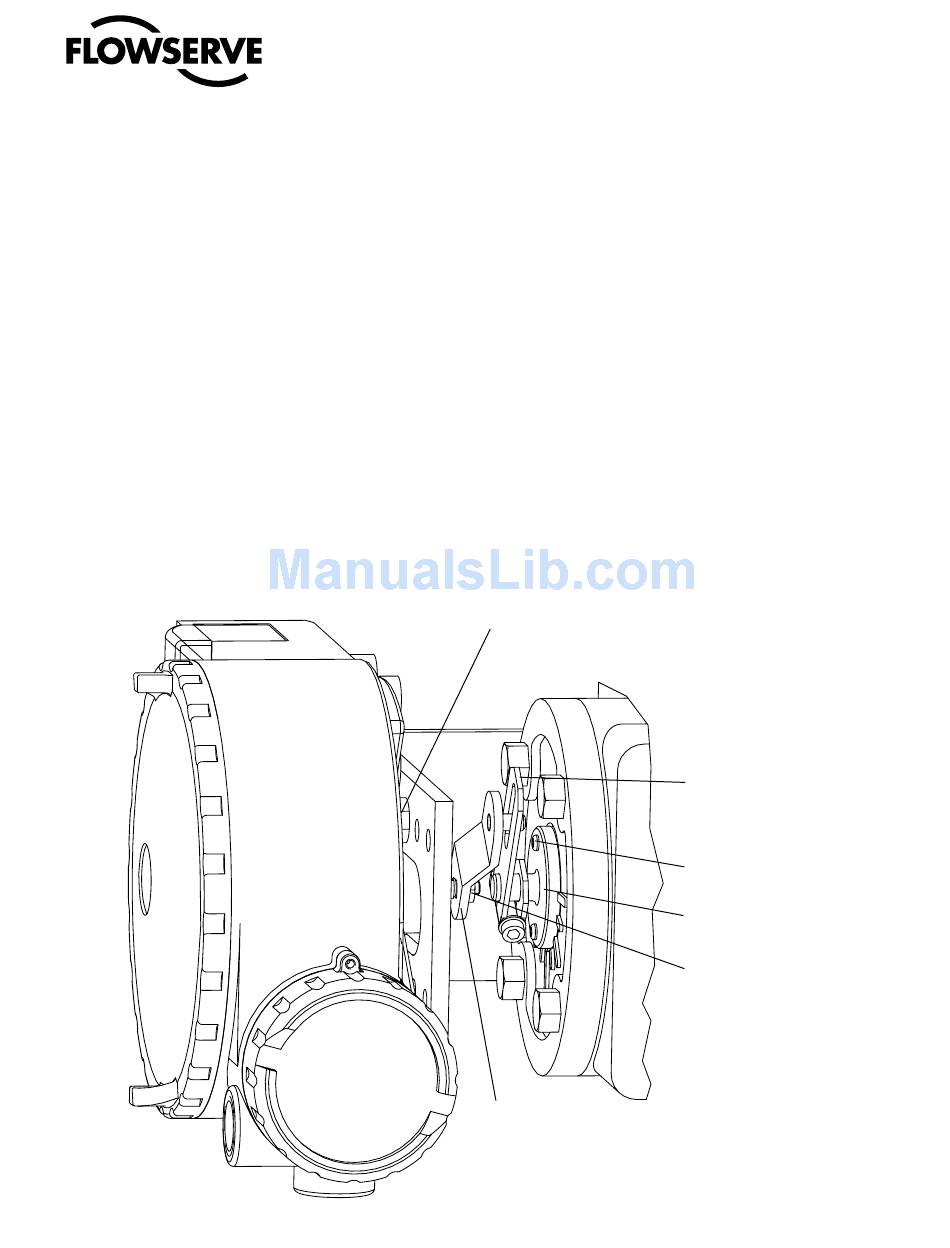

Figure 4: Standard Rotary Mounting
Logix 3200MD
Digital Positioner
User instructions - Digital Positioner 3200MD LGENIM0059-01 10/08
5.2 Mounting to Standard
Valtek Rotary Valves
The standard rotary mounting applies to Valtek valve/actuator as-
semblies that do not have mounted volume tanks or handwheels.
The standard mounting uses a linkage directly coupled to the valve
shaft. This linkage has been designed to allow for minimal misalign-
ment between the positioner and the actuator. The tools required for
the following procedure are:
• ⁄ " Allen wrench
5
32
• 1/2" open-end wrench
• ⁄ " open-end wrench
7
16
• ⁄ " socket with extension
3
8
• ⁄ " nutdriver
3
16
1. Fasten the spline lever adapter to the splined lever using two 6 x
1/2" self-tapping screws.
Positioner Bolts ¼-20 (4)*
Bracket Bolts
Follower Arm
(See Figure 4)
/
5 -18 (2, not shown)
16
Take-off Arm, Rotary
Lock Washer (2)
10-32 Bolt
10-32 Nut
Self-tapping Screws (2)
Spline Lever Adapter
10-32 Nut
Lock Washer
* Located in appropriate
hole pattern as indicated on
bracket. (25, 50, 100/200)
9
