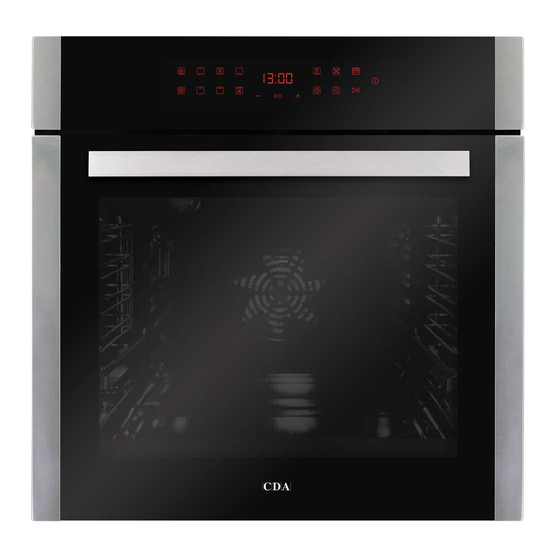

CDA SK420 Installation, Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. CDA Manuals
  4. Oven
  5. SK420
  6. Installation, use and maintenance manual

CDA SK420 Installation, Use And Maintenance Manual

Single ovens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SK420 & SK520
Single ovens
Installation, use and maintenance
www.cda.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK420 and is the answer not in the manual?

Questions and answers

Related Manuals for CDA SK420

Summary of Contents for CDA SK420

  • Page 1 SK420 & SK520 Single ovens Installation, use and maintenance www.cda.eu...

  • Page 2: Table Of Contents

    Booster function Safety key lock Cleaning and maintenance Removing the appliance door Replacing the appliance door Removing the inner door glass (SK420) Changing the oven light bulb (SK420) Removing the inner door glass (SK520) Changing the oven light bulb (SK520) Installation...
  • Page 3 Any other use could be dangerous and may lead to premature failure of the appliance. The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance.

  • Page 4: Important Information

    Appliance Model Serial Number EU Declarations of Conformity: This oven has been designed, constructed and marketed in compliance with safety requirements of EU Directive 2014/35/EU (Low voltage) and requirements of EU Directive 2014/30/EU. This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
  • Page 5 Important • Read the user instructions carefully before using the oven for the first time. • Follow the instructions for first use of the oven. • Clean the oven regularly. • Remove spills as soon as they occur. • Always use oven gloves when removing shelves and trays from the ovens.
  • Page 6 • Do not use the appliance if any part is broken (e.g. door glass). Disconnect it from the mains power supply and contact CDA Customer Care. • The cooling fan may run even long after the oven has finished cooking.
  • Page 7 major spills to avoid the risk of fire or excessive smoke. • Do not hang towels or cloths on the oven handle at any time. • Ensure that the oven is cool and power to the appliance has been turned off before carrying out any cleaning or maintenance including door removal.

  • Page 8: First Use Of The Oven

    First use of the oven First use • The metal casing of this appliance has been coated with a preservative to protect it during transport and storage. This should be removed during installation by using a non-abrasive stainless steel cleaner. Always follow the instructions given with the cleaner being used.

  • Page 9: Control Panel(S)

    Control panel - SK420 Time/Temperature Auxiliary functions button display Functions SK420 Time/Temperature adjustment Timer Cooking time End of cooking time Fig. 1 Control panel - SK520 Time/Temperature Auxiliary functions button display Functions SK520 Time/Temperature adjustment Cooking time End of cooking time Timer Fig.

  • Page 10: Functions

    Functions Defrost - Default 60°C Using the fan and mild heat, this oven function circulates the air around the oven cavity, speeding up the natural defrost process. The temperature can be set between 20°C and 60°C in 1°C increments. The temperature can be adjusted at any time by using the “+”...
  • Page 11 The temperature can be adjusted at any time by using the “+” or “-” keys. Fan With Lower Heat - SK420 only This oven programme is ideal for one-pot dishes such as casseroles. The temperature can be set between 50°C and 250°C in 5°C increments.
  • Page 12 Fan Oven - Default 180°C Using the circular element and the fan, this cooking function blows the air into and around the oven cavity. Temperatures are achieved quicker, reducing or even removing the need for preheating. Both cooking temperatures and cooking times can be reduced for a more energy efficient cooking programme.
  • Page 13 Pyrolytic Oven - Default 420°C - SK520 only NOTE: This function has an added safety feature to prevent it from being selected accidentally. To run the pyrolytic function, select “Pyrolytic” on the “Function Selector Display”, then press the sensor. The door will lock and remain locked until the appliance is cool.

  • Page 14: Using Your Oven

    Before any pyrolytic programme, remove all shelves, trays and other accessories from the oven and clean up any major spills to avoid the risk of fire or excessive smoke. During the pyrolytic process the oven exterior including the door will become hotter than during normal cooking. Children and pets must be kept away from the oven.

  • Page 15: Minute Minder Function

    Setting the minute minder function The minute minder function can be set at any time, regardless of the state of activity of the oven. The minute minder can be set anywhere from 1 minute to 23 hours and 59 minutes. •...

  • Page 16: Semi-Automatic Cooking

    Pausing a cooking function • Press the sensor. • Press the sensor to resume. Changing the temperature during a function The temperature can be adjusted during a function. • Press the sensor and then press the sensor. • The temperature will flash and can be adjusted using the sensors.

  • Page 17: Automatic Cooking

    Automatic cooking The oven can be set to switch off automatically at preset time up to a maximum of 23 hours and 59 minutes from when you set it. • Set the oven function and temperature. • Whilst the display is still flashing, touch the sensor until the symbol illuminates and flashes.

  • Page 18: Booster Function

    Booster function The oven is equipped with a booster function to heat it up to operating temperature as fast as possible. After selecting the oven function and setting the temperature, touch the sensor. The booster function works on all cooking functions but is not required for the pyrolytic function (SK520 only).
  • Page 19 Please note: The light sensor will still work when the lock is active. To switch off the safety key lock; • Touch and hold the sensors for approximately 3 seconds. The appliance should beep and the lock should now be inactive. If ‘LOC’...

  • Page 20: Cleaning And Maintenance

    Cleaning and maintenance Keeping your oven clean and well maintained helps to prolong the fault-free lifespan of it and helps prevent your home from being filled with odours. It is important that, before any cleaning or maintenance is performed, you switch off the oven at the mains supply.

  • Page 21: Removing The Appliance Door

    warm water and then wiped dry with a suitable, clean cloth. Suitable proprietary chemical cleaners may be used after first consulting with the manufacturers’ recommendations and testing a sample on a small area of the oven cavity. Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity surface.

  • Page 22: Replacing The Appliance Door

    Replacing the appliance door Fig. 3 • Hold the door to the appliance in the closed position and manoeuvre the hinges so that the part of the hinge, highlighted by the star in fig. 3, inserts into the hinge slot in the cavity frame. •...

  • Page 23: Removing The Inner Door Glass (Sk420)

    Removing the inner door glass (SK420) The inner pane of glass can be removed for cleaning purposes. To do so, follow the steps below and the image at the bottom of this page. Important: Do not disassemble the Fig. 4 door without it having been removed from the oven as per page 21/22.

  • Page 24: Changing The Oven Light Bulb (Sk420)

    Changing the oven light bulb (SK420) Important: • Before any maintenance, the appliance must be disconnected from the power supply. If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance.
  • Page 25 To remove the inner glass (SK520) - Fig. 5 • Remove a screw from each side of the metal top trim. Place them somewhere safe. Then slide the trim toward you, remove it and place it somewhere safe. • Lift the edge of the inner glass slightly and then slide it from its lower clips.
  • Page 26 Top view of door with trim Side view of spacer removed Changing the bulb (SK520) - Fig. 6 Unscrew the protective cover. We recommend that you wash and dry the glass cover at this point. Carefully remove the old bulb and insert the new bulb suitable for high temperatures (300ºC) having the following specifications: 230- 240V, 50Hz, 25W, G9 fitting.
  • Page 27 • Never replace the bulb with bare hands as contamination from your fingers can cause premature failure. Always use a clean cloth or gloves. Please note: The bulb replacement is not covered by your guarantee. Fig. 6...

  • Page 28: Installation

    Installation Important! If installing this oven below a hob, ensure that the air gap between the two appliances is observed. This gap is usually detailed in the hob’s manual. The installation of this appliance must be carried out by suitably qualified personnel.
  • Page 29 When correctly installed ensure that there is a gap of 4 mm minimum between the sides of the oven and adjacent furniture doors. How to install your oven You will need the housing area in fig. 6 to fit your oven correctly. The oven is designed to fit into a cabinet of 600 mm width.

  • Page 30: Mains Electrical Connection

    Mains electrical DOUBLE POLE SWITCHED connection FUSE SPUR OUTLET Warning! This appliance must be earthed. This appliance is intended to be connected to fixed wiring by a double pole switch, having a contact separation of at least 3mm in all poles and protected by a 13A fuse.
  • Page 31 Should the mains cable be damaged or need to be replaced, it should only be done so by a qualified electrician or engineer. The terminal block on the appliance is clearly marked with regards to the positions of live, neutral and earth. Appliance electrical rating: SK420: 2800W SK520: 2800W...

  • Page 32: Troubleshooting

    Contact CDA Customer Care. If any of the above steps do not resolve your issue, please contact CDA Customer Care to arrange a repair. Contact details are below. Please have to hand all the details from your appliance’s rating plate which can be found on the back of the oven and/or on the back of the instruction manual/warranty card.

  • Page 33: Energy Efficiency Information

    (gas final energy) E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
  • Page 34 01949 862 012 or email customer.care@cda.eu For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.eu www.cda.eu...
