II. Fluorometer Operation
Fluorescence Optical Module
Installation
1. Power the Trilogy OFF
2. Grasp the handle of the Optical Application Module and align the kit with the sample
compartment.
3.
Press down firmly to lock the Optical Application Module in place. You should hear or
feel a click indicating the module has snapped into place. (See Figure 5.)
4. Close the lid and power ON the Trilogy. Use the touch screen to identify the type of
Optical Application Module installed.

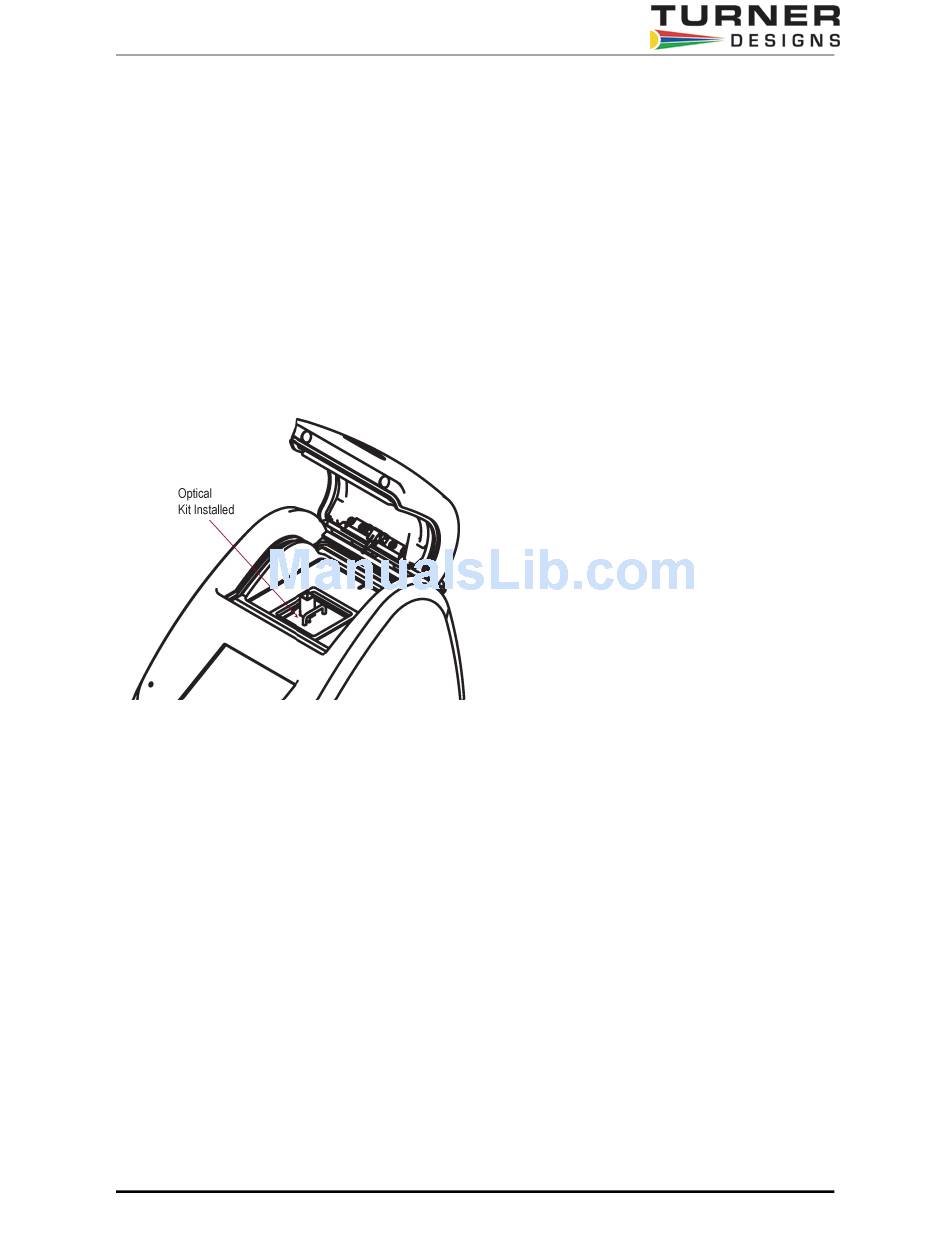

Figure 5.
Removal
1. Power OFF the Trilogy before removing the Optical Application Module
2.
Grasp the handle and gently pull up to release the kit from the sample compartment

Touch screen Basics (Fluorescence)

Home Screen
The "Home" screen appears after confirmation of the Optical Application Module. The "Home"
screen provides orientation for the multiple functions of the Trilogy. From the "Home" screen,
select "Calibrate," "Tools," "Mode," or "Help." The "Home" screen is also the measurement
screen. (See over for Figure 6 showing Home Screen with callouts).
