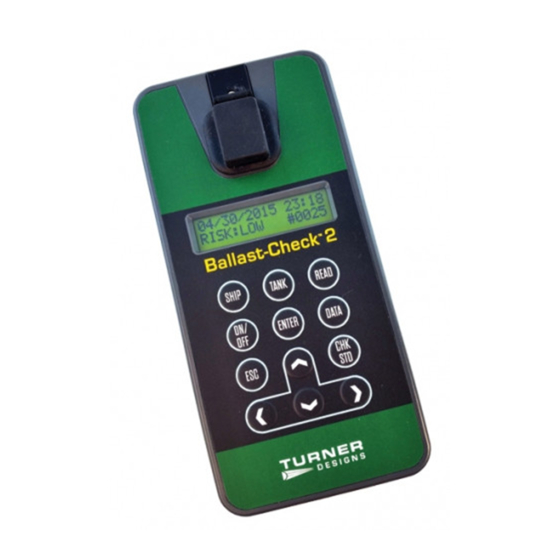

Turner Designs Ballast-Check 2 User Manual

Handheld pam fluorometer
Hide thumbs Also See for Ballast-Check 2:
Table of Contents

Advertisement

Quick Links

Download this manual

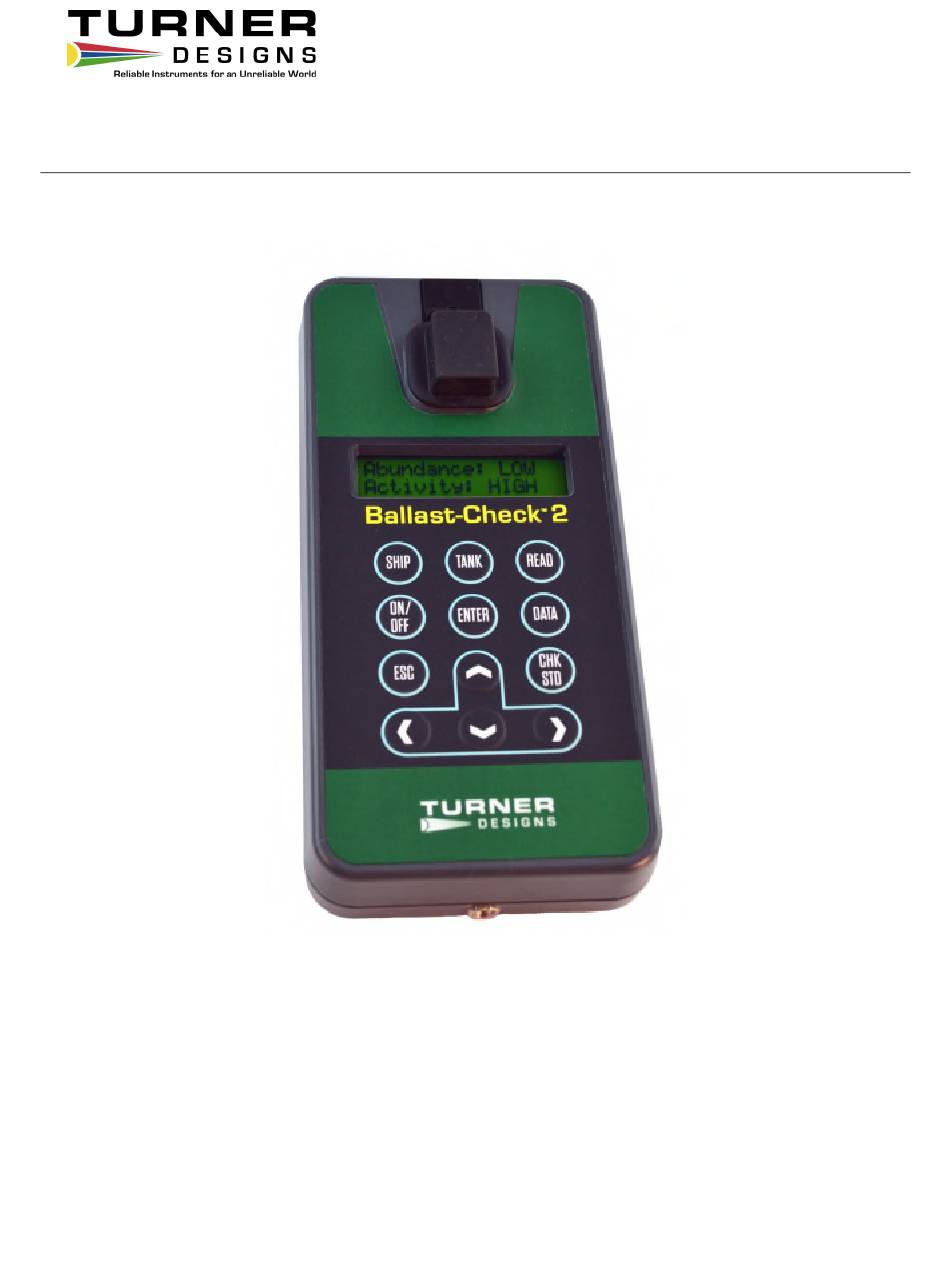

TM
Ballast-Check
2
Handheld PAM Fluorometer
December 5, 2014
P/N: S-0156
Revision DRAFT
TURNER DESIGNS
845 W. Maude Ave.
Sunnyvale, CA 94085
Phone: (408) 749-0994
FAX: (408) 749-0998

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ballast-Check 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turner Designs Ballast-Check 2

Summary of Contents for Turner Designs Ballast-Check 2

  • Page 1 Ballast-Check Handheld PAM Fluorometer December 5, 2014 P/N: S-0156 Revision DRAFT TURNER DESIGNS 845 W. Maude Ave. Sunnyvale, CA 94085 Phone: (408) 749-0994 FAX: (408) 749-0998...

  • Page 2: Table Of Contents

    Button Identification and Function Instrument Power Up Calibration Verification Filtering Samples Measuring a Sample Data Downloading Sample Analysis Guidelines Measurement Parameters Corrected Fluorescence (CFl) Photosynthetic Efficiency (Activity) Calculations Warranty Terms Warranty Service Out of Warranty Service Appendixes Specifications Ballast-Check 2 User’s Manual...
  • Page 3 WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE Turner Designs is in the business of designing and selling products that benefit the well-being of our environment. Accordingly, we are concerned with preserving the surroundings wherever our instruments are used and happy to work with customers by complying with the WEEE Directive to reduce the environmental impact resulting from the use of our products.

  • Page 4: Introduction

    Introduction 1.1 Description The Ballast-Check 2 is configured to provide users with a rapid estimation of algal abundance (Corrected Fluorescence or CFl) and photosynthetic efficiency (Activity) of algae in water. The CFl (see section 4.1) value represents varying algal abundances used for determining gross exceedance of algae in ballast water samples around the set threshold level.

  • Page 5: Inspection

    USB Flash Drive with User’s Manual and Basic Instructions 1.5 General Information, Precautions and Cleaning • Use caution around solvents, they may degrade the plastic case of the Ballast-Check 2. • If a sample is accidentally spilled inside the sample compartment, invert the Ballast- Check 2 to drain out the excess liquid.

  • Page 6: Instrument Operation And Calibration

    ON/OFF – Turns the instrument ON or OFF. ENTER – This button is used to save set values when setting SHIP or TANK values and allows users to proceed to the next screen/menu. Ballast-Check 2 User’s Manual...
  • Page 7 CHK STD – Is used to determine instrument performance. PASS or FAIL will display after measuring the solid standard using the CHK STD button indicating whether the Ballast-Check 2 can continue to be used for sample analysis or should be returned to the factory.

  • Page 8: Instrument Power Up

    FAIL will display 2.4 Filtering Samples The Ballast-Check 2 comes with 3 types of filters that are used to analyze a sample: 0.2, 10, and 50 micron sized filters. These filters are used to fractionate samples to measure different sized algae. Each fractionated sample will be measured for fluorescence and the corrected fluorescence value calculated at the end of the analysis will represent the 10-50 micron sized algal cells.

  • Page 9: Measuring A Sample

    2-3 times with the 50 micron filtered sample before filling the glass cuvette with the filtrate. 6. Wipe the outside of the glass cuvette, insert the cuvette into the Ballast-Check 2 and close the sample compartment’s lid.

  • Page 10: Data Downloading

    Figure 1 2.6 Data Downloading The Ballast-Check 2 can log a total of 1000 data points that can be downloaded directly to your PC or computer using the provided serial cable. A terminal program (e.g. Hyperterminal, Terra Term, MotoCross) is required for downloading these stored ASCII data from the instrument.
  • Page 11 Confirm data are saved to your PC before proceeding to clear data from the Ballast-Check 2. The Ballast-Check 2’s memory starts at 100% for 1000 data points. If the memory is more than 90% full and the READ button is pressed, the following message will display: “Warning: Memory >...

  • Page 12: Sample Analysis Guidelines

    • Use the same cuvette for your samples, it is very important that you thoroughly rinse the cuvette between samples. The Ballast-Check 2 is very sensitive, therefore cross contamination between subsequent samples will skew results. Three rinses with the sample intended for measurement will help flush out any residual and decrease the chance for cross contamination.

  • Page 13: Measurement Parameters

    Measurement Parameters 4.1 Abundance - Corrected Fluorescence (CFI) The Ballast-Check 2 is configured for detecting fluorescence from chlorophyll in live algal cells (i.e. in vivo detection of Chlorophyll). Light from the fluorometer is absorbed by algal cells and fluorescence emitted by the cells is detected, quantified, and displayed as a digital number (CFl), estimating the abundance of algae in the sample.

  • Page 14: Terms

    (RMA). Package the unit, write the RMA number on the outside of the shipping carton, and ship the instrument, prepaid, to Turner Designs. If the failure is covered under the warranty terms, the instrument will be repaired and returned free of charge, for all customers in the contiguous continental United States.
  • Page 15 Ballast-Check 2 User’s Manual...

  • Page 16: Appendixes A Specifications

    12 bits Case Meets IP 67 Standard; dustproof and waterproof Temperature 41-104 °F; 5-40 °C Internal Memory 1000 records Data Output Format ASCII Weight 0.87 lbs. (0.4kg) Size 1.75” x 3.5” x 7.25”(4.45cm x 8.9cm x 18.4cm) Ballast-Check 2 User’s Manual...
