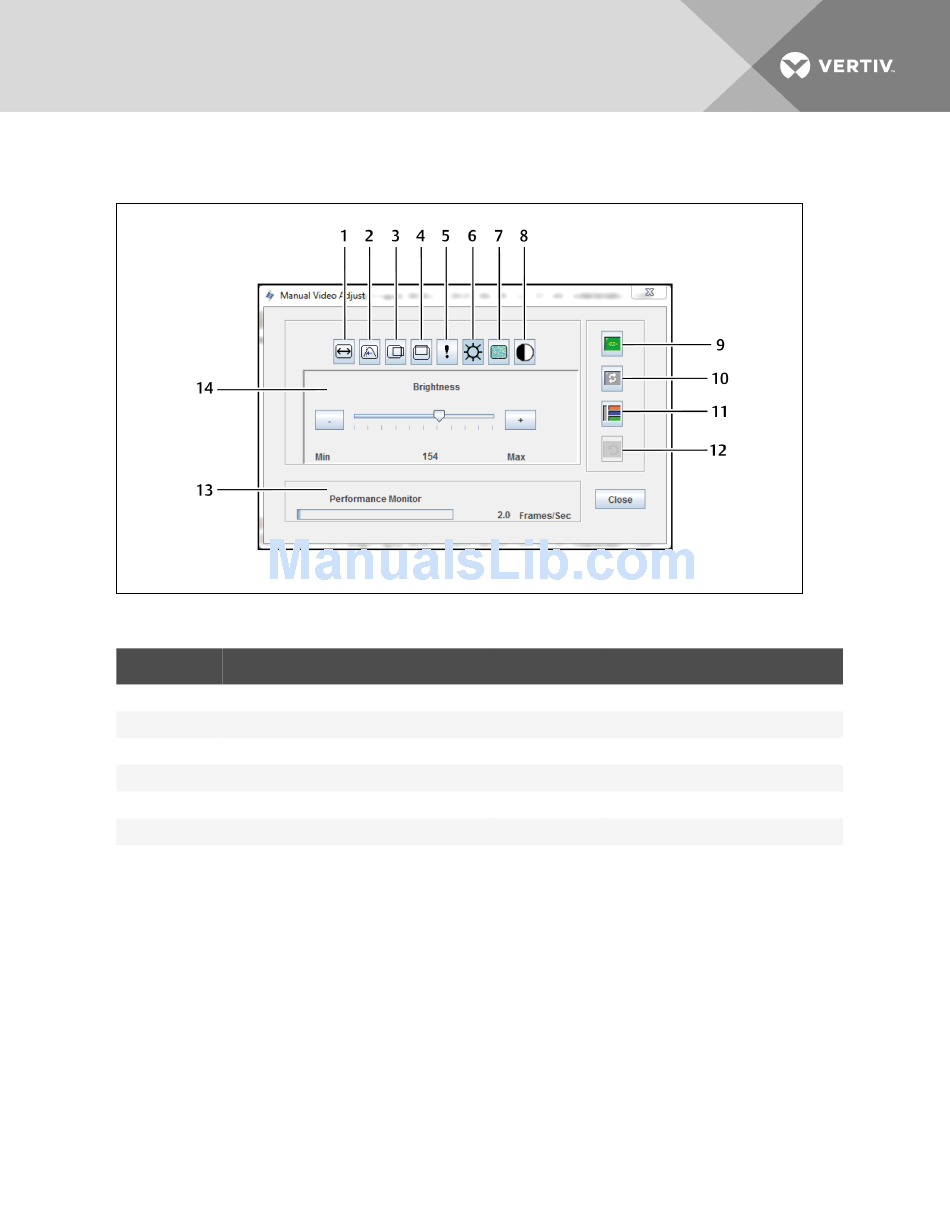

Figure 4.1 Manual Video Adjust Window
Figure 4.2
Table 4.1 Manual Video Adjust Window Descriptions
NUMBER
1 Image Capture Width
2 Pixel Sampling/Fine Adjust
3 Image Capture Horizontal Position
4 Image Capture Vertical Position
5 Pixel Noise Threshold
6 Brightness
7 Block Noise Threshold
To manually adjust the video quality of the window:
NOTE: The following video adjustments should be made only with the help of Technical Support.
1. Click Tools - Manual Video Adjust from the Video Viewer window menu.
2. Click the icon corresponding to the feature you wish to adjust.
3. Move the Contrast slider bar and then fine-tune the setting by clicking the Min (-) or Max (+)
buttons to adjust the parameter for each icon pressed. The adjustments display immediately in
the Video Viewer window.
4. When finished, click Close.
Vertiv™ | Vertiv™ Avocent® MergePoint Unity™ Switch for Dell® Installer/User Guide |
DESCRIPTION NUMBER DESCRIPTION
8 Contrast
9 Automatic Video Adjustment
10 Refresh Image
11 Adjustment Bar
12 Revert Video to Initial Settings
13 Performance Monitor
