Vertiv Avocent IPIQ Quick Installation Manual

Avocent® IPIQ IP KVM Device
Quick Installation Guide
Avocent IPIQ IP KVM Device Configuration
Vertiv
TM
Service
processor
1
About the Avocent IPIQ IP
KVM device

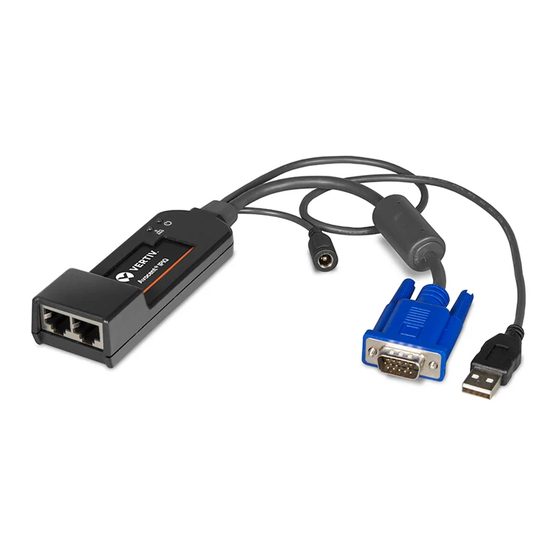

The IP KVM device converts keyboard,
video and mouse (KVM) from a target
to digital IP data, enabling bi-directional
control of the connected target by a
remote user.
The IP KVM device draws its operating
power from the connected server over
USB.
An external DC power cable option is
available, which can be connected to a
Vertiv 5V DC power supply. Please see
your Vertiv representative for details.
See the Safety and Regulatory
Statements sheet that accompanies
this product for more information.
1. Connecting a target to the IP
KVM device
Plug the IP KVM device, DB15 (VGA)
and USB connectors into the
appropriate target ports. Repeat this
procedure with additional modules
for each target to be connected to
the appliance.
Avocent® RM1048P Rack Manager
2
3
Target

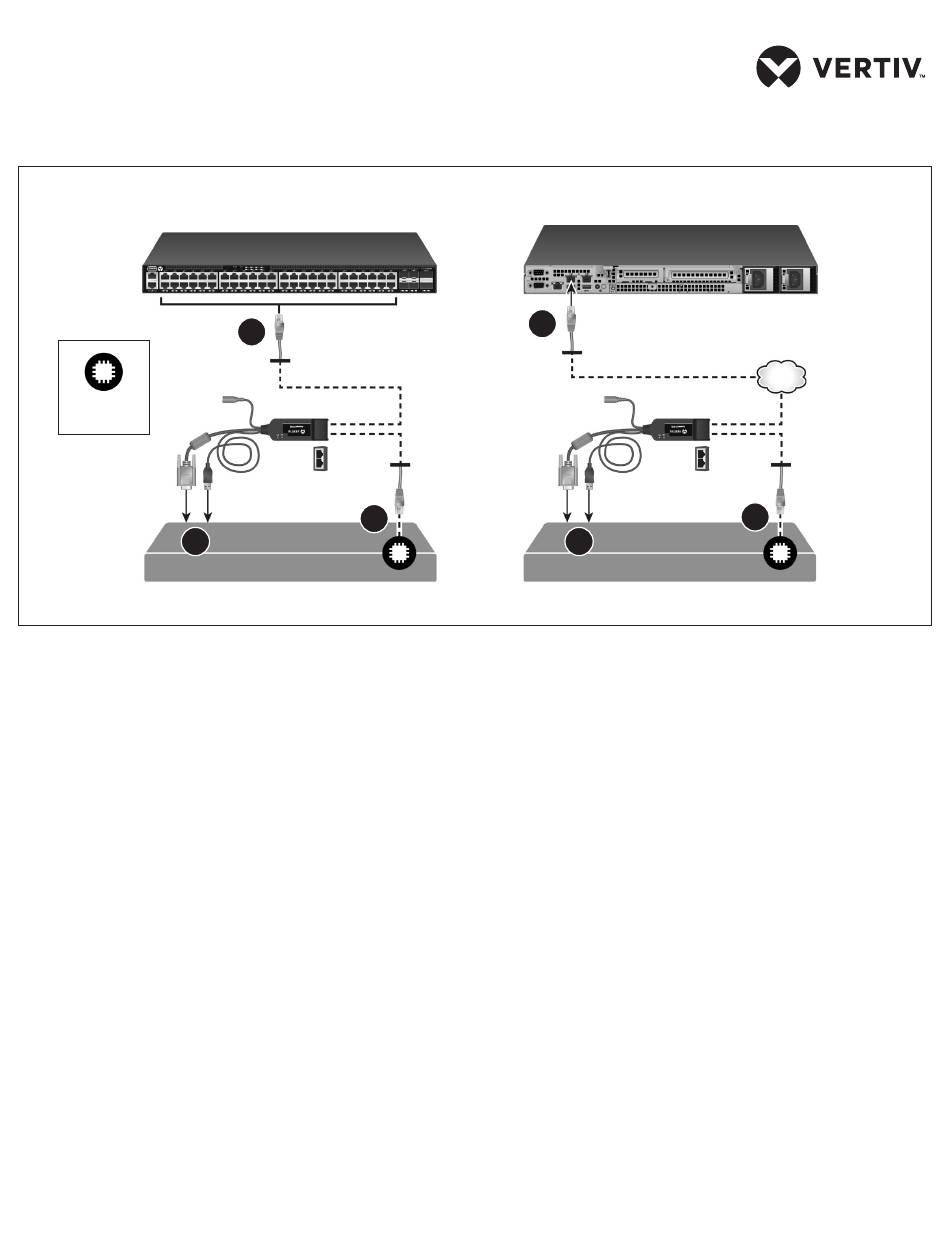

2. Connecting the IP KVM device
to your appliance
The IP KVM device may be directly
connected to an Avocent RM1048P
Rack Manager or connected to an
Avocent MP1000 Management
Platform through a network.
RACK MANAGER CONNECTION
Connect one end of a CAT 5e or
CAT 6 cable into one of the
numbered ports (1-48) on the rack
manager. Connect the other end to
one of the two RJ45 ports on the IP
KVM device.
NOTE: Maximum cable length is
100 meters.
MANAGEMENT PLATFORM
CONNECTION
Connect one end of a CAT 5e or CAT
6 cable to a network that contains
your management platform. Connect
the other end to one of the two RJ45
ports on the IP KVM device.
Vertiv Avocent® MP1000 Management Platform
TM
2
1
Target
NOTE: The management platform
may also be connected to IP KVM
devices via the rack manager. For
connection options between the
management platform and the rack
manager, see the Vertiv
Avocent®MP1000 Management
Platform Installer/User Guide.
3. Connecting the IP KVM
device to a service processor
(optional)
Connect one end of a CAT 5e or
CAT 6 cable to the remaining RJ45
port on the IP KVM device and
insert the opposite end into the
dedicated service processor port on
the target.
4. Turning on the target system
Ensure the target is turned on
before attempting to establish a
remote KVM session.
LAN
3
TM
590-2346-501B 1
