LIEBERT® vNSA™
Quick Installation Guide

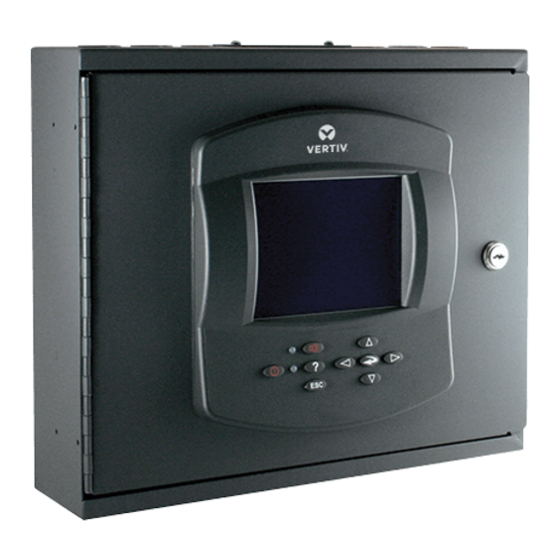

The Liebert vNSA network switch
connects multiple, Ethernet-ready
devices. The vNSA may include
one or two 8-port network
switches, and some models
include a Liebert iCOM™ display to
connect iCOM-equipped Thermal
Management units. See the table
below for details.
NETWORK SWITCHING
The switches in the vNSA include
8 ports: 10/100 Mbps, twisted-pair,
RJ45 and support switched
Ethernet networks in accordance
with IEEE Standard 802.3.
The switches include
autonegotiation, autopolarity, and
autocrossing to eliminate the need
for a crossover cable when
connecting device ports.
The number of Thermal
Management units that you can
connect depends on the vNSA
model. See the table below.
PRODUCT MODELS
iCOM
display
Model
vNSA8-iCOM
vNSA8-iCOM-CR
vNSA8-iCOM-XP
vNSA16-iCOM
vNSA16-iCOM-CR
vNSA16-iCOM-XP
vNSA8
vNSA16
Liebert vNSA
Number
Ports required for:
of Ports
iCOM display
- -
connection
Yes 8
Yes 8
Yes 8
Yes 16
Yes 16
Yes 16
No 8 —
No 16 —
TM
Upper and
lower switch
connection
1 —
1 —
1 —
1 2
1 2
1 2
—
2
Remaining
Maximum number of
available
connected units for:
ports
small iCOM
-
display
7 7
7 7
7 7
13 13
13 13
13 13
8 8
14 14
590-1619-501A/SL-18840_REV2_10-17
large iCOM
display
3
3
3
6
6
6
4
7
