Prosonic Flow 92
Endress+Hauser
6

Commissioning

6.1

Function check

Make sure that all final checks have been completed before you start up your measuring
point:
• "Post-installation check" checklist → Page 25
• "Post-connection check" checklist → Page 33
6.2
Commissioning
6.2.1

Switching on the measuring device

Switch on the device by pressing the ON key.
1.
The start-up screen (A) appears on the local display.
2.
The language selection (1) flashes for approx. 5 seconds. Press the ESC key during
this time to select another language. The language selection display (B) appears.
Use the W or V cursor to select the language required. Press the ENT key to
complete the selection. The MEASUREMENT display (C) appears. The device is
now operational.
3.
If no language change is required, the device goes directly to the MEASUREMENT
display (C) after approx. 5 seconds. The device is now operational.

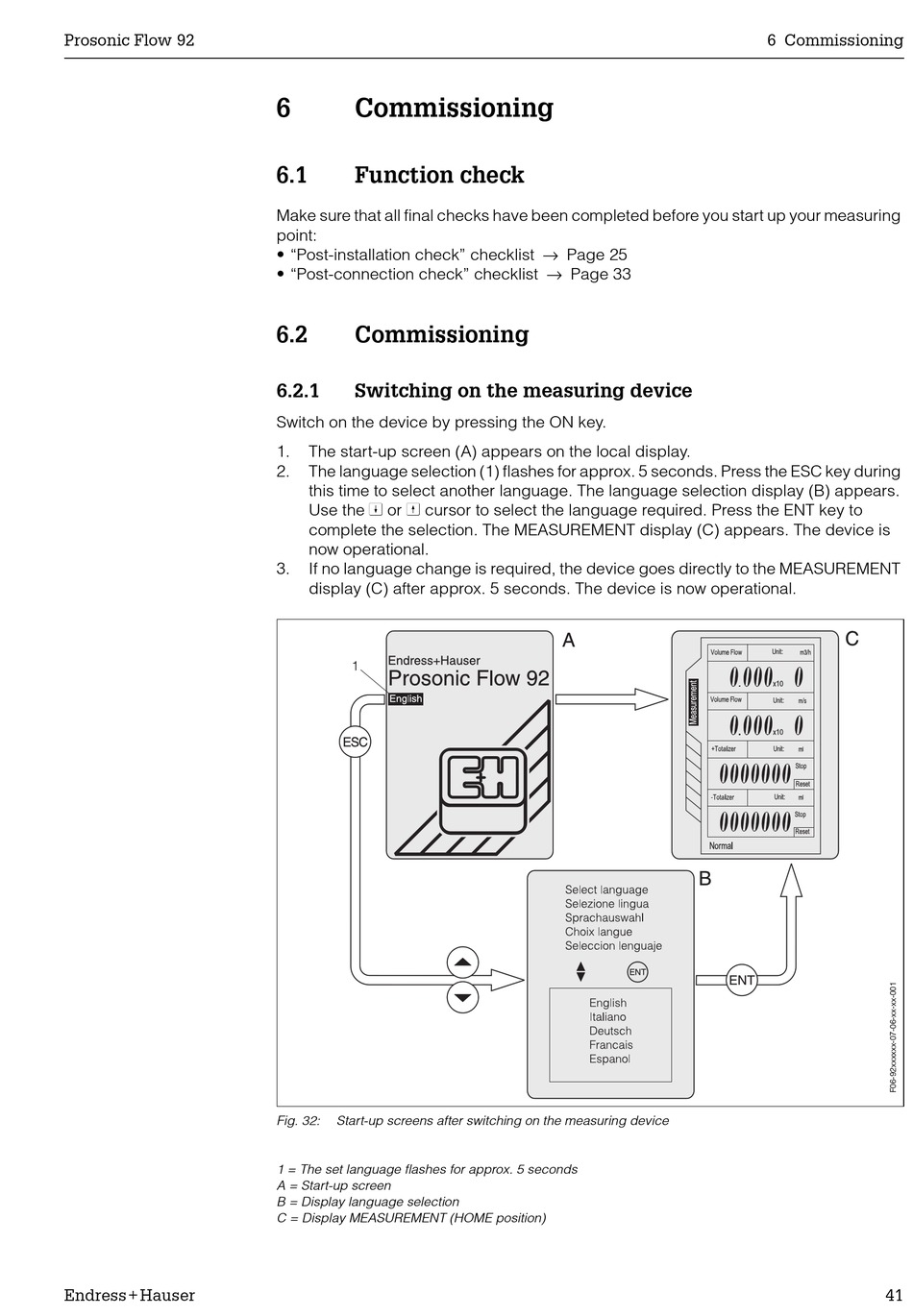

Fig. 32:
Start-up screens after switching on the measuring device
1 = The set language flashes for approx. 5 seconds
A = Start-up screen
B = Display language selection
C = Display MEASUREMENT (HOME position)
6 Commissioning
41
