Prosonic Flow 92
Endress+Hauser
11.4.1

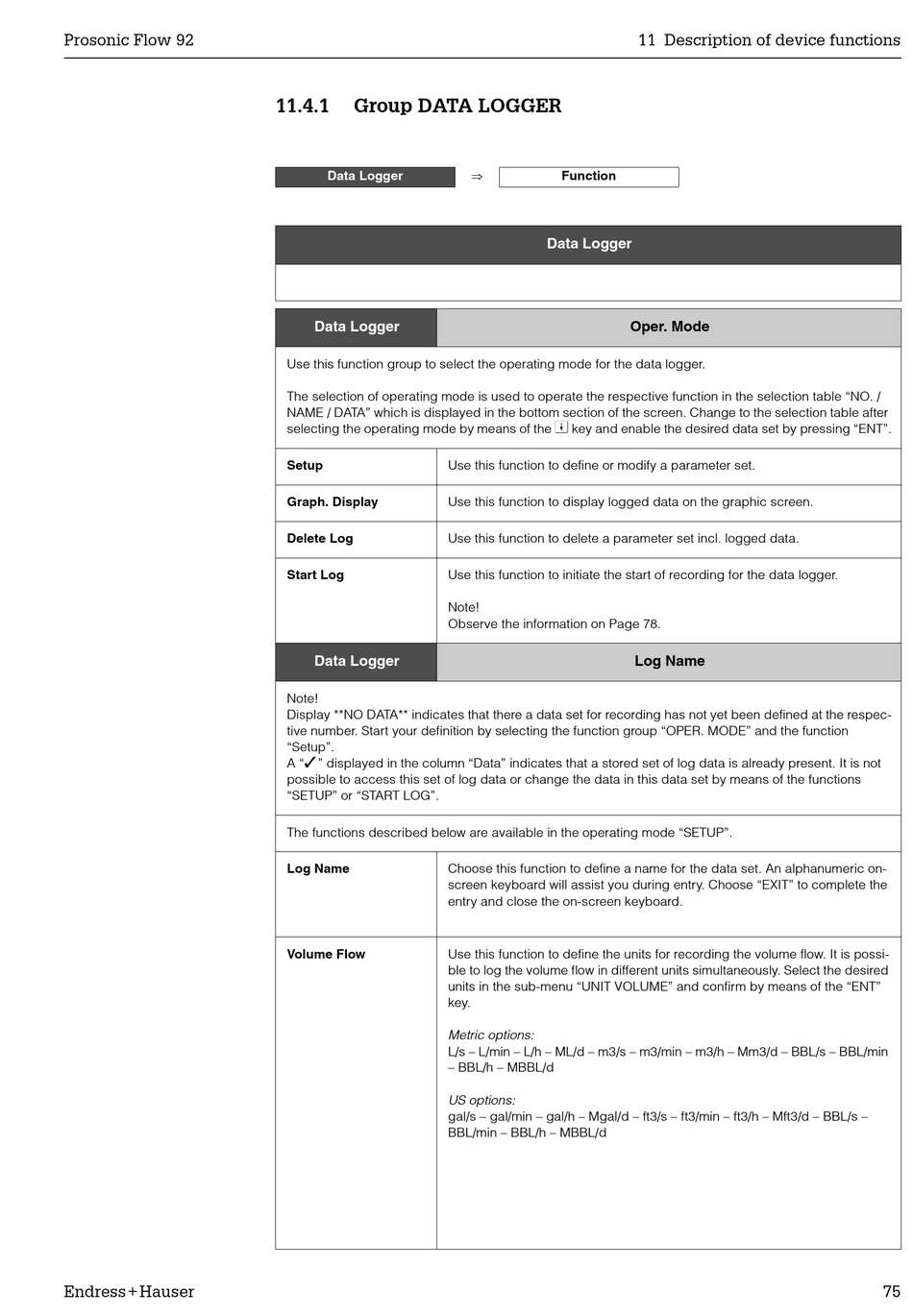

Group DATA LOGGER

Data Logger
Data Logger
Use this function group to select the operating mode for the data logger.
The selection of operating mode is used to operate the respective function in the selection table "NO. /
NAME / DATA" which is displayed in the bottom section of the screen. Change to the selection table after
selecting the operating mode by means of the
Setup
Graph. Display
Delete Log
Start Log
Data Logger
Note!
Display **NO DATA** indicates that there a data set for recording has not yet been defined at the respec-
tive number. Start your definition by selecting the function group "OPER. MODE" and the function
"Setup".
✓
A " " displayed in the column "Data" indicates that a stored set of log data is already present. It is not
possible to access this set of log data or change the data in this data set by means of the functions
"SETUP" or "START LOG".
The functions described below are available in the operating mode "SETUP".
Log Name
Volume Flow
Þ
Function
Data Logger
W
key and enable the desired data set by pressing "ENT".
Use this function to define or modify a parameter set.
Use this function to display logged data on the graphic screen.
Use this function to delete a parameter set incl. logged data.
Use this function to initiate the start of recording for the data logger.
Note!
Observe the information on Page 78.
Choose this function to define a name for the data set. An alphanumeric on-
screen keyboard will assist you during entry. Choose "EXIT" to complete the
entry and close the on-screen keyboard.
Use this function to define the units for recording the volume flow. It is possi-
ble to log the volume flow in different units simultaneously. Select the desired
units in the sub-menu "UNIT VOLUME" and confirm by means of the "ENT"
key.
Metric options:
L/s – L/min – L/h – ML/d – m3/s – m3/min – m3/h – Mm3/d – BBL/s – BBL/min
– BBL/h – MBBL/d
US options:
gal/s – gal/min – gal/h – Mgal/d – ft3/s – ft3/min – ft3/h – Mft3/d – BBL/s –
BBL/min – BBL/h – MBBL/d
11 Description of device functions
Oper. Mode
Log Name
75
