Table 26: Environmental Specifications
Operating temperature
Storage temperature
Operating relative humidity
RPS-150XT Connector
See Figure 47 and
Note
The following information is for troubleshooting purposes only. For proper operation, use only
the RPS cable supplied with the RPS-150XT. This cable is specially designed for this
application and meets all necessary regulatory and safety standards.
Caution
The use of non-approved cables will void your warranty.

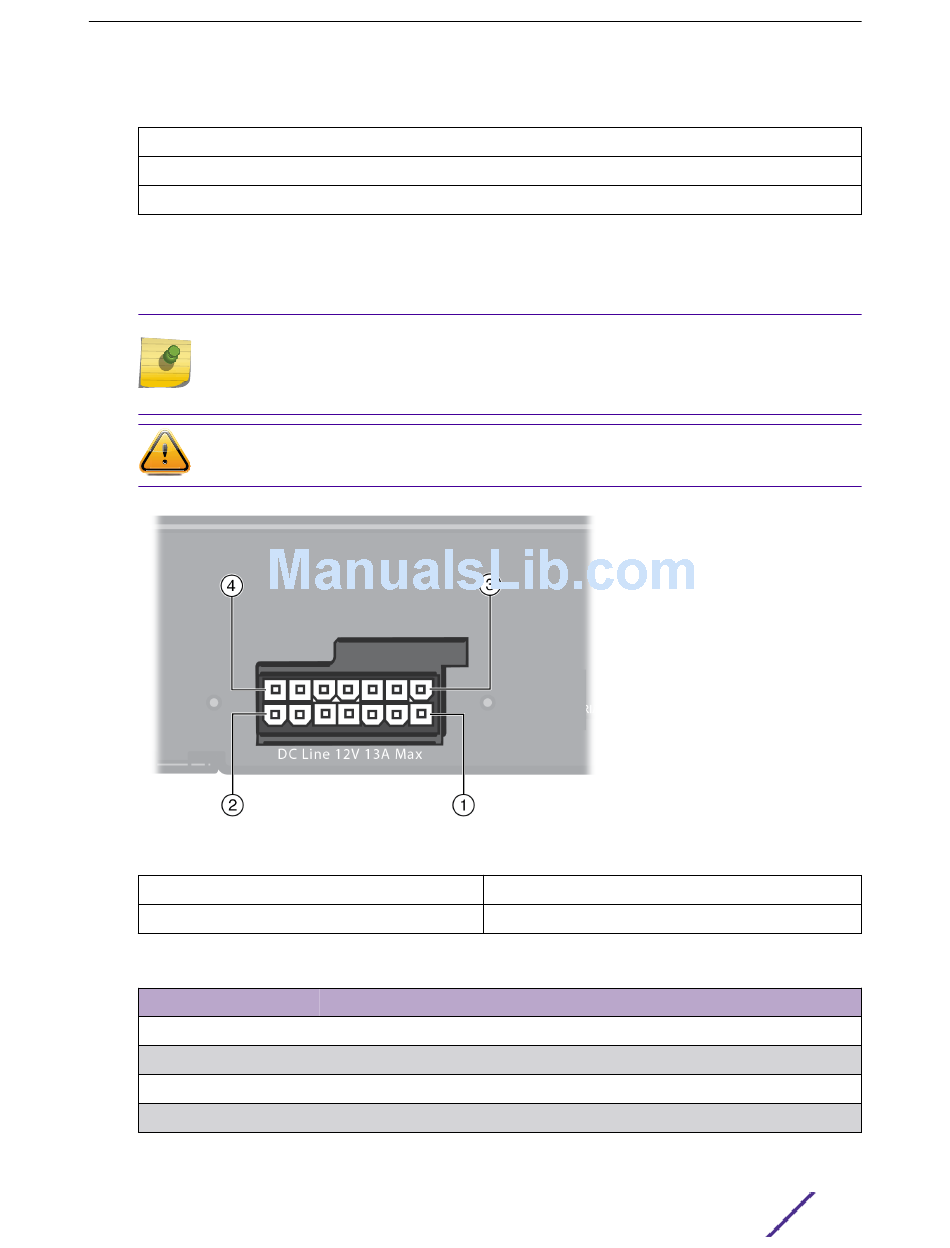

Figure 47: RPS-150XT Connector Pin Locations
1 = Pin 1
2 = Pin 7
Table 27: RPS-150XT Connector Pin Functions
Pin
1
2
3
4
ExtremeSwitching 210 and 220 Series Switches: Hardware Installation Guide
0°C to 60°C (32°F to 140°F)
-45°C to 85°C (-49°F to 185°F)
10% to 90% operating/95% non-condensing
Table 27 on page 75or pin locations and function.
Function
Ground
Spare pin
12 V power
12 V power
3 = Pin 8
4 = Pin 14
Pin
8
9
10
11
Technical Specifications
Function
Spare pin
Spare pin
Power present
Start 1
