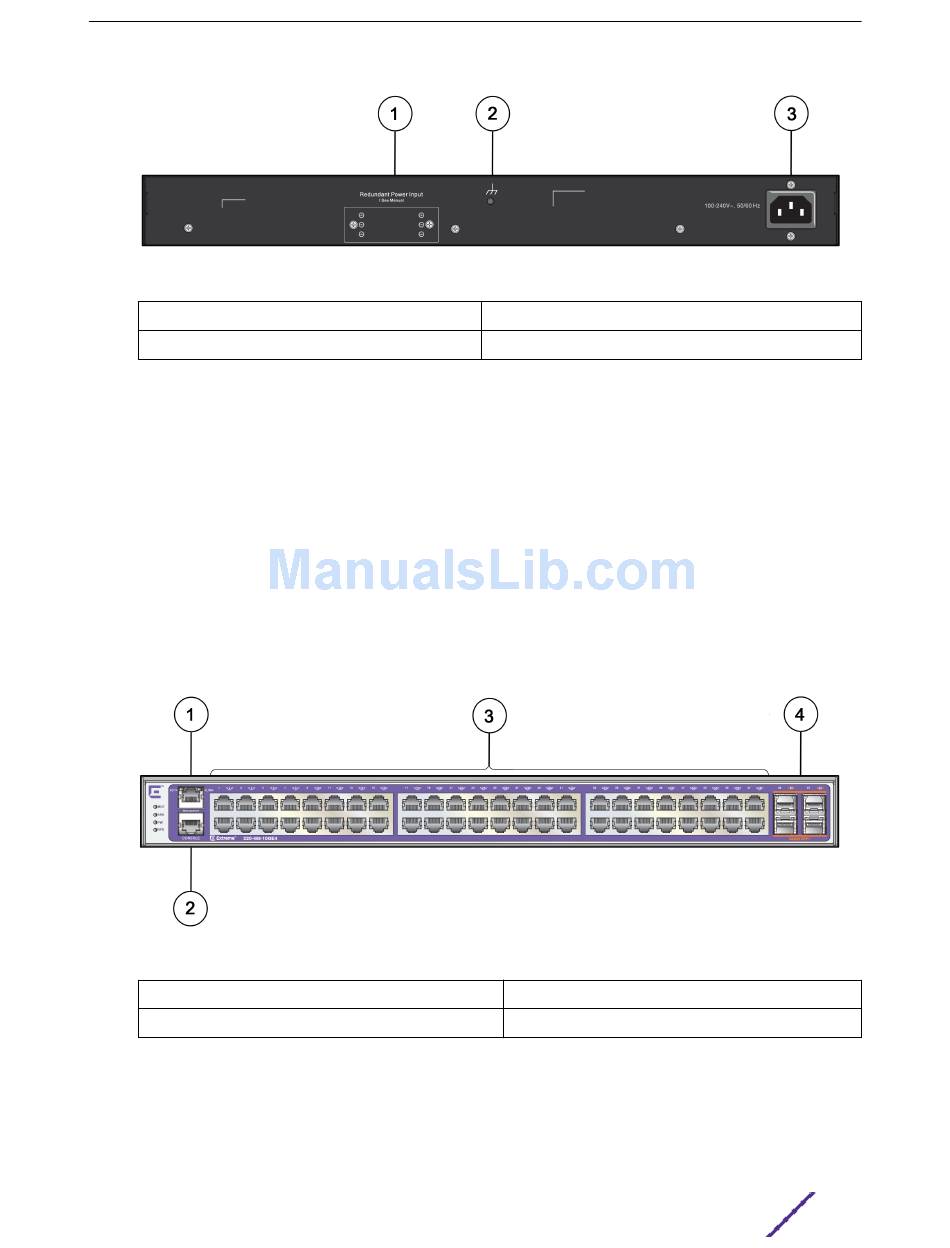

Figure 20: ExtremeSwitching 220-24p-10GE2 Switch Rear Panel
1 = Redundant power input
2 = Grounding point
ExtremeSwitching 220-48t-10GE4 Switch Ports and Slots
The ExtremeSwitching 220-48t-10GE4 switch ports and slots include:
•
48 10/100/1000BASE-T ports (ports 1–48) that provide 1 GbE connectivity
•
Four dedicated 10 GbE SFP+ ports (ports 49–52)
•
Ethernet management port (10/100BASE-T)
•
Serial console port used to connect a terminal and perform local management
•
LEDs to indicate switch operating conditions
•
One rear redundant power supply connector
For a description of the LEDs and their operation, see
LEDs on page 23.
Figure 21: ExtremeSwitching 220-48t-10GE4 Switch Front Panel
1 = Ethernet management port
2 = Console port
ExtremeSwitching 210 and 220 Series Switches: Hardware Installation Guide
ExtremeSwitching 210 and 220 Series Switches
3 = AC power input connector
ExtremeSwitching 210 and 220 Series Switch
3 = 10/100/1000BASE-T ports
4 = 10 GbE SFP+ ports
