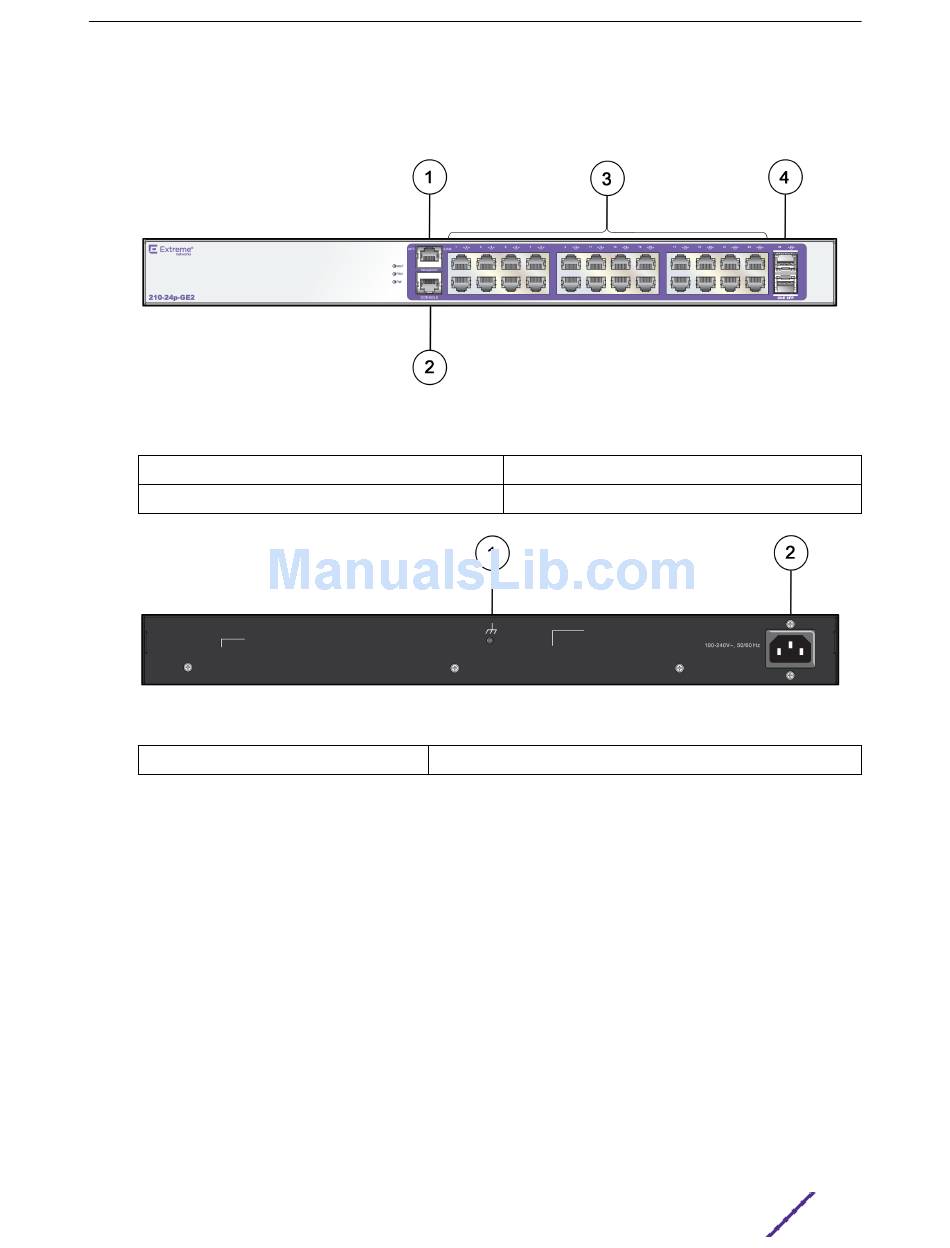

Figure 7: ExtremeSwitching 210-24p-GE2 Switch Front Panel
1 = Ethernet management port
2 = Console port
Figure 8: ExtremeSwitching 210-24p-GE2 Switch Rear Panel
1 = Grounding point
ExtremeSwitching 210-48t-GE4 Switch Ports and Slots
The ExtremeSwitching 210-48t-GE4 switch ports and slots include:
•
48 10/100/1000BASE-T ports (ports 1–48) that provide 1 GbE connectivity
•
Four dedicated 1 GbE SFP ports (ports 49–52)
•
Ethernet management port (10/100BASE-T)
•
Serial console port used to connect a terminal and perform local management
•
LEDs to indicate switch operating conditions
For a description of the LEDs and their operation, see
LEDs on page 23.
ExtremeSwitching 210 and 220 Series Switches: Hardware Installation Guide
ExtremeSwitching 210 and 220 Series Switches
3 = 10/100/1000BASE-T ports
4 = SFP ports
2 = AC power input connector
