Function description: Digital inputs/outputs

3.2 LED display

Direction
Output
Output
Input
Input

3.3 Connection examples

3.3.1 Digital inputs (24 V)

www.addi-data.com

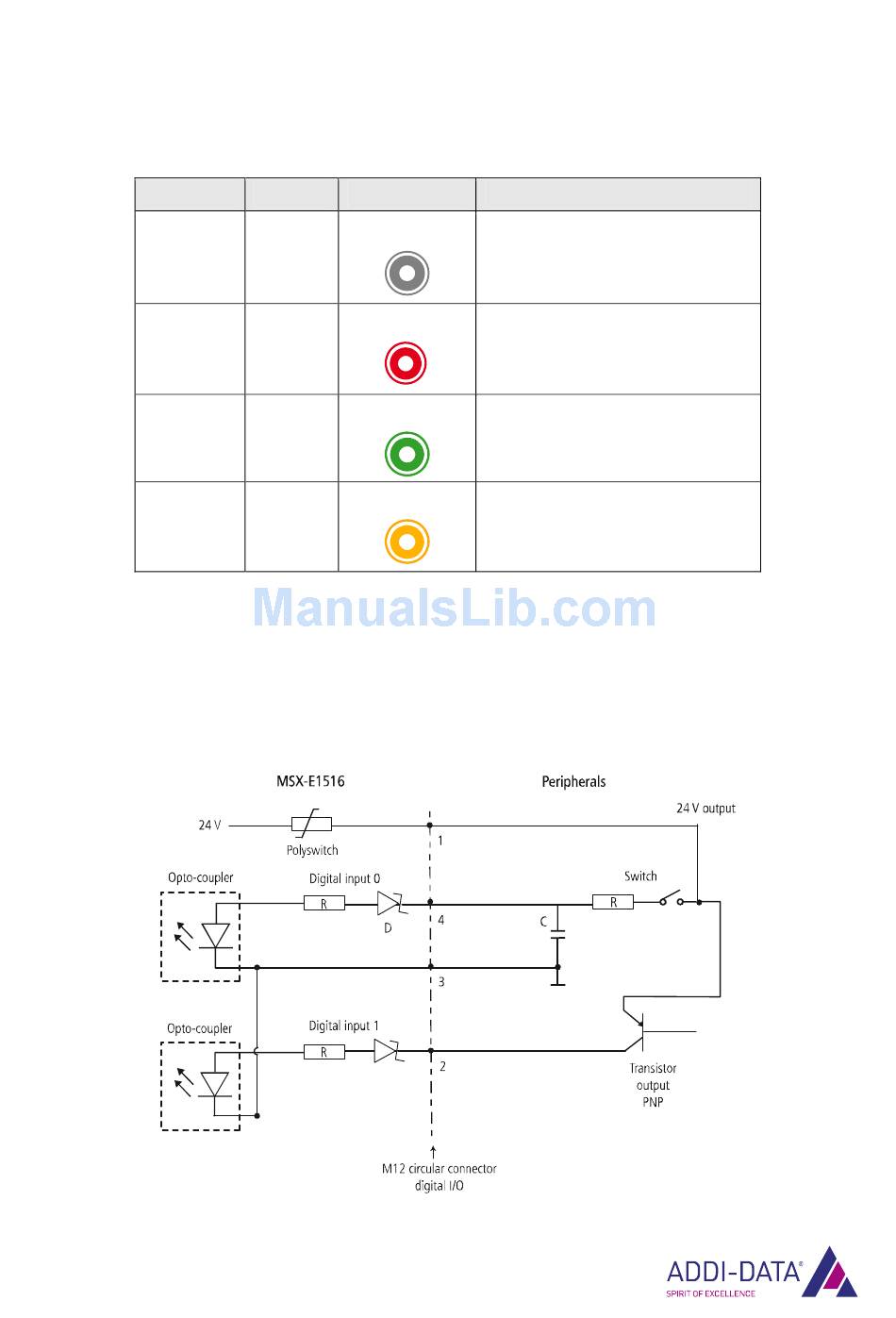

Table 3-2: LED display: Digital I/O

Status
LED
inactive
No display
active
Lights red
inactive
Lights green
active
Lights yellow

Fig. 3-1: Connection example: Digital inputs (24 V)

Meaning
- No output active
- No voltage applied
- Output is active
- No voltage applied
Caution, risk of short-circuit!
- Input is ready for operation
- Signals can be received
- Input is active
- Signal is being received
13
MSX-E1516
