3.2

Connecting Modules

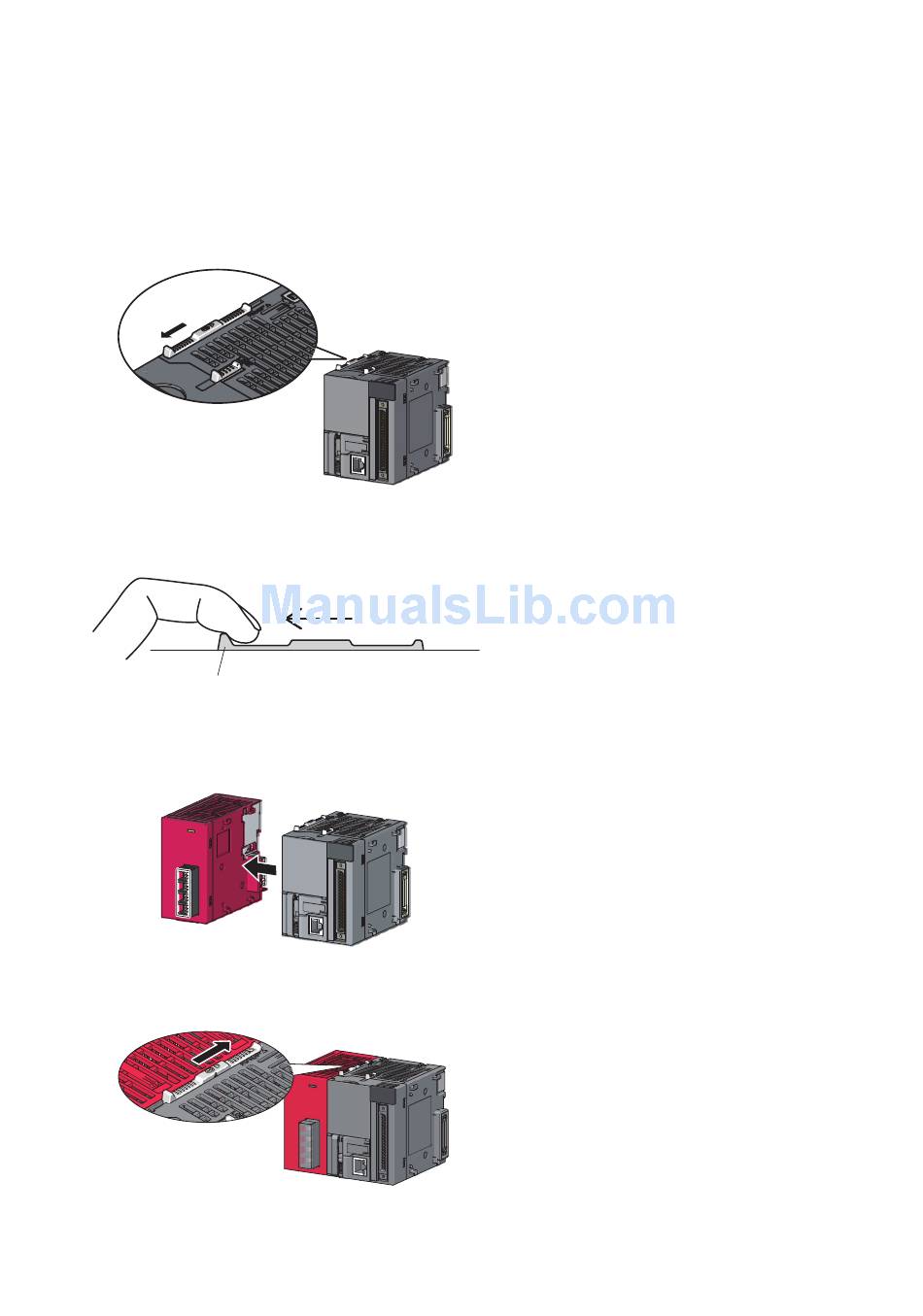

This section explains the procedure for connecting modules with an
example of how to connect the L02CPU with the L61P.
Shut off the external power supply for the system in all phases before
connecting modules.
Release
(1)
Lock
1. To release the module joint
levers located at the top and
bottom of the L02CPU:
2. Slide the levers toward the
front side of the module until
they click. To release the
levers, pull the projection (1)
of the lever.
3. Insert the connector of the
power supply module into that
of the CPU module so that
they are securely engaged.
4. To lock the module joint
levers:
