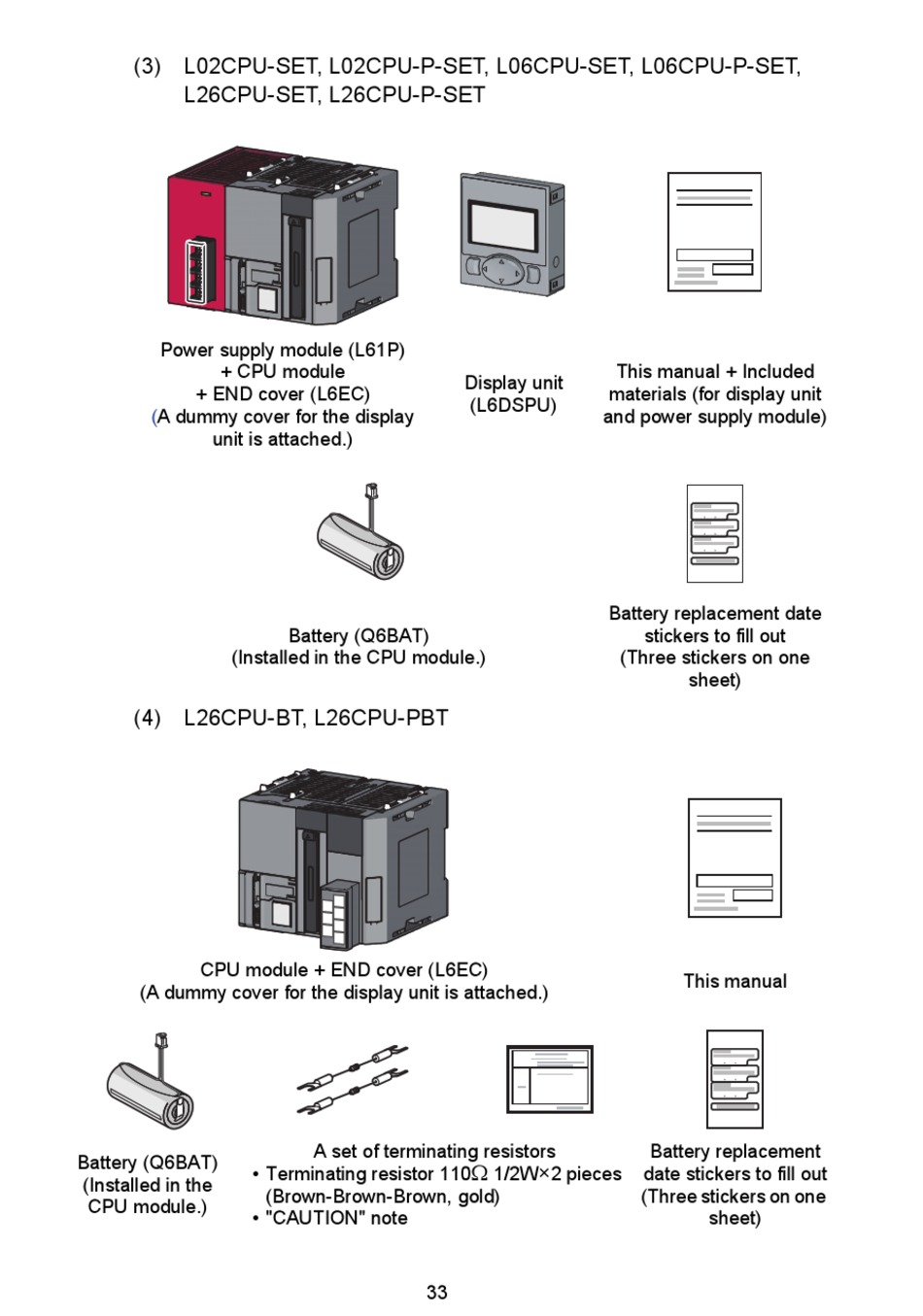

(3) L02CPU-SET, L02CPU-P-SET, L06CPU-SET, L06CPU-P-SET,
L26CPU-SET, L26CPU-P-SET
Power supply module (L61P)
+ CPU module
+ END cover (L6EC)
(A dummy cover for the display
unit is attached.)
(Installed in the CPU module.)
(4) L26CPU-BT, L26CPU-PBT
CPU module + END cover (L6EC)
(A dummy cover for the display unit is attached.)
Battery (Q6BAT)
(Installed in the
CPU module.)
Battery (Q6BAT)
A set of terminating resistors
• Terminating resistor 110
(Brown-Brown-Brown, gold)
• "CAUTION" note
Display unit
(L6DSPU)

×
1/2W 2 pieces
33
This manual + Included
materials (for display unit
and power supply module)
Battery replacement date
stickers to fill out
(Three stickers on one
sheet)
This manual
Battery replacement
date stickers to fill out
(Three stickers on one
sheet)
