Rear Panel - Solid State Logic Sigma Delta User Manual

r P
eAr ANeL
Footswitch
Miscellaneous
Returns and Inputs
Miscellaneous
Sends and Outputs
ALT L & r – Alternate monitor outputs
MON L & r – Main monitor outputs
MIX A L & r – Mix Bus A outputs
FOOTSwITCH input is suitable for any 1/4" on/off footswitch. By default this turns Talkback On/Off, although this can be
changed in the app.
DC input for use with the power supply provided. The clip above the power inlet should be used to retain the power lead
and so prevent accidental removal or damage.
rJ45 to connect Sigma to your computer network – use a standard Ethernet cable (as supplied).
USB and PrOG access are for SSL diagnostic use only.

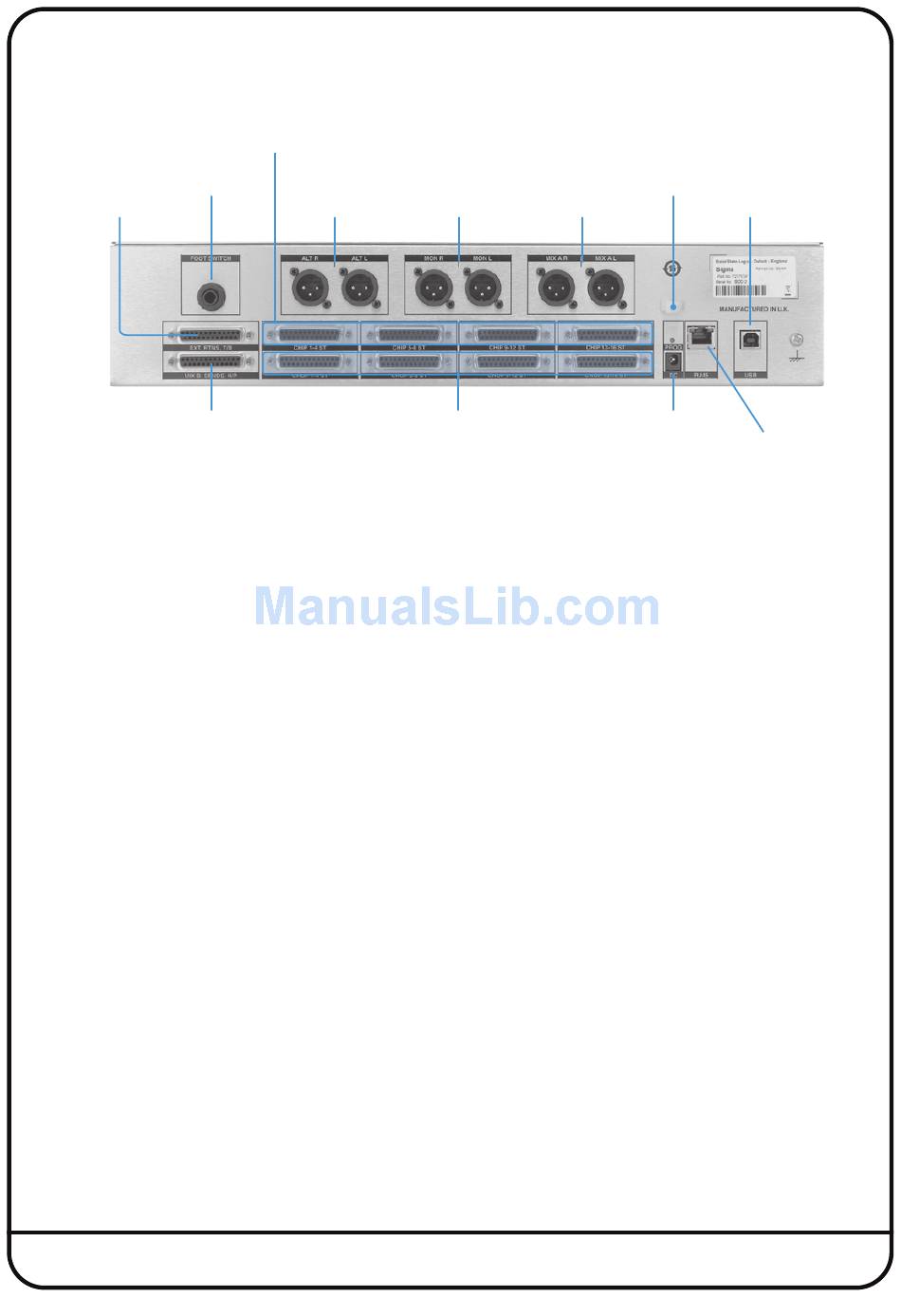

16 Stereo Channel Inputs
Input
Alternate
Monitor Output
Main Monitor
Output Mix A Output
16 Stereo Channel Outputs
Page 10
Clip to secure
power cable
Factory use only
Power Inlet
+12V DC Ethernet
