Console Overview

Rear Panel

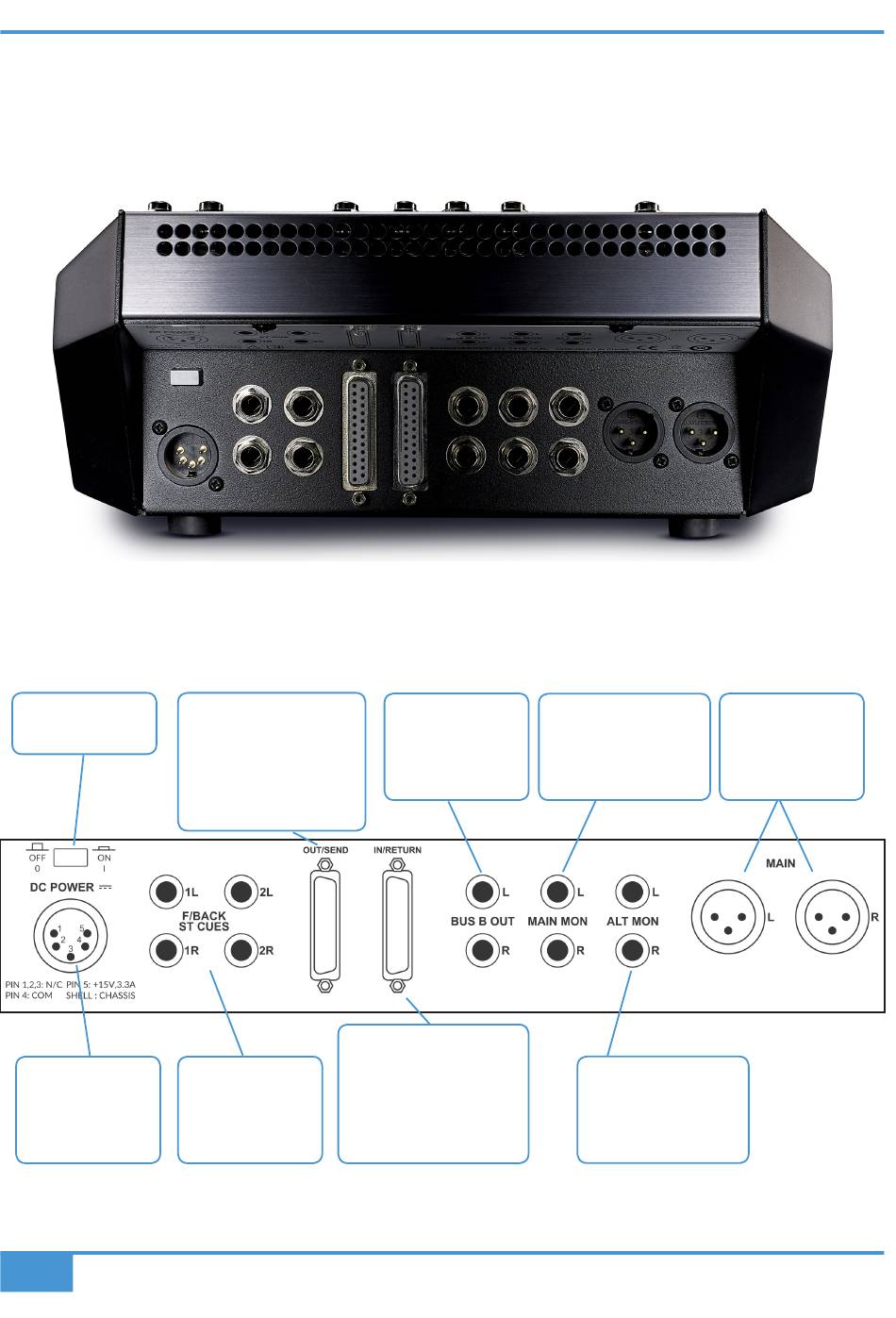

The rear panel of SiX is shown below. The connectors are identified on a panel that is fitted to the face above the connector panel.
DC Power Switch
DC Power
Connector
(5 Pin XLR)
4
Channel and Main
Balanced Insert Sends
Monitor OP Parallel
(See Appendix A for
Pinout)
Balanced Insert Returns
Foldback/Stereo
Cue 1 & 2 Outputs
(Balanced TRS
1/4" Jack)
Bus B Outputs
(Balanced TRS
1/4" Jack)
Channel and Main
Alternate Input 1 & 2
(See Appendix A for
Pinout)
Main Monitor Outputs
(Balanced TRS 1/4"
Jack)
Alternate Monitor
Outputs
(Balanced TRS 1/4"
Jack)
Main Bus Outputs
(Balanced Male
XLR, Pin 2 Hot)
