TVLogic LUM-550M Operation Manual

Multi format 4k lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Multi Format
4K LCD Monitor

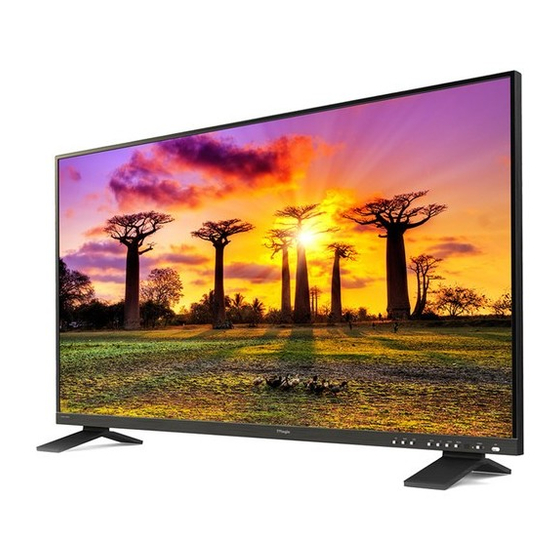

LUM-550M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUM-550M and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic LUM-550M

Summary of Contents for TVLogic LUM-550M

  • Page 1 Multi Format 4K LCD Monitor LUM-550M...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] MARKER [4] GPI [5] NETWORK [6] AUDIO [7] SYSTEM 6. Firmware Upgrade 7. Video Support Resolution 8. Product Specifi cations 4K LCD Monitior 3...

  • Page 4: Caution

    1. Caution Always use set voltage. • • If any of the following conditions occurs, unplug ● the power cord from the DC outlet, and request AC 100 ~ 240V ● a qualifi ed service person to perform repairs. • • All operating instructions must be read and understood before the product is operated.
  • Page 5 1. Caution • • When mounting the product on a wall or ceiling, • • Sudden stops, excessive force and uneven be sure to install the product according to the fl oor surface can cause the product to fall from method recommended by the manufacturer.

  • Page 6: Main Features

    2. Main Features LUM-550M Monitor contains the following features : Compatible with various SDI signal Auto Color Calibration support ● ● formats - Supports Auto Color Calibration by directly - This product is compatible with various connecting the color probes to the SDI signals - 480i, 576i, 1080i, 1080p, product.

  • Page 7: Controls & Functions

    3. Controls & Functions LUM-550M : FRONT MODE HDMI MENU DOWN ENTER POWER LUM-550M : REAR LUM-550M_REAR PLATE_V2.1 (2016/07/27) SDI IN SDI IN SDI IN SDI IN 12G-SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE CH 1...
  • Page 8 3. Controls & Functions FRONT [SDI] Button/Lamp [MENU] Button ● ● - Used to select SDI A/B input signal. - Used to activate the OSD menu. [MODE] Button/Lamp [UP] Button ● ● - Used to select the UD MODE. - Used to move up through the menus - Press the button to move through the during the OSD menu activation.
  • Page 9 - Used to update new program to add new functions and correct errors. [RS-422 PORT] (RJ-45) ● - Used to control the monitor with a protocol provided by TVLogic. [REMOTE] (RJ-45) ● - Provides connection to control equipment for external monitor control.

  • Page 10: Menu Tree & Adjustment

    4. Menu Tree & Adjustment [1] Menu Organization [3] Menu Control Sequence The product may be controlled and set Menu Control sequence follows the order ● system-wise through OSD displayed on below: the screen. - Below is the layout of the product’s menu. 1.
  • Page 11 4. Menu Tree & Adjustment [4] MENU TREE BRIGHT GPI 1 ~ GPI 8 CONTRAST GROUP ID PICTURE BACK LIGHT MONITOR ID TIMECODE RS-422 BAUD 4K MODE DHCP TEMP IP ADDR GAIN R SUBNET MARKER GAIN G GATEWAY GAIN B PORT COLOR BIAS R...

  • Page 12: Menu Operations

    5. Menu Operations [1] PICTURE PICTURE BRIGHT COLOR CONTRAST MARKER BACK LIGHT TIMECODE NETWORK 4K MODE 2 SAMPL INTL AUDIO SYSTEM BRIGHT ● - Used to set the brightness(=off set) level from -100 to 100. CONTRAST ● - Used to set the contrast(gain) level from -100 to 100.

  • Page 13: Video

    5. Menu Operations [2] COLOR BIAS R PICTURE TEMP 6500K ● - Used to set Red Bias(or Off set, mainly COLOR GAIN R MARKER GAIN G aff ects on Black level) from -128 to 127. GAIN B - Adjusts the red color of dark section. NETWORK BIAS R - Only available in CUSTOM 1/2/3 mode.

  • Page 14: Marker

    5. Menu Operations [3] MARKER PICTURE MARKER COLOR CENTER MARKER MARKER SAFETY AREA FIT MARKER NETWORK MARKER MAT AUDIO MARKER COLOR WHITE ● MARKER : 4:3 ● MARKER : 4:3 ● SAFETY AREA : 90% ● SAFETY AREA : 90% SYSTEM THICKNESS ●...

  • Page 15: Gpi

    5. Menu Operations [4] GPI The selectable functions for PIN 1~ PIN 6 PICTURE PIN 1 NONE ● are as follows: COLOR PIN 2 SDI A MARKER PIN 3 SDI B PIN 4 16:9 MAR Menu NETWORK PIN 5 15:9 MAR Classifi - Settable Values AUDIO...

  • Page 16: Network

    5. Menu Operations [5] NETWORK [6] AUDIO PICTURE DHCP DHCP PICTURE VOLUME COLOR IP (D) 192.168.101.156 COLOR AUD CH GR1 CH1+CH2 MARKER SUBNET 255.255.255.000 MARKER LVM TYPE GATWAY 192.168.101.001 LVM SIZE NETWORK PORT 10262 NETWORK AUDIO IP APPLY AUDIO SYSTEM SYSTEM DHCP VOLUME...

  • Page 17: System

    5. Menu Operations [7] SYSTEM NETWORK ● PICTURE DEFAULT - Displays the current network connection COLOR USER CONFIG USER 1 MARKER KEY LED setting. THROUGHOUT BY PASS NETWORK VERSION S04.F04.H05 MAC ADDR ● AUDIO INPUT NO INPUT - Displays the current network MAC ADDR. SYSTEM NETWORK DHCP 100M...

  • Page 18: Firmware Upgrade

    6. Firmware Upgrade [1] FIRMWARE UPGRADE The USB(Thumb drive) which contains the ● F/W fi le is needed for Firmware Upgrade. Select the SW UPGRADE in the SYSTEM ● menu. 1. Connect the USB to the USB Slot on the front of the monitor.

  • Page 19: Video Support Resolution

    7. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (12G SDI) 12G-SDI single link(4k) 3840x2160 (50/59.94/60p) YCbCr 4:2:2 10bit Input Signal Interfaces Signal Format (6G SDI) 6G-SDI single link(4k) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit Input Signal Interfaces Signal Format (3G_A SDI) 3G-SDI single link 1920x1080 (50/59.94/60p)
  • Page 20 7. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD SDI) 1920x1080 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit (50/59.94/60I) YCbCr 4:2:2 10bit HD SDI single link (25/29.97/30psf) YCbCr 4:2:2 10bit 1280x720 YCbCr 4:2:2 10bit (50/59.94/60P) Input Signal Interfaces Signal Format (HD-SDI) HD-SDI Quad link(4k) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit...

  • Page 21: Product Specifi Cations

    8. Product Specifications Size 55” Resolution 3840(H) x 2160(V) Pixels, RGBW stripe arrangement Pixel Pitch 0.315(H) x 0.315(W) mm Color Depth 1.07B colors Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 500 cd/ m (Center 1point ,Typ.) Contrast Ratio 1100:1...
  • Page 22 MEMO 22 4K LCD Monitor...
  • Page 24 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan-digital 1-ro, Geumcheon-gu, Seoul, 18590, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
