TVLogic LUM-181H Operation Manual

4k/uhd high luminance hdr emulation lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

4K/UHD High Luminance
HDR Emulation LCD Monitor
# Operation manual_V1.2
LUM-181H
LUM-181G
LUM-242H
LUM-242G
LUM-328G
LUM-550H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUM-181H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TVLogic LUM-181H

Summary of Contents for TVLogic LUM-181H

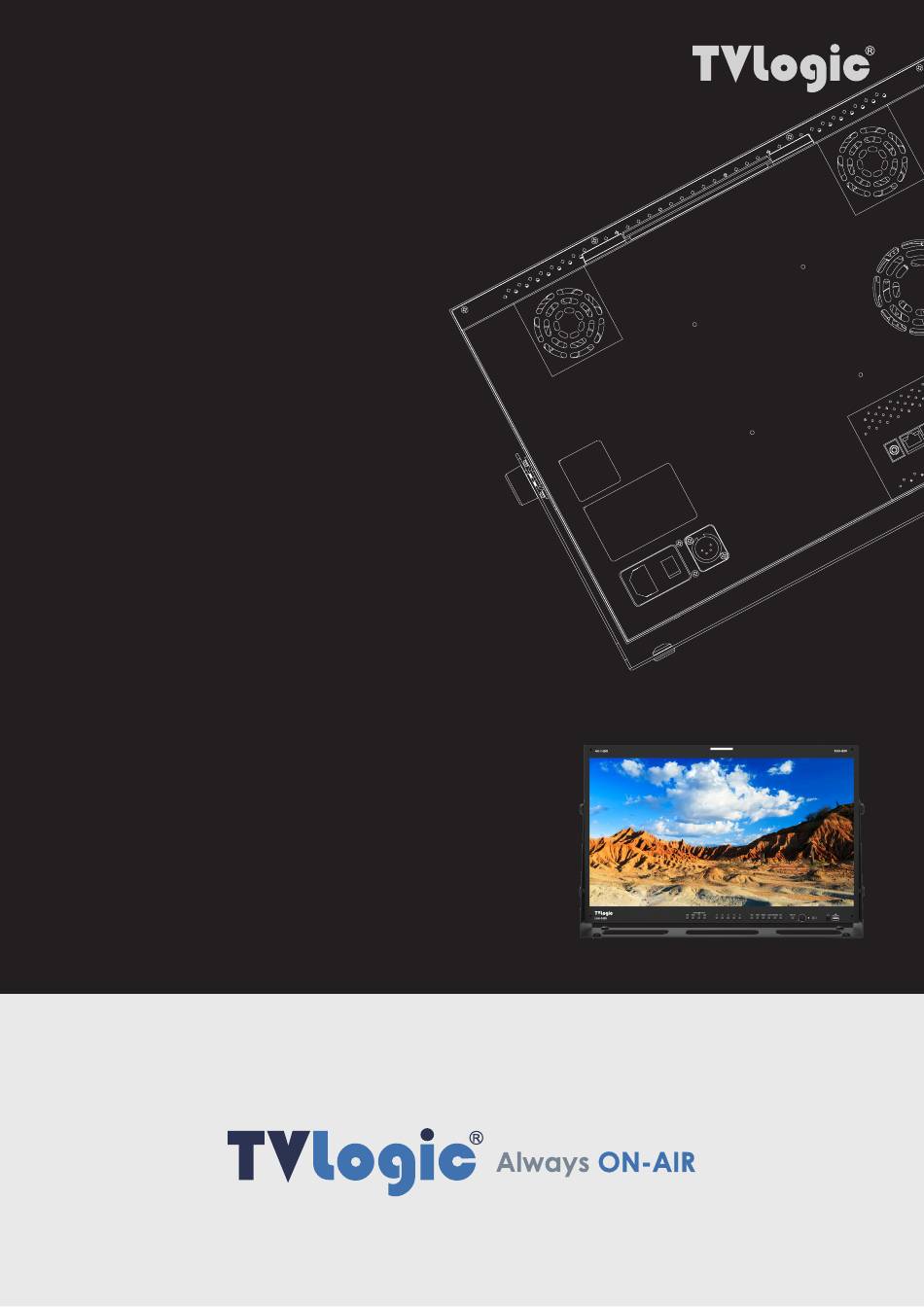

  • Page 1 4K/UHD High Luminance HDR Emulation LCD Monitor # Operation manual_V1.2 LUM-181H LUM-181G LUM-242H LUM-242G LUM-328G LUM-550H...
  • Page 2 FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interface when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Contents CAUTION MAIN FEATURES CONTROLS & FUNCTIONS MENU ORGANIZATION & ADJUSTMENT MENU OPERATIONS [1] PICTURE & VIDEO [2] COLOR [3] GPI [4] MARKER [5] WAVEFORM & FOCUS [6] AUDIO [7] DISPLAY & SET [8] INFORM VIDEO SUPPORT RESOLUTION PRODUCT SPECIFICATIONS...

  • Page 4: Caution

    Always use set voltage. ● unplug the power cord from the AC outlet, and request a qualified service person to LUM-181H perform repairs. - AC 100 ~ 240V (50~60Hz) a. When the power cord or plug in damaged. - DC 12V/8A ~ 24V/4A b.
  • Page 5 4K /UHD HDR Emulation LCD Monitor 01 CAUTION • Unplug the power cord from the AC outlet • The vents and other openings in the cabinet before cleaning the product. Use a damp cloth are designed for ventilation. Do not cover or to clean the product.
  • Page 6 4K /UHD HDR Emulation LCD Monitor 01 CAUTION VESA WALL MOUNTING...
  • Page 7 Do not tighten the screws too much. It may damage the monitor or make the monitor fall • and cause personal injury. Vidente(TVLogic) is not liable for these kinds of accidents. Remove the stand before installing the monitor on the wall using the wall mount kit.

  • Page 8: Main Features

    4K /UHD HDR Emulation LCD Monitor 02 MAIN FEATURES LUM-181H / 181G / 242H / 242G / 328G / 550H Monitor contains the following features: Compatible with various SDI signal Ethernet & USB support ● ● formats - Supports the Ethernet connection for...

  • Page 9: Controls & Functions

    SDI SINGLE B.LIGHT QUAD MARKER ASPECT HDMI INFO. SCAN SDI SINGLE VIDEO RANGE B.LIGHT QUAD MARKER LUM-181H : REAR ASPECT SCAN RS-422 IN RS-422 OUT RS-422 IN RS-422 OUT DC IN SDI-IN (A~D) SDI-OUT (A~D) AC IN DC IN SDI-IN (A~D)
  • Page 10 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-181G: FRONT MENU/EXIT MENU/EXIT ENTER ENTER LED (POWER INDICATOR) LED (POWER INDICATOR) POWER POWER HDMI INFO. HDMI INFO. SDI SINGLE VIDEO RANGE SDI SINGLE VIDEO RANGE B.LIGHT QUAD MARKER B.LIGHT ASPECT QUAD MARKER...
  • Page 11 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-242H: FRONT MENU/EXIT ENTER LED (POWER INDICATOR) MENU/EXIT POWER ENTER AUDIO OUT LED (POWER INDICATOR) POWER AUDIO OUT HDMI INFO. SDI SINGLE VIDEO RANGE B.LIGHT HDMI INFO. QUAD MARKER SDI SINGLE VIDEO RANGE ASPECT B.LIGHT...
  • Page 12 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-242G: FRONT MENU/EXIT ENTER MENU/EXIT ENTER POWER AUDIO OUT POWER AUDIO OUT HDMI INFO. SDI SINGLE VIDEO RANGE HDMI INFO. 2 SDI B.LIGHT SDI SINGLE VIDEO RANGE QUAD MARKER 2 SDI B.LIGHT ASPECT QUAD...
  • Page 13 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-328G: FRONT MENU/EXIT ENTER MENU/EXIT LED (POWER INDICATOR) ENTER POWER LED (POWER INDICATOR) AUDIO OUT POWER AUDIO OUT HDMI INFO. SDI SINGLE ASPECT HDMI INFO. SCAN SDI SINGLE ASPECT QUAD VIDEO RANGE SCAN QUAD...
  • Page 14 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-55OH: FRONT MENU/EXIT ENTER LED (POWER INDICATOR) POWER AUDIO OUT MENU/EXIT ENTER LED (POWER INDICATOR) POWER AUDIO OUT HDMI INFO. SDI SINGLE VIDEO RANGE B.LIGHT QUAD MARKER ASPECT HDMI INFO. SCAN SDI SINGLE VIDEO RANGE...
  • Page 15 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-181H / 181G / 242H / 242G / 328G / 550H : FRONT [HDMI] Button/Lamp ● 6) Luma(Y') Zone - Used to select HDMI input. - Refer to the page 24.
  • Page 16 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-181H / 181G / 242H / 242G / 328G / 550H : FRONT [SCAN] Button [MENU/EXIT] Button ● ● - Used to select [ Zero Scan ] and [ Over Scan ] .
  • Page 17 4K /UHD HDR Emulation LCD Monitor 03 CONTROLS & FUNCTIONS LUM-181H / 181G / 242H / 242G / 328G / 550H : REAR [REMOTE] (RJ-45) [AUDIO IN] ● ● - Provides connection to control - Used to connect the audio input signal.

  • Page 18: Menu Organization & Adjustment

    4K /UHD HDR Emulation LCD Monitor 04 MENU ORGANIZATION & ADJUSTMENT [1] Menu Organization [3] Menu Adjustment Procedure The product may be controlled and set by Menu control sequence follows the order ● ● OSD display on the screen. below: 1.
  • Page 19 4. Menu Organization & Adjustment 4K /UHD HDR Emulation LCD Monitor 04 MENU ORGANIZATION & ADJUSTMENT [4] Menu Tree Brightness PIN1~PIN8 Contrast Monitor ID Chroma DHCP PICTURE Aperture IP Address & VIDEO Aspect Subnet Mask 3G Format Gateway 4K Align Port NO.
  • Page 20 4K /UHD HDR Emulation LCD Monitor 04 MENU ORGANIZATION & ADJUSTMENT [4] Menu Tree Waveform Display User Config Set Waveform Intensity Internal Pattern Waveform Trans. (*Deactivated) System Default Waveform Color S/W Upgrade Line Waveform S/W Upgrade Start Line Select Position Time Code Luma(Y’) Zone Check Key Lock...

  • Page 21: Menu Operations

    [1] Picture & Video 4K Align ● - When the 4K 4096 x 2160(17:9) signal is input to the LUM-181H or LUM-242H whose resolution of the LCD panel is 3840 x 2160(16:0), the following four modes can be selected. [Center]: The input image is displayed as pixel to pixel, and the vertical 128 lines on the left end and right end are hidden.
  • Page 22 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [2] Color Black Level (Not supported) ● LUM-181H - The minimum black level of the video signal can be set differently Standard depending on the performance of the Video Range Narrow 109% monitor or the lighting environment.
  • Page 23 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [2] Color LUM-181H Gamut Warning EETF Gain/Offset Default Reset Gamut Warning ● - Used to display warning when the input colors exceeds the permissible range of the panel color gamut. - Available modes are [OFF] and [ON].
  • Page 24 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [2] Color Bias Red ● LUM-181H - Used to set Red Bias from [ -256 ] to [ 255 ] . - Adjusts the red color of dark section. Gain/Offset Default...
  • Page 25 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [3] GPI PIN No. Settable Values NONE SINGLE-SDI 2SI-SDI QUAD-SDI HDMI ASPECT H/V DELAY BLUE ONLY This item activates/ inactivates the ● MONO REMOTE function. 16:9 MARKER The user may designate a function for 4:3 MARKER ●...
  • Page 26 ● - This item sets the ID of each monitor for the - Used to set UMD and ANC. TVLogic control protocol using RS-422/485 - Available modes are [OFF], [UMD] and [ANC]. communication. * [UMD] : Displays user customized 8 characters - Available values are [0~127].
  • Page 27 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [4] Marker Fit Marker ● - Used to activate or inactivate the FIT MARKER function. - When the Marker type is selected in the Marker menu, a border line of the Safety Area will be displayed inside the Marker.
  • Page 28 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [4] Marker USER Marker H1 ● - Used to set the position of the first horizontal marker line. - Displayed when MARKER menu is set to USER. USER Marker H2 ● - Used to set the position of the second horizontal marker line.

  • Page 29: Waveform & Focus 29P

    4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [5] Waveform & Focus Waveform Trans. (Not Supported) ● - Controls the transparency level of the Waveform/Vectorscope. - Available values are OPAQUE and TRANS. * If the option is set to OPAQUE, the main OSD will overlap with the waveform/vector.
  • Page 30 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [5] Waveform & Focus [(Color Patt.) On] mode ● - Pixels with Y’ levels which are designated by the user are displayed in following colors - yellow, pink, cyan. - Factory Default Y’ (Border line between pink and yellow) level is [0]%.
  • Page 31 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [5] Waveform & Focus Focus Assist Level ● - Used to set the edge difference value between the edges in an image. - Available values are from [0] to [100]. Larger value means more sophisticated detail detection.
  • Page 32 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [6] Audio Level Meter Size ● - Used to control the size of the Audio Level Meter - Available modes are [Small], [Small Trans.], [Normal], [Normal Trans.], [Large], [Large Trans.]. - In Small, Normal and Large modes, the level meter appears opaque.

  • Page 33: Display & Set 33P

    4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [7] Display & Set Key Lock ● - Used to lock all buttons except Power, Input select and Menu buttons. Key LED ● - Used to control the Key Lamp on the front of the monitor.
  • Page 34 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [7] Display & Set LUM-181H LUM-181H Closed Caption [F1] Key Mapping Marker Decode Channel(608) [F2] Key Mapping Waveform Caption Service(708) Service 1 [F3] Key Mapping Video Range OSD position Center [F4] Key Mapping...
  • Page 35 4K /UHD HDR Emulation LCD Monitor 05 MENU OPERATIONS [8] Inform. (INFO. KEY) Bit Depth ● - Displays the Bit Depth information of the Payload ID Byte 4. Link Assignment ● - Displays the Channel Assignment information of the Payload ID Byte 4. Input Channel ●...

  • Page 36: Video Support Resolution

    4K /UHD HDR Emulation LCD Monitor 06 VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160 (23.98/24/25/29.97/30p/Psf) HD-SDI YCbCr 4:2:2 10bit Quad link (4K) 4096x2160 (23.98/24/25/29.97/30p/Psf) Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160(50/59.94/60p) YCbCr 4:2:2 10bit 3840x2160 YCbCr 4:4:4 10/12bit...
  • Page 37 4K /UHD HDR Emulation LCD Monitor 06 VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HDMI) 720x480(60i) RGB 4:4:4 8/10/12bit 720x576(50i) YCbCr 4:4:4 8/10/12bit 720x480(60p) 720x576(50p) RGB 4:4:4 8/10/12bit 1280x720(60p) YCbCr 4:4:4 8/10/12bit 1920x1080(50/59.94/60i) YCbCr 4:2:2 12bit 1920x1080(50/59.94/60p) HDMI 800x600@60Hz Single link(4K) 1024x768@60Hz VESA...

  • Page 38: Product Specifications

    4K /UHD HDR Emulation LCD Monitor 07 PRODUCT SPECIFICATIONS...
  • Page 39 4K /UHD HDR Emulation LCD Monitor 07 OPTIONAL ACCESSORIES...
  • Page 40 4K /UHD HDR Emulation LCD Monitor 07 PRODUCT SPECIFICATIONS...
  • Page 41 4K /UHD HDR Emulation LCD Monitor 07 OPTIONAL ACCESSORIES Specifications LUM-242G Size 23.8” Resolution 3840 X 2160 (16:9) Pixel Pitch 0.137(H) X 0.137(V) mm Color Depth 1.07B Viewing Angle 178°(H) / 178°(V) Luminance of white 540 cd/ m (Center) Contrast Ratio 1200 : 1 Display Area 526(H) X 296(V) mm...
  • Page 42 4K /UHD HDR Emulation LCD Monitor 07 PRODUCT SPECIFICATIONS...
  • Page 43 4K /UHD HDR Emulation LCD Monitor 07 OPTIONAL ACCESSORIES...
