Multi Format
4K LCD Monitors
Operation Manual
LUM-560W
multi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUM-560W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TVLogic LUM-560W

Summary of Contents for TVLogic LUM-560W

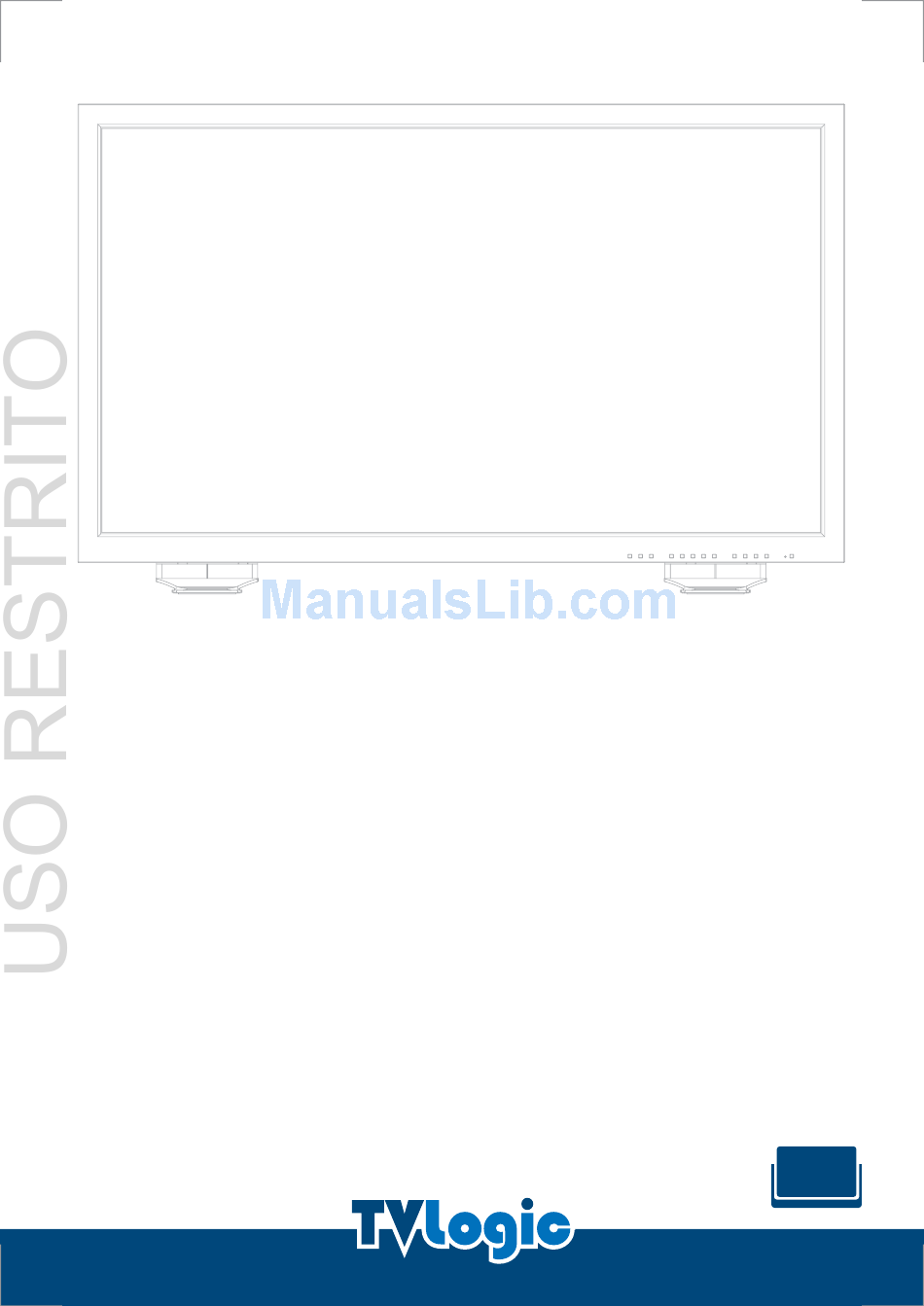

  • Page 1 Multi Format 4K LCD Monitors Operation Manual LUM-560W multi...

  • Page 3: Table Of Contents

    Contents CAUTION FEATURES CONTROLS, INDICATORS AND CONNECTIONS MENU LAYOUT & ADJUSTMENT MENU CONTENTS MENU CONTENTS OTHER FUNCTIONS DVI DIGITAL SUPPORT RESOLUTION PRODUCT SPECIFICATIONS LVM SERIES PRODUCT LINEUP OPTIONAL ACCESSORY FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Caution

    Caution L L A W W Y A A S Y Y USE SET E E VOLT L L A T T GE. AC 100 ~ 240V All operating instructions must be read and understood before the product is operated. These safety and operating instructions must be kept in safe place for future reference.
  • Page 5 Caution In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

  • Page 6: Features

    - This product can be remote controlled simply with a cable connection without any additional peripheral equipment attached to the unit. RS422 feature support - This product supports protocols provided by TVLogic or a TSL protocol. RS232 support - Supports ethernet based program download & calibration.

  • Page 7: Controls, Indicators And Connections

    Controls, Indicators and Connections LUM-560W : FRONT POWER HDMI ENTER F1/MODE DOWN F2/SCAN MENU F3/ASPECT F5/BLUE ONLY F4/MARKER LUM-560W : REAR AUDIO IN AUDIO OUT SDI A IN HDMI D IN SDI A OUT DVI D IN DVI A IN...
  • Page 8 Controls, Indicators and Connections FRONT [DVI] Button/Lamp - Used to select DVI input. By pressing the DVI button, depending on selected mode (UD, QUAD or Single), previously selected DVI input selection displays. - In Single Mode, press DVI button continuously to switch through DVI A~D. [HDMI] Button/Lamp - Used to select HDMI input.
  • Page 9 Controls, Indicators and Connections 5) [H/V DELAY] Button/Lamp - Used to check horizontal and vertical sync simultaneously by moving the screen up/down/left/right. - In this mode, the brightness of image automatically increase for easy verification of synchro- nized signals. 6) FREEZE - Captures still frame on-screen.
  • Page 10 Controls, Indicators and Connections [ENTER] Button - Used to confirm a chosen value (or mode). - May also be used to control the VOLUME value during OSD menu inactivation. Use UP/DOWN keys to adjust VOLUME value. [OPERATE] Lamp - Indicates condition and power status of unit. - Light turns off when the power is disconnected.
  • Page 11 - Features can be changed in the REMOTE(1/2) section of OSD menu. [RS422 IN/OUT] (RJ-45) - Used to control the monitor with protocol provided by TVLogic or to support TSL protocol. [RS232] (D-SUB 9Pin) - Used for ethernet based firmware updates and automatic alignment.

  • Page 12: Menu Layout & Adjustment

    5. Press ENTER to save the new value after adjusting the value with UP/DOWN button. (Verified by highlighted field returning to default black color) 6. Press MENU to remove OSD menu from the screen. 4) Main Menu Window Information Current input signal (Indicates as UD XXX in UD mode) Model name (LUM-560W) Current input signal resolution...

  • Page 13: Menu Contents

    Menu Contents [1] PICTURE Below is the description of the PICTURE menu. SDI A LUM-560W 1080/60p BRIGHT CONTRAST CHROMA APERTURE BRIGHT - This item controls the degree of brightness between MIN(-100) and MAX(100). CONTRAST - This item controls the contrast ratio between MIN(-100) and MAX(100).
  • Page 14 Memu Contents [2] VIDEO Below is the description for each function of the VIDEO menu. SDI A LUM-560W 1080/60p DITHERING ILTER ORCE p ILM MODE DETECTION AUTO ORMAT NORMAL MODE OUTPUT MODE SELECT NORMAL D I INPUT ORMAT SELECT RGB INPUT MODE...
  • Page 15 Menu Contents [3] COLOR Below is the description for each function of the COLOR menu. SDI A LUM-560W 1080/60p COLOR TEMP 6500 GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE COLOR COP 6500 LIGHT COLOR TEMP - This item controls color temperature and allows instant access to preset color temperature settings.
  • Page 16 Menu Contents BIAS RED - This item adjusts black level to control red color. The value is selectable between Min(-50) and MAX(50). - Adjusts red color of dark section. - Only available in CUSTOM 1/2/3 mode. BIAS GREEN - This item adjusts black level to control green color. The value is selectable between Min(-50) and MAX(50).
  • Page 17 Menu Contents [4] DISPLAY Below is the description for each function of the DISPLAY menu. SDI A LUM-560W 1080/60p HD DISPLA MODE MONITOR ID PASSWORD IP ADDRESS 55 1 8 SUBNET MAS GATEWA PORT NO 10 6 HD DISPLAY MODE - Controls the display ratio in HD mode.
  • Page 18 Menu Contents [5] GPI Below is the description of the GPI menu. SDI A LUM-560W 1080/60p PIN 1 ANALOG CHANNEL MODE CHANNEL PBP CHANNEL TALL PIN 5 TALL PIN 6 UNDER SCAN POWER ON PIN 8 - This menu sets the use of REMOTE function.
  • Page 19 Menu Contents [6] MARKER Below is the description for each function of the MARKER menu. SDI A LUM-560W 1080/60p PAGE I PAGE II MAR ER CENTER MAR ER SA ET AREA IT MAR ER MAR ER MAT MAR ER COLOR...
  • Page 20 - Available colors are white, gray, black, red, green and blue. MARKER THICKNESS - This item controls the thickness of the MARKER lines. - The degrees of thickness are between (1) and (7). SDI A LUM-560W 1080/60p PAGE I PAGE II USER MAR ER H1...
  • Page 21 Menu Contents [7] INFORM. Below is the description for each function of the INFORM. menu. SDI A LUM-560W 1080/60p PAGE I PAGE II F1 KEY SETTING UD MODE F2 KEY MAPPING UNDER SCAN F3 KEY MAPPING ASPECT F4 KEY MAPPING...
  • Page 22 Menu Contents [8] AUDIO Below is the description of the AUDIO menu. SDI A LUM-560W 1080/60p OLUME AUDIO LE T AUDIO RIGHT SPEA ER OUT SELECT AUTO SELECT VOLUME - This item controls the embedded audio output volume for the internal speakers and [AUDIO OUT] on the back of the monitor.
  • Page 23 Menu Contents [9] SYSTEM Below is the description for each function of the SYSTEM menu. SDI A LUM-560W 1080/60p PAGE I PAGE II USER CON IG SET LOCK NUMBER LOCK ENABLE -------- OSD DISPLAY CONTINUE OSD POSITION CENTER INTERNAL PATTERN...
  • Page 24 Menu Contents SDI A LUM-560W 1080/60p PAGE II PAGE I BOARD ERSION 0001 0101 0 01 5 MAIN UD MODE BRIG CONT COLOR 6500 SCAN O ER BOARD VERSION - Displays applied PROGRAM VERSON. 0001 0101 0.01 5 KEYPAD VERSION...

  • Page 25: Other Functions

    Other Functions [1] F1(MODE) BUTTON F1(MODE) settings are as followed. 1. F1 key is used to select the screen configuration. - Selects order of operation: UD MODE -> QUAD MODE -> SINGLE MODE 2. UD MODE - This mode displays 4 input signals to original 4K(3840x2160) image. - Once UD MODE is selected, press DVI, HDMI or SDI button on the front of the panel to select and swtich the input source.
  • Page 26 Other Functions 4. SINGLE MODE - After selecting SINGLE MODE, pressing DVI, HDMI or SDI button switches the input source in the order of A->B->C->D . - Selected input signal displays on 80%(3200 x 1800) of 4K(3840 x 2160) screen with its original aspect ratio.
  • Page 27 Other Functions [2] SCAN BUTTON (APPLY AFTER F2~F5 KEY MAPPING) This product supports various scan modes. Press [SCAN] button on the front of the monitor to activate different scan modes. Key mapping can be set in the MENU. 1. Press [SCAN] button continuously to activate various scan modes (selected sequentially) : SDI, DVI,HDMI : OVER SCAN ->...
  • Page 28 Other Functions [3] ASPECT BUTTON 1. Two different aspect modes are available. - 4:3 mode : Cuts left and right of the original image to fit to 4:3 aspect ratio. - 16:9 mode : Stretches the image in “1) 4:3 mode” to fit to 16:9 aspect ratio.

  • Page 29: Dvi Digital Support Resolution

    DVI DIGITAL Support Resolution DVI DIGITAL SUPPORT RESOLUTION DVI DIGITAL Graphic mode support resolution : SDI A LUM-560W 1080/60p Resolution Frequency 640 × 480 60Hz, 75Hz 800 × 600 60Hz, 72Hz, 75Hz 1024 × 768 60Hz, 70Hz, 75Hz 1366 x 768...

  • Page 30: Product Specifications

    Product Specifications * Above specifications may be changed without notice.

  • Page 31: Lvm Series Product Lineup

    LVM Series Product Lineup LVM-071W 1. LCD Resolution : 800 x 480 (15:9) 2. Color : 16.7M(true), 24bit 3. Contrast - 300:1 SDI A LUM-560W 1080/60p 1080/60p 1080/60p 1080/60p 1080/60 4. Viewing Angle : H(130)/ V(115) 5. Weight : 1Kg (2.2 Ibs) LVM-084 1.
  • Page 32 LVM Series Product Lineup LVM-323W-3G 1. LCD Resolution : 1920 x 1080 (16:9) 2. Color : 1 Billion(30bit, Dither) 3. Contrast - 1100:1 4. Viewing Angle : 178 5. Weight : 27Kg (47.3 Ibs) LVM-403W-3G 1. LCD Resolution : 1920 x 1080 (16:9) 2.

  • Page 33: Optional Accessory

    Optional Accessories 7” 9” ND Filter 17” 24” 40” 7” 9” 17” 24” External Filter Rack-Mountable Kit 46” 57” 7” 9” 17” 17” 7” 9” Tripod Head V-Mount Hood-&-Handle 17” 24” 32” 40” 46” 57” Carrying Case RACK MOUNT ANY DISPLAY UP TO 24” 7 inch 9 inch 17 inch...
  • Page 34 Memo...
  • Page 36 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.co.kr Developed by #914 Namsung Plaza(Ace Techno Tower 9), 345-30 Gasan-dong, Geumcheon-gu, Seoul, 153-782, KOREA Tel : +82-2-2026-1333, Fax : +82-2-2026-1339, Email: support@tvlogic.co.kr...
