TVLogic LUM-242G Operation Manual

Multi format 4k lcd monitor
Hide thumbs Also See for LUM-242G:
Table of Contents

Advertisement

Quick Links

Multi Format
4K LCD Monitor
Operation Manual_V1.0
LUM-242G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUM-242G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TVLogic LUM-242G

Summary of Contents for TVLogic LUM-242G

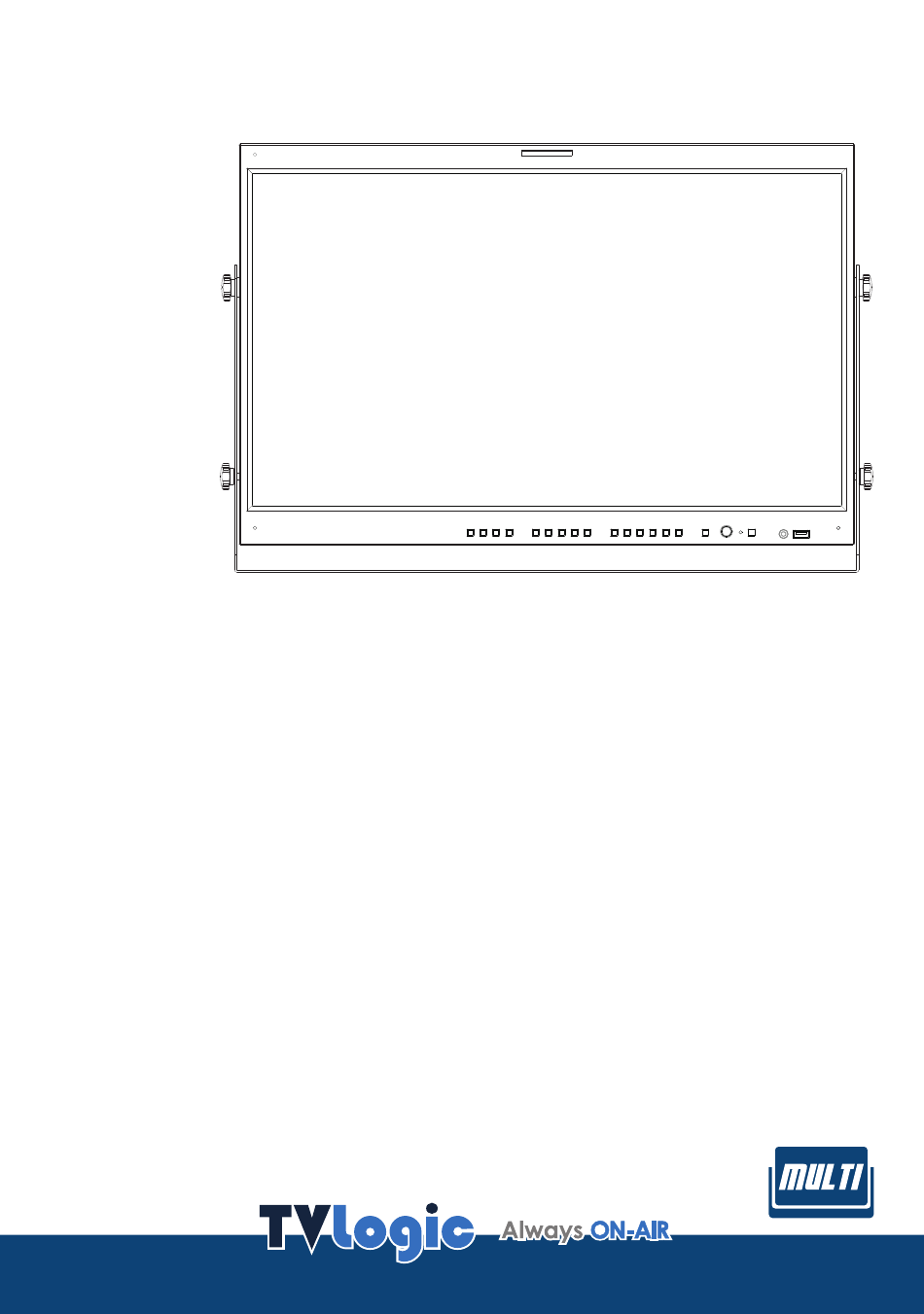

  • Page 1 Multi Format 4K LCD Monitor Operation Manual_V1.0 LUM-242G...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Organization & Adjustment 5. Menu Operations [1] Picture & Video [2] Color [3] GPI [4] Marker [5] Waveform & Focus [6] Audio [7] Display & Set [8] Inform. 6.

  • Page 4: Caution

    1. Caution Always use set voltage. • If any of the following conditions occurs, ● unplug the power cord from the AC outlet, and AC 100 ~ 240V ● request a qualified service person to perform repairs. • All operating instructions must be read and a.
  • Page 5 1. Caution • Unplug the power cord from the AC outlet • When relocating the product placed on a cart, before cleaning the product. Use a damp cloth it must be moved with the utmost care. to clean the product. Do not use liquid cleaners Sudden stops, excessive force and uneven floor or aerosol cleaners.

  • Page 6: Main Features

    2. Main Features LUM-242G Monitor contains the following features: Compatible with various SDI signal Ethernet & USB support ● ● - Supports Ethernet and USB connection for formats program download, monitor control and - This product is compatible with various SDI color calibration.

  • Page 7: Controls & Functions

    2 SDI B.LIGHT 2 SDI B.LIGHT QUAD MARKER QUAD MARKER ASPECT ASPECT SCAN SCAN LUM-242G : REAR DC OUT DC OUT RS-422 IN RS-422 IN RS-422 OUT RS-422 OUT SDI-IN (A~D) SDI-IN (A~D) SDI-OUT (A~D) SDI-OUT (A~D) DC IN DC IN...
  • Page 8 3. Controls & Functions FRONT [HDMI] Button/Lamp [F1 ~ F5] Button/Lamp ● ● - Used to select HDMI input. - Shortcut key for KEY MAPPING feature in the OSD MENU. - Selectable options are as follows : [SINGLE-SDI] Button/Lamp ● - Used to select SDI input for one channel.
  • Page 9 3. Controls & Functions FRONT [ASPECT] Button [MENU/EXIT] Button ● ● - Used to select ASPECT mode. Available - Used to activate/deactivate the OSD menu. aspect modes are 16:9, 4:3, 2.35:1, 1.85:1, 15:9, - Press the MENU button again to deactivate 16:10 and Auto.
  • Page 10 3. Controls & Functions LUM-242G : REAR [REMOTE] (RJ-45) [AUDIO IN] ● ● - Provides connection to control - Used to connect the audio input signal. equipment(parallel switch) for external monitor control. [LAN] ● - Features can be changed in the GPI section of - Used to control the monitor with a protocol the OSD menu.

  • Page 11: Menu Organization & Adjustment

    4. Menu Organization & Adjustment [1] Menu Organization [3] Menu Adjustment Procedure The product may be controlled and set by Menu control sequence follows the order ● ● OSD display on the screen. below: 1. Press the MENU button to activate the OSD menu.
  • Page 12 4. Menu Organization & Adjustment [4] Menu Tree Brightness PIN1~PIN8 Contrast Monitor ID Chroma DHCP PICTURE &VIDEO Aperture IP Address Aspect Subnet Mask 3G format Gateway Standard Port No Video Range Network settings apply Luminance UMD Display Black Level UMD Character EOTF UMD Character Color EETF...
  • Page 13 4. Menu Organization & Adjustment [4] Menu Tree Waveform Display User Config Set Waveform Intensity Internal Pattern Waveform Trans. System Default Waveform Color S/W Upgrade Line Waveform S/W Upgrade Start Line Select Position Time Code Luma(Y) Zone Check Key Lock WAVEFORM &...

  • Page 14: Menu Operations

    5. Menu Operations [1] PICTURE & VIDEO 3G Format ● - Automatically detects when Payload signal appears in Normal Mode. - Selects input format for SDI 3G A/B support (NORMAL MODE, A 444 10BIT_YCbCr, A 444 10BIT_RGB, A 444 12BIT_YCbCr, A 444 12BIT_ RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_ YCbCr, B 444 10/12BIT_RGB, B 422 12BIT_ YCbCr, B 422 10BIT_YCbCr, 60P).

  • Page 15: Color

    For example, the lowest luminance that the LUM-242G can display is 0.002, but it is necessary to adjust the offset level to about 0.2nit when using under bright light.
  • Page 16 5. Menu Operations [2] COLOR Gamut Control ● - Used to control the color gamut differences between the panel and the standard to reproduce the high quality digital color. - Clipping : Panel Any colors that exceed the panel color gamut get clipped to a maximum value.
  • Page 17 5. Menu Operations [2] COLOR Bias Red ● - Used to set Red Bias from -100 to 100. - Adjusts the red color of dark section. - Only available in User mode. Bias Green ● - Used to set Green Bias from -100 to 100. - Adjusts the green color of dark section.

  • Page 18: Gpi

    5. Menu Operations [3] GPI Menu Classifi- Settable Values cation NONE SINGLE-SDI 2SI-SDI QUAD-SDI HDMI ASPECT H/V DELAY BLUE ONLY MONO 16:9 MARKER This item activates/ inactivates the ● 4:3 MARKER REMOTE function. 4:3 ON AIR MARKER The user may designate a function for 15:9 MARKER ●...
  • Page 19 ● - This item sets the ID of each monitor for the - Used to set UMD and ANC. TVLogic control protocol using RS-422/485 - Available modes are OFF, UMD and ANC. communication. * UMD : Displays user customized 8 characters - Available values are 0~127.

  • Page 20: Marker

    5. Menu Operations [4] MARKER Fit Marker ● - Used to activate or inactivate the FIT MARKER function. - When the Marker type is selected in the Marker menu, a border line of the Safety Area will be displayed inside the Marker.
  • Page 21 5. Menu Operations [4] MARKER USER Marker H1 ● - Used to set the position of the first horizontal marker line. - Displayed when MARKER menu is set to USER. USER Marker H2 ● - Used to set the position of the second horizontal marker line.

  • Page 22: Waveform & Focus

    5. Menu Operations [5] WAVEFORM & FOCUS Waveform Trans. (Not Supported) ● - Controls the transparency level of the Waveform/Vectorscope. - Available values are OPAQUE and TRANS. * If the option is set to OPAQUE, the main OSD will overlap with the waveform/vector. However, it will automatically display it as transparent and goes back to opaque if the main OSD disappears.
  • Page 23 5. Menu Operations [5] WAVEFORM & FOCUS Luma(Y’) Zone Check Focus Assist ● ● - Displays the Luma(Y’) level of the input - Focus Assist helps the shooters to easily image in colors. find out the exact area in the picture - Can select between [Color Pattern] or that is in focus, simply by adding colors [Zebra Pattern].

  • Page 24: Audio

    5. Menu Operations [6] AUDIO Volume ● - Used to control the output volume of the [AUDIO OUT] terminal on the back of the monitor. - Control range is from 0 to 30. Em. Audio Left ● - Used to set embedded audio channel for left audio out of [AUDIO OUT] terminal on the back of the monitor.

  • Page 25: Display & Set

    5. Menu Operations [7] Display & Set Key Lock ● - Used to lock all buttons except Power, Input select and Menu buttons. Key LED ● - Used to control the Key Lamp on the front of the monitor. - If the button with LED is pressed with the KEY LED Off, LED comes on but turns off after 5 seconds later.
  • Page 26 5. Menu Operations [7] Display & Set F1 Key Mapping Closed Caption ● ● - This item controls the Closed Caption. - User can select the function for the F1 button. - Available modes are OFF, 708, 608(LINE21) and 608(ANC). F2 Key Mapping ●...

  • Page 27: Inform

    5. Menu Operations [8] INFORM. (INFO. KEY) Bit Depth ● - Displays the Bit Depth information of the Payload ID Byte 4. Link Assignment ● - Displays the Channel Assignment information of the Payload ID Byte 4. Input Channel ● - Indicates the channel of the input signal.

  • Page 28: Video Support Resolution

    6. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160 (23.98/24/25/29.97/30p/Psf) HD-SDI YCbCr 4:2:2 10bit Quad link (4K) 4096x2160 (23.98/24/25/29.97/30p/Psf) Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160(50/59.94/60p) YCbCr 4:2:2 10bit 3840x2160 YCbCr 4:4:4 10/12bit (23.98/24/25/29.97/30/p/Psf)
  • Page 29 6. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HDMI) 720x480(60i) RGB 4:4:4 8/10/12bit 720x576(50i) YCbCr 4:4:4 8/10/12bit 720x480(60p) 720x576(50p) RGB 4:4:4 8/10/12bit 1280x720(60p) YCbCr 4:4:4 8/10/12bit 1920x1080(50/59.94/60i) YCbCr 4:2:2 12bit 1920x1080(50/59.94/60p) HDMI Single link(4K) 800x600@60Hz 1024x768@60Hz VESA 1280x1024@60Hz 1600x1200@60Hz...

  • Page 30: Product Specifications

    7. Product Specifications LUM-242G Size 23.8” Resolution 3840 X 2160 (16:9) Pixel Pitch 0.13725(H) X 0.13725(V) mm Color Depth 1.07B Colors (A-FTC 10bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 540 cd/ m...
  • Page 31 MEMO 4K LCD Monitor 31...
  • Page 32 MEMO 32 4K LCD Monitor...
  • Page 33 MEMO 4K LCD Monitor 33...
  • Page 34 MEMO 34 4K LCD Monitor...
  • Page 36 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan digital 1-ro, Geumcheon-gu, Seoul, 18590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
