1. Caution Always use set voltage. • • Do not attempt to service the product yourself. ● Removing covers can expose you to high AC 100 ~ 240V ● voltage and other dangerous conditions. Request a qualifi ed service person to perform •...
Page 5
1. Caution • • When mounting the product on a wall or • • When relocating the product placed on a cart, ceiling, be sure to install the product it must be moved with the utmost care. according to the method recommended by the Sudden stops, excessive force and uneven fl oor manufacturer.

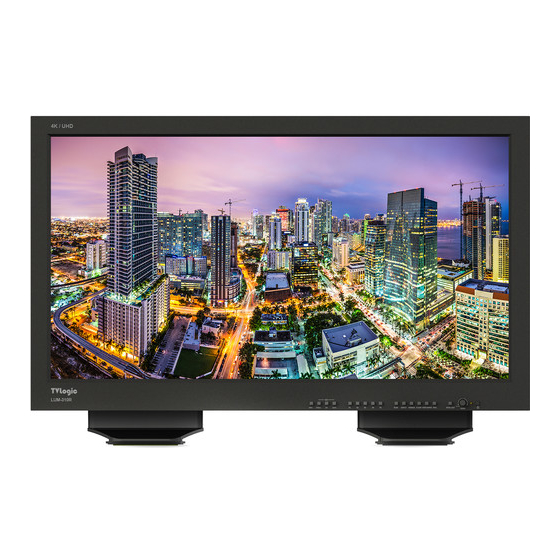

2. Main Features LUM-310R Monitor contains the following features: Compatible with various SDI signal Additional features ● ● - Wide Viewing Angle, Active Loop formats Through(SDI), VESA Mounting Standard and - This product is compatible with various SDI OSD user interface.
F4/EOTF F5/DIM MENU/EXIT ENTER POWER AUDIO OUT HDMI INFO. Quad 2Si Compare QUAD FALSE ASPECT SCAN LUM-310R : REAR DC OUT RS-422 OUT RS-422 IN SDI-IN (A~D) SDI-OUT (A~D) ON/OFF AC IN HDMI (HDCP) REMOTE AUDIO-IN 4K LCD Monitor 7...
Page 8
3. Controls & Functions FRONT [HDMI] Button/Lamp [F1 ~ F5] Button/Lamp ● ● - Used to select HDMI input. - Shortcut key for KEY MAPPING feature in the OSD MENU. - Selectable options are as follows : [12G] Button/Lamp ● - Used to select SDI input for one channel.
Page 9
3. Controls & Functions FRONT 8) COLOR TEMP [MENU/EXIT] Button ● - Used to controls the color temperature - Used to activate/deactivate the OSD menu. and allows instant access to preset the color - Press the MENU button again to deactivate temperature settings.
Page 10
3. Controls & Functions LUM-310R : REAR [REMOTE] (RJ-45) [Audio in] ● ● - Provides connection to control - Used to connect the audio input signal. equipment(parallel switch) for external monitor control. [LAN] ● - Features can be changed in the GPI section of - Used to control the monitor with a protocol the OSD menu.
4. Menu Organization & Adjustment [1] Menu Organization [3] Menu Adjustment Procedure The product may be controlled and set Menu control sequence follows the order ● ● system-wise through OSD displayed on below: the screen. 1. Press the MENU button to activate the OSD menu.
Page 12
4. Menu Organization & Adjustment [4] Menu Tree Marker Brightness Center Marker Contrast Safety Area Chroma Fit Marker PICTURE Aperture Aspect Marker Mat MARKER Marker Color 3G format Video Range Select Thickness User Marker H1 Standard. Video Range User Marker H2 User Marker V1 Luminance User Marker V2...
Page 13
4. Menu Organization & Adjustment [4] Menu Tree Waveform Display User Confi g Set Waveform Intensity Internal Pattern Waveform Trans. System Default Waveform Color S/W Upgrade Line Waveform S/W Upgrade Start Line Select Position Time Code Waveform &Focus Display&Set Luma(Y) Zone Check Key Lock Luma(Y) Zone Adjust Key LED...
YCbCr, B 422 10BIT_YCbCr, 60P). monitor or the lighting environment. For example, the lowest luminance that the LUM-310R can display is 0.002, but it is necessary to adjust the off set level to about 0.2nit when using under bright light.
Page 15
5. Menu Operations [2] COLOR Color Gamut ● - Used to select the standard color gamut. - Available options are BT.709, BT.2020, DCI-P3, SGamut3 and Native. - Activates only in the User1/2/3 mode.= C. Temp ● - Controls the color temperature. - Available options are D60, D65 and User.
Page 16
5. Menu Operations [2] COLOR Bias Red ● - Used to set Red Bias from -100 to 100. - Adjusts the red color of dark section. - Only available in User mode. Bias Green ● - Used to set Green Bias from -100 to 100. - Adjusts the green color of dark section.
5. Menu Operations [3] GPI Menu Classifi - Settable Values cation NONE SINGLE-SDI 2SI-SDI QUAD-SDI HDMI UNDER SCAN 1:1 SCAN ASPECT H/V DELAY BLUE ONLY This item activates/ deactivates the ● MONO REMOTE function. 16:9 MARKER The user may designate a function for 4:3 MARKER ●...
Page 18
● - This item sets the ID of each monitor for the - Used to set UMD and ANC. TVLogic control protocol using RS-422/485 - Available modes are OFF, UMD and ANC. communication. * UMD : Displays user customized 8 - Available values are 0~127.
5. Menu Operations [4] MARKER Fit Marker ● - Used to activate or inactivate the FIT MARKER function. - When the Marker type is selected in the Marker menu, a border line of the Safety Area will be displayed inside the Marker.
5. Menu Operations [4] MARKER [5] Waveform & Focus USER Marker H1 WAVEFORM/VECTOR ● ● - Used to set the position of the fi rst horizontal - This function sets the Waveform and marker line. Vectorscope. - Displayed when MARKER menu is set to USER. - Activates in the order: Off , Waveform, Vectorscope, Waveform YCbCr, Waveform RGB, Wave+Vector, and Waveform Wide...
Page 21
5. Menu Operations [5] Waveform & Focus WaveForm Intensity ● Luma(Y’) Zone Check ● - Controls the brightness of the Waveform/ - Displays the Luma(Y’) level of the input Vectorscope display. image in colors. - Available values are between 1 ~ 63. The - Can select between [Color Pattern] or higher the number the brighter the [Zebra Pattern].
Page 22
5. Menu Operations [5] Waveform & Focus Range Error ● - Used to set whether or not to activate Y MAX, Y MIN, C MAX and C MIN functions. - The values of Y MAX, Y MIN, C MAX and C MIN are indicated in WAVEFORM/VECTOR.
5. Menu Operations [6] AUDIO Volume ● - Used to control the output volume of the [AUDIO OUT] terminal on the back of the monitor. - Control range is from 0 to 30. Em. Audio Left ● - Used to set embedded audio channel for left audio out of [AUDIO OUT] terminal on the back of the monitor.
5. Menu Operations [7] Display & Set Time Code ● - Used to set the Time Code. - Available modes are OFF, VITC and LTC. Key Lock ● - Used to lock all buttons except Power, Input select and Menu buttons. Key LED ●...
5. Menu Operations [8] F.KEY Board Version ● - Displays the current Program Version of the monitor. 0001 0001 0.01 9 KEYPAD VERSION MCU VERSION FPGA VERSION CPU VERSION F1 Key Mapping ● - User can select the function for the F1 button. F2 Key Mapping ●...
5. Menu Operations [9] INFORM. (INFO. KEY) Bit Depth ● - Displays the Bit Depth information of the Payload ID Byte 4. Link Assignment ● - Displays the Channel Assignment information of the Payload ID Byte 4. Input Channel ● - Indicates the channel of the input signal.
6. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160 (23.98/24/25/29.97/30p/Psf) HD-SDI YCbCr 4:2:2 10bit Quad link (4K) 4096x2160 (23.98/24/25/29.97/30p/Psf) Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160(50/59.94/60p) YCbCr 4:2:2 10bit 3840x2160 YCbCr 4:4:4 10/12bit (23.98/24/25/29.97/30/p/Psf)
Page 28
6. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HDMI) 720x480(60i) RGB 4:4:4 8/10/12bit 720x576(50i) YCbCr 4:4:4 8/10/12bit 720x480(60p) 720x576(50p) RGB 4:4:4 8/10/12bit 1280x720(60p) YCbCr 4:4:4 8/10/12bit 1920x1080(50/59.94/60i) YCbCr 4:2:2 12bit 1920x1080(50/59.94/60p) HDMI Single link(4K) 800x600@60Hz 1024x768@60Hz VESA 1280x1024@60Hz 1600x1200@60Hz...
Page 32
FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan digital 1-ro, Geumcheon-gu, Seoul, 18590, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
