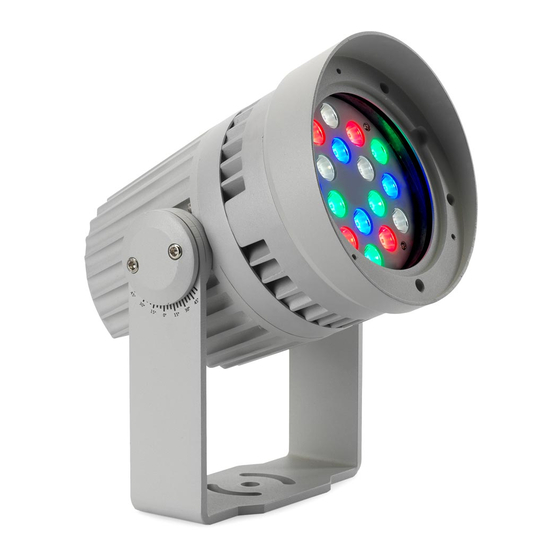

- Page 1 Exterior Wash™ 100 Series User manual...
- Page 2 ©2013-2018 HARMAN Professional Denmark ApS. All rights reserved. Martin® is a registered trademark of HARMAN Professional Denmark ApS registered in the United States and/or other countries. Features, specifications, and appearance are subject to change without notice.
-
Page 3: Table Of Contents
Setup via RDM ................... 25 Maintenance ....................26 Cleaning ..................... 26 Pressure relief valve ................26 DMX protocol ....................27 Exterior Wash 100 and Exterior Wash 110 ......... 27 Exterior Wash 120 ................28 Control menus ....................29 Troubleshooting ..................... 31 Specifications ....................32... -
Page 5: Safety Information
Martin™ distributor or call the Martin™ 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180. The light source contained in this lighting fixture may be replaced by Martin® or an authorized Martin® service agent only. - Page 6 Do not modify the fixture in any way not described in this manual or install other than genuine Martin™ parts. Do not stick filters, masks or other materials onto any lens or other optical component. Use only accessories approved by Martin™ to modify the light beam.
- Page 7 Ensure that persons are not looking directly into the fixture when it lights up suddenly. This can happen when power is applied, when the fixture receives a DMX signal, or when certain control menu items are selected. Wear protective glasses and other PPE (personal protective equipment) when working on or near the fixture.
- Page 8 Exterior Wash 120 The Exterior Wash 120 falls into the following risk groups according to EN 62471 at the distances indicated: At a distance of less than 0.6 m (2 ft.) from the fixture, the light output can potentially cause eye or skin injury before an exposed person’s natural aversion responses (blink reflex and...
-
Page 9: Introduction
Exterior Wash 110 with premixed quad-color LEDs optimized for superior color mixing ● Exterior Wash 120 with mixable warm-white and cold-white LEDs that can achieve white tones ranging in color temperature from 2800 K to 6500 K. The Exterior Wash 100 Series is a powerful, compact and energy-efficient line of LED lighting fixtures designed to illuminate smaller structures, building features and landscaping. -
Page 10: Before Using The Product For The First Time
Before operating, ensure that the voltage and frequency of the power supply match the power requirements of the fixture. Check the support pages on the Martin® website at www.martin.com for the most recent user documentation and technical information about the fixture. Martin® user manual revisions are identified by the revision letter at the bottom of the inside cover. -
Page 11: Physical Installation
Physical installation Warning! Read ‘Safety information’ on page 5 before installing the fixture. Contact your Martin® supplier for assistance if you have any questions about how to install this product safely. Fixture location ™ Exterior Wash 100 Series fixtures are intended for outdoor use. With an IP rating of 66, they are dust tight and able to withstand powerful water jets, but they are not submersible. -
Page 12: Adjusting Tilt
Referring to the illustration below, fasten the center of the yoke with a 12 mm (1/2 inch) shaft diameter bolt in the center hole A. Then use two bolts with 8 mm (5/16 inch) shaft diameter passing through the curved slots B to anchor the fixture. -
Page 13: Installing A Diffuser
Installing a diffuser Optional diffuser lenses are available to modify the beam width; see table below for details. The label identifying the nominal diffuser beam angle is partially hidden under the silicone gasket. The diffuser is held in place either by the included trim ring or, if installed, by the snoot. Nominal Half-peak Half-peak beam... -
Page 14: Installing A Snoot
Installing a snoot ™ The optional snoot for Exterior Wash 100 Series fixtures may be installed with or without a diffuser lens (see above). To install, shut down power to the fixture, then align the snoot to fit over the front of the fixture and fasten securely with the included hardware. -
Page 15: Ac Power
AC power Warning! Read “Safety Information” on page 5 before attempting to install the fixture. Lock out power to the entire installation before working on cables and connections. Electrical installation must be carried out by qualified professionals only. For protection from dangerous electric shock, the fixture must be grounded (earthed). The AC power distribution system must be fitted with current overload and ground-fault (earth- fault) circuit breakers as well as a means to isolate fixtures from power and lock out power during service. - Page 16 Check that all installation work is completed and carry out appropriate tests and safety checks before applying power. Installing a temporary power plug It is possible to install a power plug on the power cable for temporary use (such as setting up a fixture before installation, for example) only.
-
Page 17: Control Data Link
A DMX512 data link is required in order to control the fixture via DMX (and manage fixtures via RDM, if used). Your Martin® supplier will be happy to help if you need advice or assistance in planning the link. Follow these guidelines when creating a DMX data link: ●... - Page 18 DMX data link layout Connect the wires in the data cable as shown below. Do not connect the shield conductor to ground (earth) or allow it to come into contact with a connector shell, as this may cause interference. Wires Input pair (red tube) Output pair (black tube) Shield...
-
Page 19: Setup
Setup Warning! Read ‘Safety information’ on page 5 before operating the fixture. This section explains the fixture settings and utilities that the user has access to via the control panel. Settings are retained when the fixture is powered off. A full map of the control menu including default settings can be found on page 27. -
Page 20: Programming A Standalone Show
DMX channels in the Exterior Wash 120 The Exterior Wash 120 has one DMX control mode that uses three DMX channels, giving individual control of warm white LEDs, individual control of cool white LEDs, or overall control of color temperature. -
Page 21: Manual Mode
Press MENU to select the next scene to modify. When done editing scenes, press MENU again to return to the PROGRAM SHOW menu. To modify scene transitions, select FADE TIME and press ENTER. Press UP or DOWN to select a fade time from 0 to 120 seconds. - Page 22 Wash 110, 210 and 310 fixtures can be synchronized with each other and Exterior Wash 120, 220 and 320 fixtures can be synchronized with each other. In master/slave operation, one fixture running a standalone show – the ’master’ fixture –sends ‘fade’ and ’wait’...
-
Page 23: White Balance
Dimmer curve You can select from four options for controlling the intensity of the fixture’s light output when you are using the dimming DMX channel: ● OPTICALLY LINEAR: dimming appears linear as DMX values change. ● SQUARE LAW: dimming control is finer at low levels and coarser at high levels. ●... -
Page 24: Factory Reset
HOLD LAST LOOK: Fixture holds and displays the last received DMX command (fixture must be set to MASTER). If the fixture is set to MASTER and it does not receive a control signal, it will continue to obey the last DMX command that it received. -
Page 25: Setup Via Rdm
Exterior Wash 100 Series fixtures via the DMX data link to set DMX addresses, execute certain commands and retrieve basic fixture data. To use Martin® M-PC, connect a PC running this application to the data link via the Martin® M-DMX USB-to-DMX interface box (see ‘Related Items’ on page 34). Before you can communicate with fixtures, you will need to send a Scan command from M-PC to detect the devices on the data link. -
Page 26: Maintenance
Maintenance Warning! There are no user-serviceable parts inside. Do not open the housing. Refer any service operation not described in this manual to Martin® or its authorized service agents. Installation, on-site service and maintenance can be provided worldwide by the Martin®... -
Page 27: Dmx Protocol
DMX protocol Exterior Wash 100 and Exterior Wash 110 Exterior Wash 100 and 110 fixtures have four DMX control modes. See ‘DMX settings’ on page 19 for full details. RGBW uncalibrated mode RGBW uncalibrated mode provides individual intensity control of each color. Output is not calibrated. Fixtures are set to this mode by default. -
Page 28: Exterior Wash 120
Exterior Wash 120 DMX control in the Exterior Wash 120 gives individual control of the warm and cold white LEDs on channels 1 and 2. Channel 3 gives color temperature control from warm to cold at maximum output intensity. When set to a level above 26, channel 3 overrides channels 1 and 2. -
Page 29: Control Menus
White 0-255 Program Show Cold white 0-255 Individual Edit Scene Color 1- last scene color (Exterior Wash 120) scene Warm white 0-255 temperature Fade Time 0-120 secs. (3 secs.) Transition time between scenes Length of time scenes are Hold Time 0-600 secs. - Page 30 Menu Sub-menus Explanation Master Set to master fixture Master/Slave Slave Set to slave fixture RGBW - uncalibrated DMX Mode DRGBW - uncalibrated DMX control modes (Exterior Wash 100 and (see page 19) RGB - calibrated 110) DRGB - calibrated Optically Linear Square Law Dimming behavior (see Dimmer Curve...
-
Page 31: Troubleshooting
Electromagnetic interference Move cables away from any strong on DMX link electromagnetic fields. Fixture defective. Have faulty fixture serviced by Martin® Service. Other device on DMX link Bypass devices on DMX link until the defective. faulty device has been identified. Have faulty device serviced by Martin®... -
Page 32: Specifications
Dynamic Effects All models Intensity ............................0 - 100% Exterior Wash 100 and 110 Color mixing ..........................RGB, RGBW Exterior Wash 120 Color temperature control ....................2800 K - 6500 K Control and Programming All models Control systems .........................DMX, RDM Setting, addressing, standalone programming ........ - Page 33 Exterior Wash 120 Light source ............9 x 2800 K warm white and 9 x 6500 K cold white LEDs Half-peak beam angle ..........................7° Beam angles available with accessory diffusers ..........12°, 21°, 40°, 60°, 12° x 60° Construction Protection rating ...........................
- Page 34 Exterior Wash 100 Series asymmetric diffuser kit ..............P/N 91610149 Exterior Wash 100 Series glare shield / snoot ..............P/N 91611740 Related Items Martin® M-PC 2U incl. Martin® M-DMX Interface Box and USB cable ......... P/N 90737070 Ordering Information Exterior Wash 100, 7°, EU, aluminum ................... P/N 90510325 Exterior Wash 100, 7°, US, aluminum ...................
- Page 35 Disposing of this product Martin® products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life.
