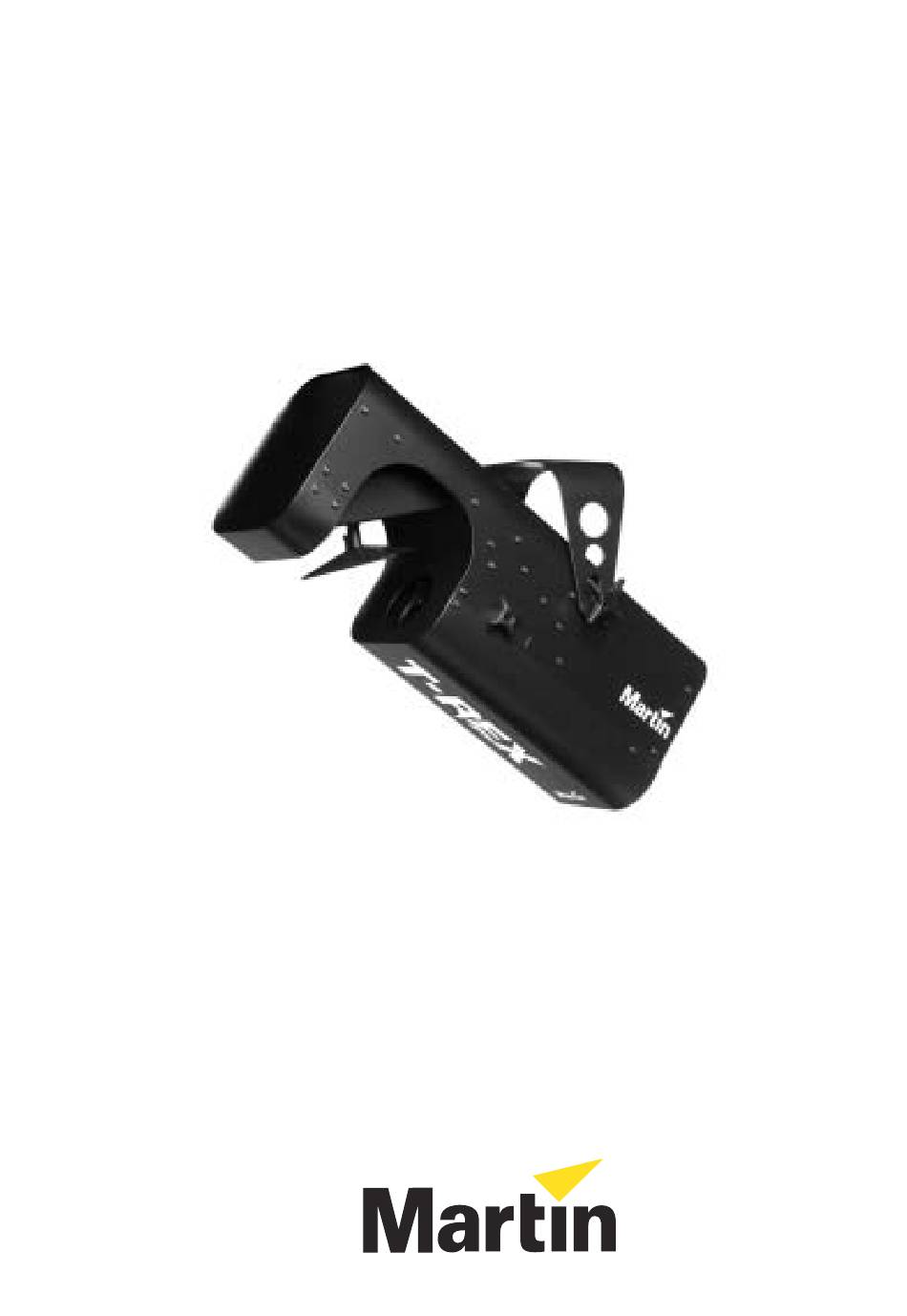

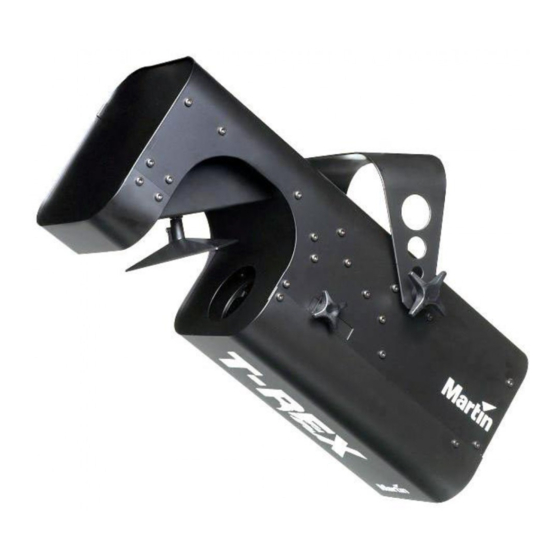

  • Page 1 T-Rex user manual www.audiovias.com...
  • Page 2 © 2001 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in China. P/N 35000101, Rev. B...
  • Page 3: Table Of Contents

    Installing or hanging the T-Rex ........
  • Page 4: Introduction

    NTRODUCTION Thank you for selecting the Martin T-Rex. This lighting fixture uses a 250 watt halogen lamp, a moving 4-facet mirror, a multi-effect color/gobo wheel, and a built-in microphone to project exciting effects automatically in time with the music. T - R E X S A F E T Y I N F O R M A T I O N Warning! This product is not for household use.
  • Page 5: Unpacking

    U N P A C K I N G The packing material is carefully designed to protect the fixture during shipment - always use it to transport the fixture. The T-Rex comes with: • Mounting bracket • 1.5-meter, 3-wire IEC power cable •...
  • Page 6: Ac Power

    POWER The T-Rex’s operating voltage is printed on the serial number label near the AC input. Verify that the operating voltage closely matches the AC supply voltage before applying power. Contact your Martin dealer if the voltage on the label differs from the AC mains voltage by more than five percent.
  • Page 7: Installation

    NSTALLATION The T-Rex can be permanently installed or hung with a clamp (not included), or it can be placed on the floor. For maximum lamp life, do not place the fixture directly on or beside a speaker cabinet or other source of strong vibrations.
  • Page 8: Using The Bracket As A Floor Stand

    U S I N G T H E B R A C K E T A S A F L O O R S T A N D 1 The T-Rex may be placed on the floor by standing it squarely on the mirror end or with the support of the mounting bracket.
  • Page 9: Operation

    Once the T-Rex is installed and connected, the focus may be adjusted by loosening and sliding the focus adjustment knob. Although the T-Rex cannot be dimmed, it may be switched on and off remotely using switch packs or the full-on and full-off levels on dimmer packs.
  • Page 10: Service

    ERVICE With the exception of the mains fuse and the lamp, there are no user-serviceable parts inside the T-Rex. Please refer all service to a Martin distributor, dealer, or service center. R E P L A C I N G T H E M A I N F U S E 1 Unplug the mains cable from the input socket.
  • Page 11 Installing a lamp in the T-Rex 1 Disconnect the fixture from AC power. If replacing a lamp, allow it to cool for 5 minutes before removing the lamp access cover. The lamp cools faster with the cover in place. 2 Remove both screws from the lamp access cover and lift the cover off.
  • Page 12: Troubleshooting

    When the fixtures cools the lamp will come on again, causing the fixture to heat, which will again trip the thermostatic switch, and so forth. T-Rex user manual www.audiovias.com...
  • Page 13: Specifications

    PECIFICATIONS P H Y S I C A L • Size (L x W x H)........490 x 164 x 190 mm (19.3 x 6.5 x 7.5 in) • Weight..................7.5 kg (16.5 lbs) C O N S T R U C T I O N •...
  • Page 14 • Maximum power and current ........270 W, 2.2 A @ 120 V, 60 Hz A C C E S S O R I E S • Martin DMX Switch Pack, 210-245 V ........... 90758200 • Martin DMX Switch Pack, 100-130 V ........... 90758300 •...
