Mechanical Installation

3 Mechanical Installation

3.1 Unpacking

3 3

3.1.1 Items Supplied

Items supplied vary according to product configuration.
•
Make sure that the items supplied and the
information on the nameplate correspond to the
order confirmation.
•
Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarification.
VLT
1
T/C: FC-302PK37T2E20H1BGXXXXSXXXXA6BKC4XXXD0
2
P/N: 131X3537
4
0.37kW/ 0.50HP
5
IN: 3x200-240V 50/60Hz 2.2A
6
OUT: 3x0-Vin 0-590Hz 2.4A
7
CHASSIS/ IP20 Tamb.50 C/122 F
* 1 3 1 X 3 5 3 7 0 1 0 1 2 2 G 4 3 0 *
10
1 Type code
2 Code number
3 Serial number
4 Power rating
Input voltage, frequency, and current (at low/high
5
voltages)
Output voltage, frequency, and current (at low/high
6
voltages)
7 Enclosure size and IP rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)

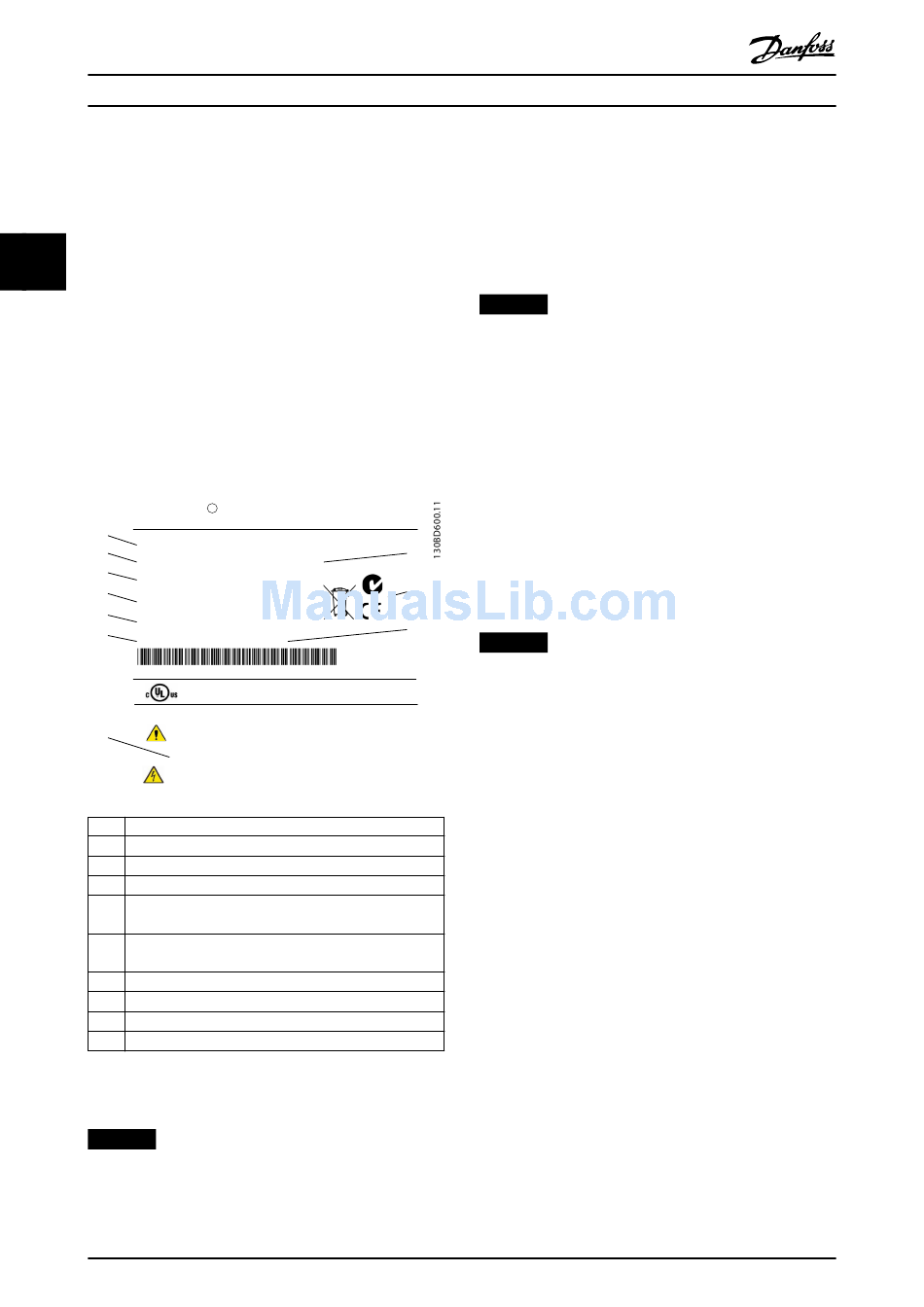

Illustration 3.1 Product Nameplate (Example)
NOTICE
Do not remove the nameplate from the frequency
converter (loss of warranty).
8
R
Automation Drive
www.danfoss.com
S/N: 010122G430
o o
MADE IN DENMARK
Listed 76X1 E134261 Ind. Contr. Eq.
CAUTION:
See manual for special condition/mains fuse
`
Voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 4 min.
`
Charge residuelle, attendez 4 min.
Danfoss A/S © 05/2018 All rights reserved.
®
VLT AutomationDrive FC 301/302
Ensure that the requirements for storage are fulfilled. Refer
to chapter 8.4 Ambient Conditions for further details.

3.2 Installation Environments

NOTICE
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
the lifetime of the frequency converter. Ensure that
requirements for air humidity, temperature, and altitude
are met.
Vibration and shock
The frequency converter complies with requirements for
units mounted on the walls and floors of production
premises, and in panels bolted to walls or floors.
3
For detailed ambient conditions specifications, refer to
chapter 8.4 Ambient Conditions.
9

3.3 Mounting

8
NOTICE
Improper mounting can result in overheating and
reduced performance.
MG33AT02
