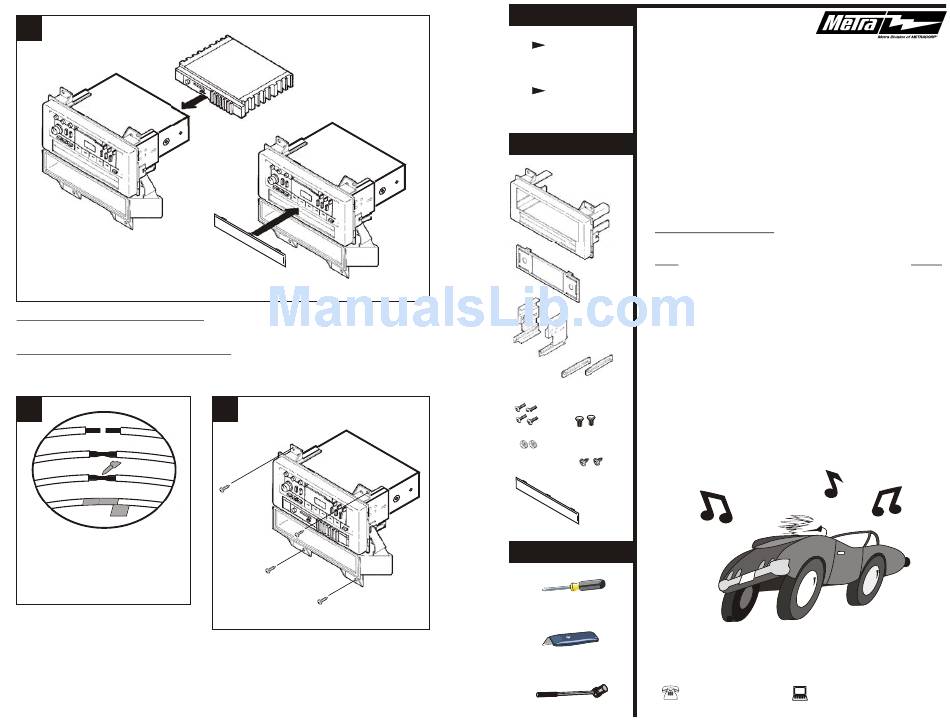

Fig. A
IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the
Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.
(see Fig. A)
IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the
Radio Housing. (see Fig. B)
7
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
3
Fig. B
8
Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with (4) screws
previously removed in step #1.
rev. 271202
KIT FEATURES
Factory pocket
provisions
99-3044
Equalizer
provisions
INSTALLATION
INSTRUCTIONS
KIT COMPONENTS
Radio Housing
APPLICATIONS
CAR
CHEVROLET
Blazer 1995-97........................................................1-3
Faceplate
S-10 Pickup 1994-97................................................1-3
ISO-DIN
GMC
Brackets
Jimmy 1995-97........................................................1-3
Sonoma 1994-97......................................................1-3
(4) 5mm
ISUZU
Flat-head
(2) Equalizer
Hombre 1996-97......................................................1-3
Screws
Spacers
OLDSMOBILE
Bravada 1995-97.....................................................1-3
(2) Carriage Bolts
(2) Keps Nuts
(2) #6 Self-
tapping Screws
Equalizer
Dummy Plate
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
1-800-221-0932
Socket wrench
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
PAGE
www.metraonline.com
