INSTALLATION INSTRUCTIONS FOR PART 99-8712
Mercedes Benz C Class
99-8712
KIT FEATURES
• DIN head unit provision with pocket
KIT COMPONENTS
A) Radio Housing
Socket Wrench • Torx Screwdriver • Small Flat Blade Screwdriver
PPLIC TIONS
2005-2007
Antenna Adapter:
• 40-VW12 - Mercedes antenna adapter
TOOLS REQUIRED:
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-8712
Summary of Contents for Metra Electronics 99-8712

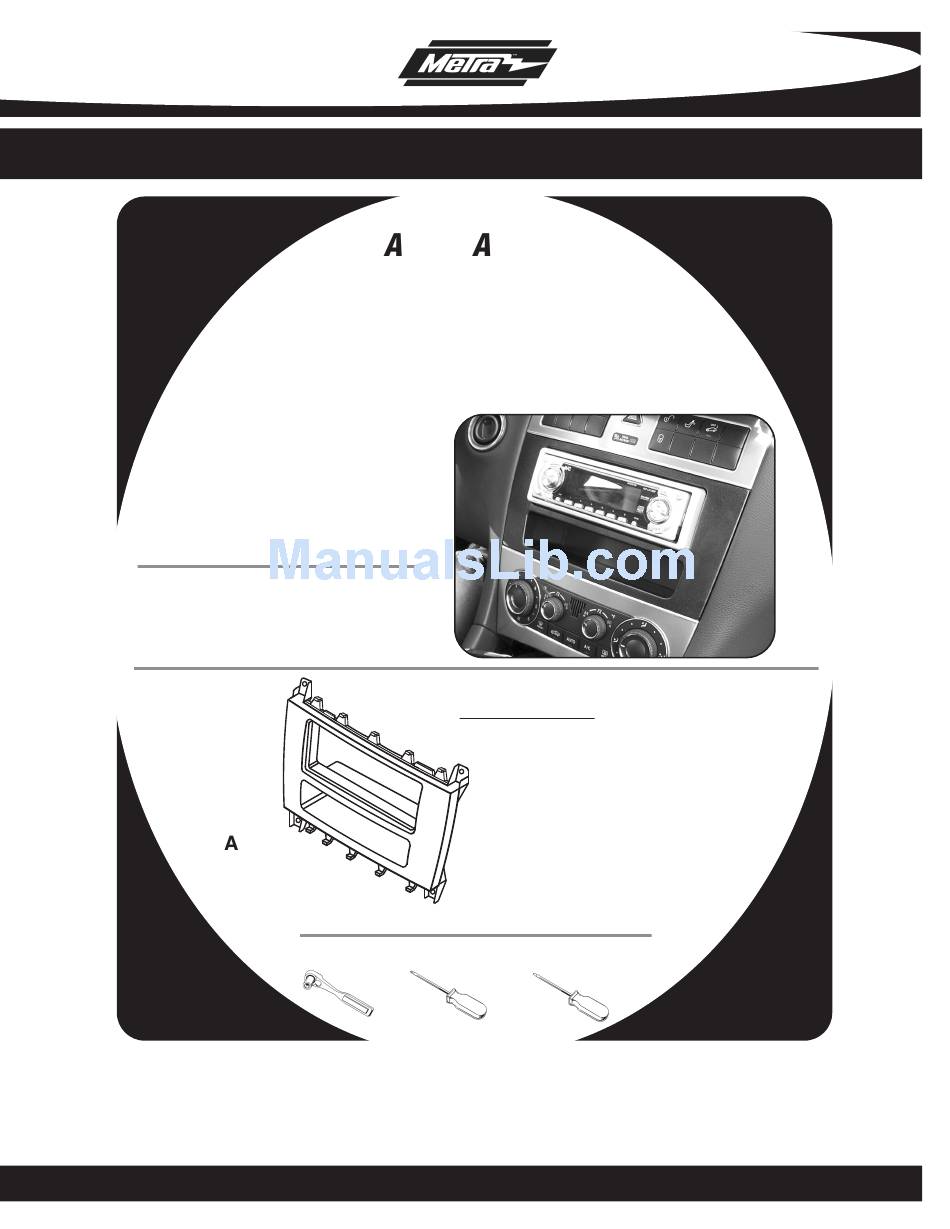

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8712 PPLIC TIONS Mercedes Benz C Class 2005-2007 99-8712 KIT FEATURES • DIN head unit provision with pocket KIT COMPONENTS A) Radio Housing Antenna Adapter: • 40-VW12 - Mercedes antenna adapter TOOLS REQUIRED: Socket Wrench • Torx Screwdriver • Small Flat Blade Screwdriver...
- Page 2 99-8712 TABLE OF CONTENTS Dash Disassembly ........1-2 Kit Assembly .
- Page 3 99-8712 DASH DISASSEMBLY 2005-2007 MERCEDES BENZ C CLASS Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove cover around shift lever and cup holder. (Figure A) Unclip and remove ashtray assembly. (Figure B) Remove (2) Torx screws from the bottom of the climate control unit then remove the unit.
- Page 4 99-8712 DASH DISASSEMBLY 2005-2007 MERCEDES BENZ C CLASS Using a small screwdriver push the release clips inside the vents inward and rotate the vents upward to expose the (2) Torx screws behind the vents. (Figure D) Unclip and remove the vent assembly.
- Page 5 99-8712 KIT ASSEMBLY DIN HEAD UNIT PROVISION Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket head unit into the cage and secure. (Figure B)
- Page 6 99-8712 FINAL ASSEMBLY FINAL ASSEMBLY Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent 2 Re-connect the negative battery terminal and test the unit for proper operation.
