3. Data record : How to Record

Once requied settings are stored,user can initiate the data recording while it is
recording. Recorded data is available for replay.
Recorded Data can be viewed while recording is in progress by pushing the [REVIEW] key.
Data is available for viewing from the start to the point of real-time recording while in
progress.
During data replay, arbitrary level values can be viewed by moving the cursor.
Return to the recording screen by pushing the [REVIEW] key again.
* The [DISPLAY] key allows you to switch between the 1-screen and 2-screen.
14

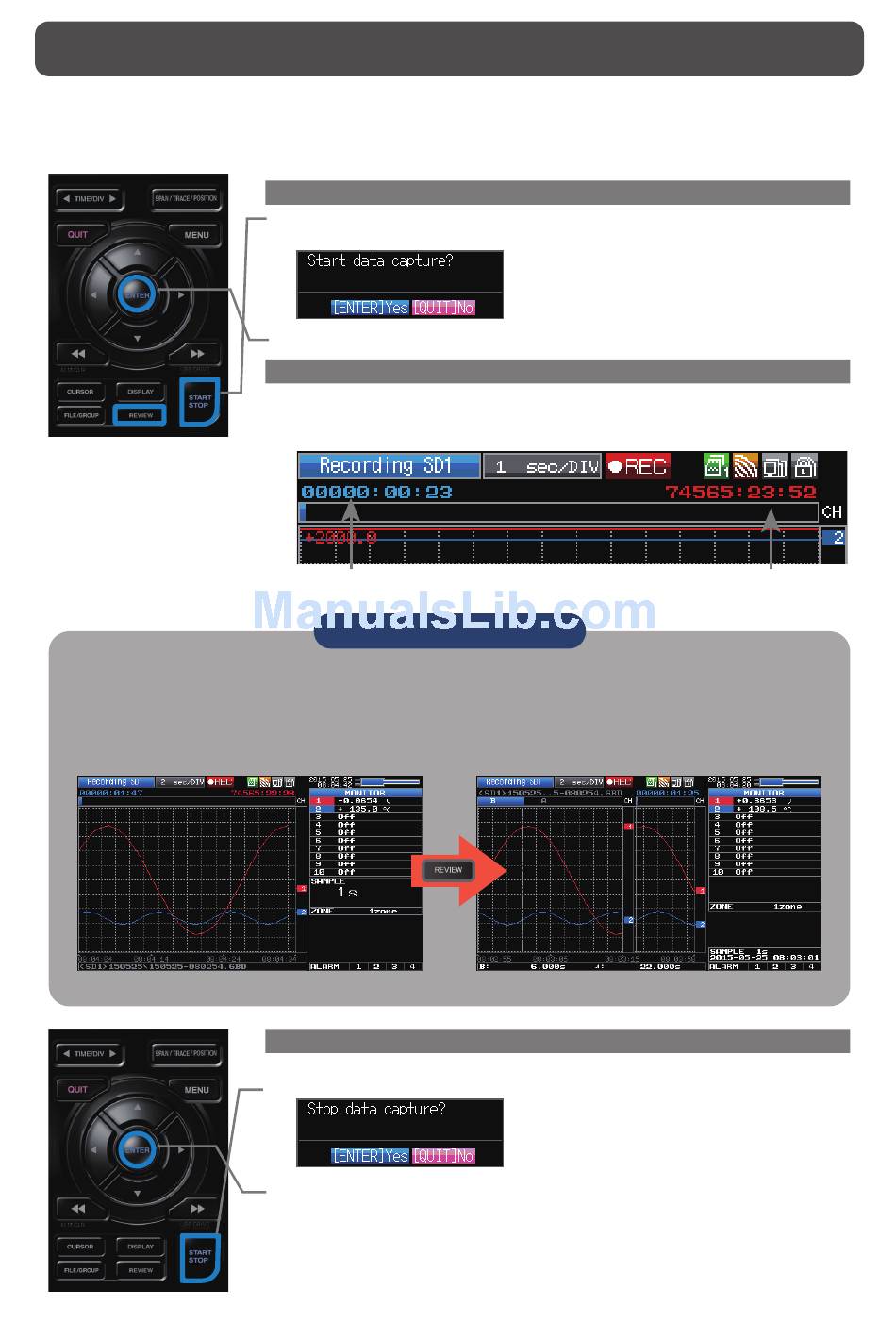

1. Start recording
(1) Push the [START/STOP] key.
(2) A confirmation message is displayed.
(3) Push the [ENTER] key to start recording.
2. Screen status during data recording
Once recording start, progress is visible on the screen.
The displayed time is counts up or down.
Recoding message
elapsed time
(The indication becomes ++++ when the available recording time is 9999 hours or more.)
Key Pointers
3. Stop recording
Push the [START/STOP] key to end the recording operation.
(1) Push the [START/STOP] key.
(2) Confirmation message is displayed. Push the [ENTER] key.
(3) Recording ends, and the GL240 goes into the Free Running mode.
The operation for data recording is complete.
remaining time for recording
