2. Setup : Menu Operation

Select the setting for only the channels being recorded. Make sure to turn off
unused channels. It is unnecessary to change all settings from factory default.
Basic Setup Menu Operation
The , [ENTER], and [QUIT] keys are used to set the condition on the setup menu.
The current position of the cursor on the setup menu is displayed in green.
Use the
position, a selection menu or a box entering value for other option is displayed.
If you push the [QUIT] key, the screen closes and for the option settings are canceled.
•

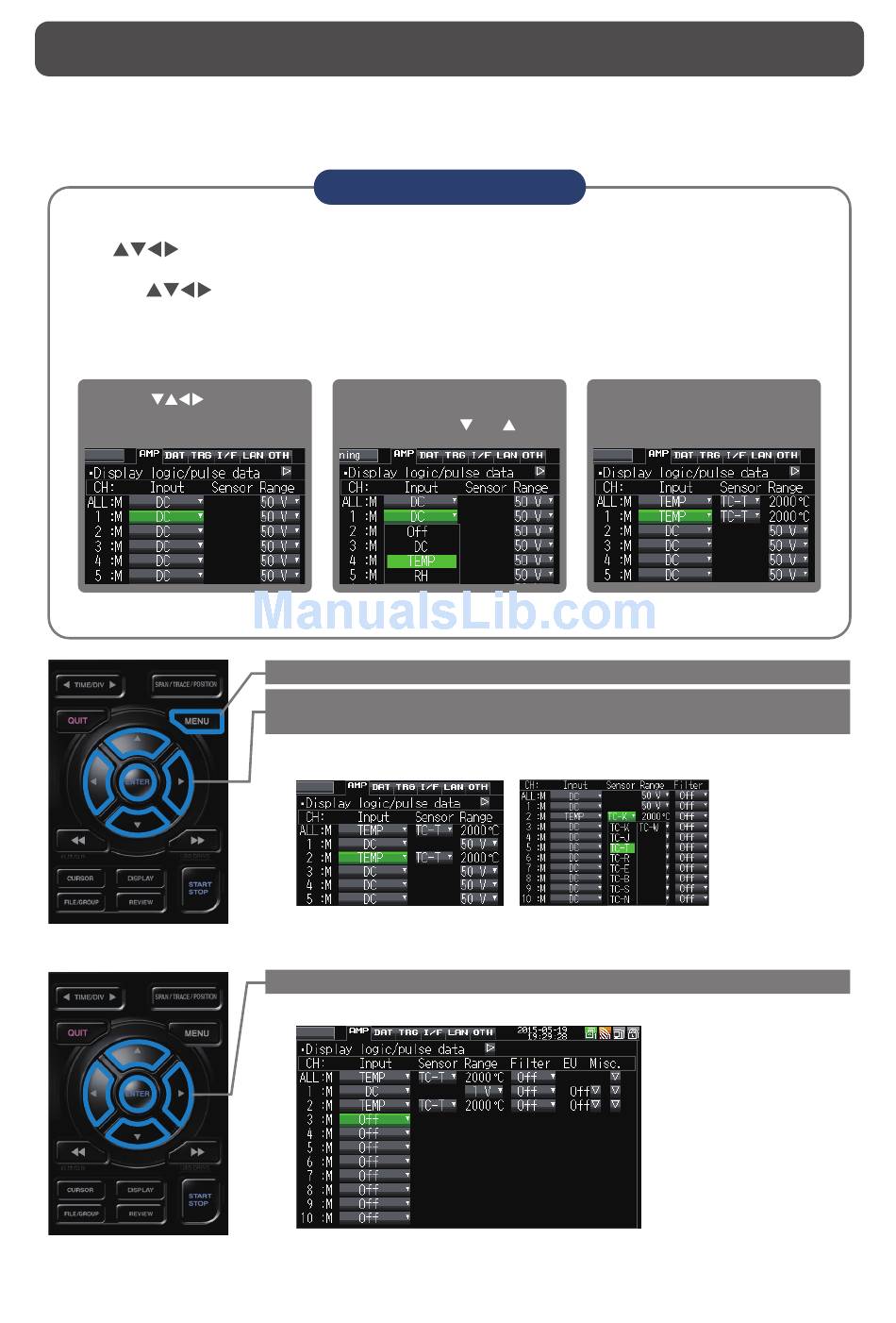

Examples of selection menu operations (AMP screen)
1. Use the keys to move
the cursor to the Input
parameter of CH 1 and then
push the [ENTER] key.
(Note: Select "DC" for voltage measurement, and "TEMP" for temperature measurement.)
Key Pointers
keys to move the cursor. When the [ENTER] key is pushed at the cursor
2. A selection menu is displayed
when the [ENTER] key is
pushed. Use the
to select "TEMP."
1. Push the [MENU] key to display the setup menu screen.
2. Set Input to "DC" and Range to "1V" for CH1,
and set Input to "TEMP" and Sensor to "TC-T" for CH2.
(1) Move the cursor to CH1 "Input" and select "DC" and then move to
"Range" and select "1V".
(2) In the same way, move the cursor to CH2 "Sensor" and select "TC-T".
3. Select "Off" for all the other channels.
(1) Using the procedure described above, select "Off" for CH 3 to CH 10.
3. Pushs the [ENTER] key to
confirm your selection.
and keys
