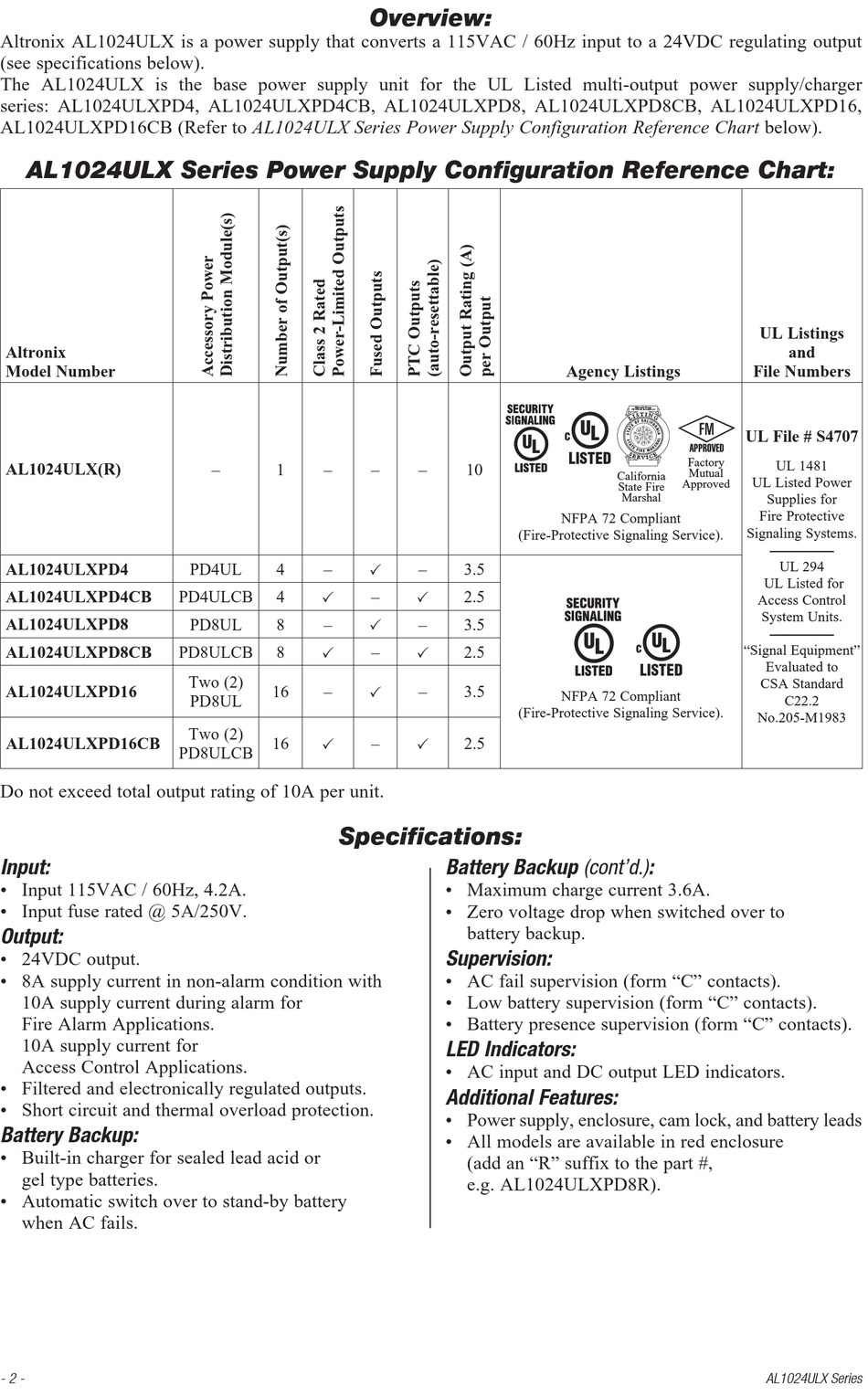

Specifications - Altronix AL1024ULX Installation Manual

Altronix AL1024ULX is a power supply that converts a 115VAC / 60Hz input to a 24VDC regulating output
(see specifications below).
The AL1024ULX is the base power supply unit for the UL Listed multi-output power supply/charger
series: AL1024ULXPD4, AL1024ULXPD4CB, AL1024ULXPD8, AL1024ULXPD8CB, AL1024ULXPD16,
AL1024ULXPD16CB (Refer to AL1024ULX Series Power Supply Configuration Reference Chart below).
AL1024ULX Series Power Supply Configuration Reference Chart:
Altronix
Model Number
AL1024ULX(R)
AL1024ULXPD4
AL1024ULXPD4CB
AL1024ULXPD8
AL1024ULXPD8CB
AL1024ULXPD16
AL1024ULXPD16CB
Do not exceed total output rating of 10A per unit.
Input:
• Input 115VAC / 60Hz, 4.2A.
• Input fuse rated @ 5A/250V.
Output:
• 24VDC output.
• 8A supply current in non-alarm condition with
10A supply current during alarm for
Fire Alarm Applications.
10A supply current for
Access Control Applications.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
- 2 -
– 1 –
PD4UL 4 –
PD4ULCB 4
P
PD8UL 8 –
PD8ULCB 8
P
Two (2)
16 –
PD8UL
Two (2)
16
P
PD8ULCB

Specifications:

Overview:
– – 10
(Fire-Protective Signaling Service).
– 3.5
P
– 2.5
P
– 3.5
P
– 2.5
P
– 3.5
P
(Fire-Protective Signaling Service).
– 2.5
P
Battery Backup (cont'd.):
• Maximum charge current 3.6A.
• Zero voltage drop when switched over to
battery backup.
Supervision:
• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).
LED Indicators:
• AC input and DC output LED indicators.
Additional Features:
• Power supply, enclosure, cam lock, and battery leads
• All models are available in red enclosure
(add an "R" suffix to the part #,
e.g. AL1024ULXPD8R).
Agency Listings
Altronix Corp.
140 58th St. Brooklyn, NY
LISTED
Factory
Mutual
California
Approved
State Fire
Marshal
NFPA 72 Compliant
LISTED
NFPA 72 Compliant
UL Listings
and
File Numbers
UL File # S4707
UL 1481
UL Listed Power
Supplies for
Fire Protective
Signaling Systems.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
UL 294
UL Listed for
Access Control
System Units.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
"Signal Equipment"
Evaluated to
CSA Standard
C22.2
No.205-M1983
AL1024ULX Series
