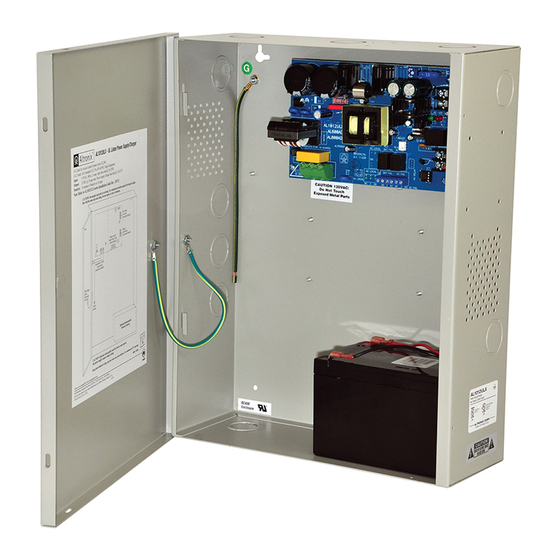

AL1012ULX Series
Power Supply/Charger
Installation Guide
Models Include:
• AL1012ULX
-
Single Output
• AL1012ULXPD4
-
Four (4) Fused Outputs
• AL1012ULXPD8
-
Eight (8) Fused Outputs
• AL1012ULXPD16
-
Sixteen (16) Fused Outputs
• AL1012ULXPD4CB
-
Four (4) PTC Outputs
• AL1012ULXPD8CB
-
Eight (8) PTC Outputs
• AL1012ULXPD16CB
-
Sixteen (16) PTC Outputs
Rev. 090302
Advertisement
Table of Contents
Related Manuals for Altronix AL1012ULX
Summary of Contents for Altronix AL1012ULX
-
Page 1: Installation Guide
AL1012ULX Series Power Supply/Charger Installation Guide Models Include: • AL1012ULX Single Output • AL1012ULXPD4 • AL1012ULXPD4CB Four (4) Fused Outputs Four (4) PTC Outputs • AL1012ULXPD8 • AL1012ULXPD8CB Eight (8) Fused Outputs Eight (8) PTC Outputs • AL1012ULXPD16 • AL1012ULXPD16CB... - Page 2 Overview: The AL1012ULX is a power supply that converts a 115VAC / 60Hz input, to a 12VDC output (see specifications). The AL1012ULX is a base unit for a series of UL Listed multi-output power supply/chargers, including: AL1012ULXPD4, AL1012ULXPD4CB, AL1012ULXPD8, AL1012ULXPD8CB, AL1012ULXPD16, AL1012ULXPD16CB (Refer to AL1012ULX Series Power Supply Configuration Reference Chart).
-
Page 3: Installation Instructions
Installation Instructions: The unit should be installed in accordance with article 760 of The National Electrical Code as well as NFPA 72 and all applicable Local Codes. 1. Mount the unit in desired location. 2. Connect AC power (115VAC / 60 Hz to terminals marked [L, G, N] (Fig. 1, pg. 5). Use 14 AWG or larger for all power connections (Battery, DC output, AC input). - Page 4 LED Diagnostics: AL600ULXB - Power Supply Board Red (DC) Green (AC) Power Supply Status Normal operating condition Loss of AC, Stand-by battery supplying power No DC output Loss of AC. Discharged or no stand-by battery. No DC output. PD4/PD4CB/PD8/PD8CB - Power Distribution Module Green Power Distribution Module Status Normal operating condition.
- Page 5 Fig. 1 CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and fire hazard replace fuse with the same type and rating 3.5A, 250V. Replace fuse cover before energizing. Door Non-power limited Battery and AC BAT FAIL NC C NO NC C...
-
Page 6: Power Distribution Module(S)
Power Distribution Module(s): Fig. 2 Used 1P, 2P, 3P, 4P = FUSED OUTPUTS 1N, 2N, 3N, 4N = COMMON OUTPUTS on PTC POWER DISTRIBUTING UNIT Models INPUT DC Output to devices From Power Supply Board (Factory Installed) Fig. 3 Used on PTC Models F U S E D... - Page 7 Notes: - 7 -...
- Page 8 3.68" 4.56" Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL1012ULX series J03E MEMBER - 8 -...
