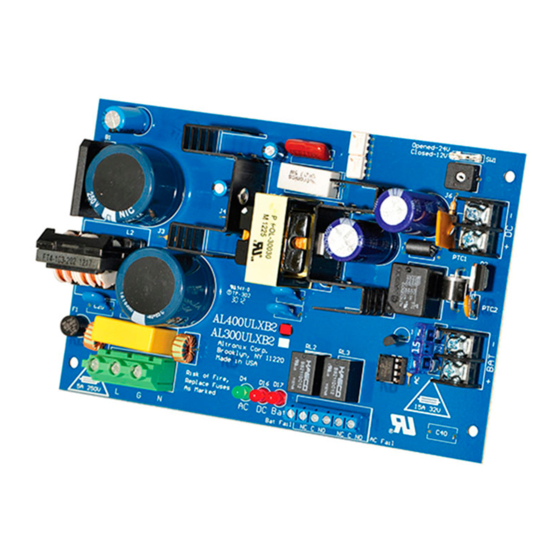

Altronix AL300XB2V Installation Manual

Altronix power supply/chargers convert a 220VAC (working range 198VAC - 256VAC), 50/60Hz input to a
12VDC or 24VDC output.
Altronix Input Rating
Model Number 220VAC 50/60Hz
AL300XB2V
AL400XB2V
AL600XB220
AL1012XB220
AL1024XB2V
Output:
• Filtered and electronically regulated output.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Zero voltage drop when switched over to
battery backup.
Visual Indicators:
• AC input, DC output and BAT trouble
LED indicators.
Supervision:
• AC fail supervision (form "C" contacts).
• Low battery and battery presence supervision
(form "C" contacts).
AL300XB2V:
Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
AL400XB2V:
Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
Power Supply/Charger Boards Installation Guide

Specifications:

Output Voltage (Current)
12VDC
1.5A 2.5A
1.5A 4A
1.5A 6A
1.3A 10A
2.5A –
Stand-by Specifications:
4 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 2.5A
Alarm = 2.5A
–
Stand-by = 2.5A
Alarm = 2.5A
4 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 4.0A
Alarm = 4.0A
–
Stand-by = 3.0A
Alarm = 3.0A
Overview:
Input Fuse
Rating
24VDC
2.5A 5A / 250V
3A 5A / 250V
6A 5A / 250V
– 5A / 250V
10A 5A / 250V
Additional Features:
• Short circuit and thermal overload protection.
Board Dimensions (L x W x H approximate):
AL300XB2V:
7.1" x 4.5" x 1.44" (180.3mm x 114.3mm x 36.6mm).
AL400XB2V:
7.1" x 4.5" x 1.44" (180.3mm x 114.3mm x 36.6mm).
AL600XB220:
7.1" x 4.5" x 2" (180.3 mm x 114.3 mm x 50.8 mm).
AL1012XB220:
7.25" x 4.5" x 1.75"
(184.2mm x 114.3mm x 44.5mm).
AL1024XB2V:
8.4" x 4.5" x 1.4" (213.4mm x 114.4mm x 35.6mm).
24 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 1.0A
Alarm = 2.5A
Stand-by = 200mA
Alarm = 2.5A
Stand-by = 1.0A
Alarm = 2.5A
24 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 1.0A
Alarm = 4.0A
Stand-by = 200mA
Alarm = 3.0A
Stand-by = 1.0A
Alarm = 3.0A
Rev. XBV-081518
Battery Fuse Maximum
Rating Charge Current
15A / 250V 0.7A
15A / 250V 0.7A
– 0.7A
15A / 250V 0.7A
15A / 250V 3.6A
60 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 2.5A
–
Stand-by = 300mA
Alarm = 2.5A
60 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 4.0A
–
Stand-by = 300mA
Alarm = 3.0A
