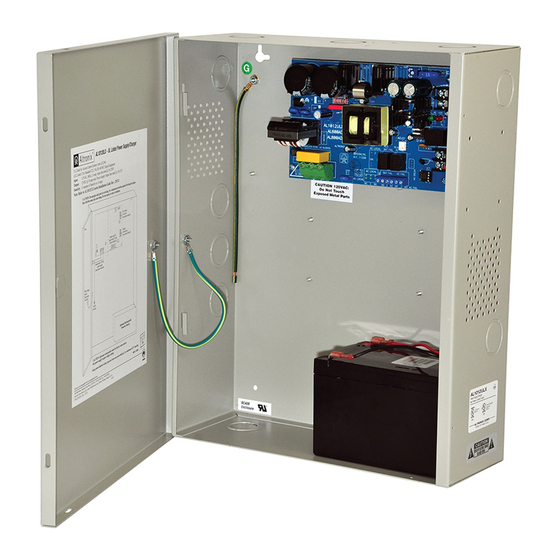

AL1012ULX Series
Power Supply/Charger
Installation Guide
Models Include:
• AL1012ULX
-
Single Output
• AL1012ULXPD4
-
Four (4) Fused Outputs
• AL1012ULXPD8
-
Eight (8) Fused Outputs
• AL1012ULXPD16
-
Sixteen (16) Fused Outputs
LISTED
• AL1012ULXPD4CB
-
Four (4) PTC Outputs
• AL1012ULXPD8CB
-
Eight (8) PTC Outputs
• AL1012ULXPD16CB
-
Sixteen (16) PTC Outputs
Rev. 120712
Advertisement
Table of Contents
Related Manuals for Altronix AL1012ULX
Summary of Contents for Altronix AL1012ULX
-
Page 1: Installation Guide
AL1012ULX Series Power Supply/Charger Installation Guide Models Include: • AL1012ULX Single Output • AL1012ULXPD4 • AL1012ULXPD4CB Four (4) Fused Outputs Four (4) PTC Outputs • AL1012ULXPD8 • AL1012ULXPD8CB Eight (8) Fused Outputs Eight (8) PTC Outputs • AL1012ULXPD16 • AL1012ULXPD16CB... -
Page 2: Specifications
Overview: The AL1012ULX is a power supply that converts a 115VAC / 60Hz input to a 12VDC output (see specifications). The AL1012ULX is a base unit for a series of UL Listed multi-output power supply/chargers including: AL1012ULXPD4, AL1012ULXPD4CB, AL1012ULXPD8, AL1012ULXPD8CB, AL1012ULXPD16, AL1012ULXPD16CB (Refer to AL1012ULX Series Power Supply Configuration Reference Chart below). -
Page 3: Maintenance
Loss of AC. Stand-by battery supplying power. No DC output. Loss of AC. Discharged or no stand-by battery. No DC output. PD4/PD4CB/PD8/PD8CB - Power Distribution Module Green Power Distribution Module Status Normal operating condition. No Power Output. AL1012ULX Series - 3 -... -
Page 4: Terminal Identification
Stand-by battery connections. Maximum charge rate 0.7A. PD4/PD4CB/PD8/PD8CB - Power Distribution Module Terminal Legend Function/Description PD4/PD4CB PD8/PD8CB 1P to 4P 1P to 8P Positive DC power outputs. 1N to 4N 1N to 8N Negative DC power outputs. - 4 - AL1012ULX Series... - Page 5 O U T P U T S DC Output to devices (non power-limited) 12VDC Rechargeable Battery (optional) CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. AL1012ULX Series - 5 -...
-
Page 6: Power Distribution Module(S)
O U T P U T S INPUT C O M M O N P O W E R O U T P U T S DC Output to devices From Power Supply Board (Factory Installed) - 6 - AL1012ULX Series... - Page 7 Notes: AL1012ULX Series - 7 -...
- Page 8 (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IIAL1012ULX series E18P MEMBER...
