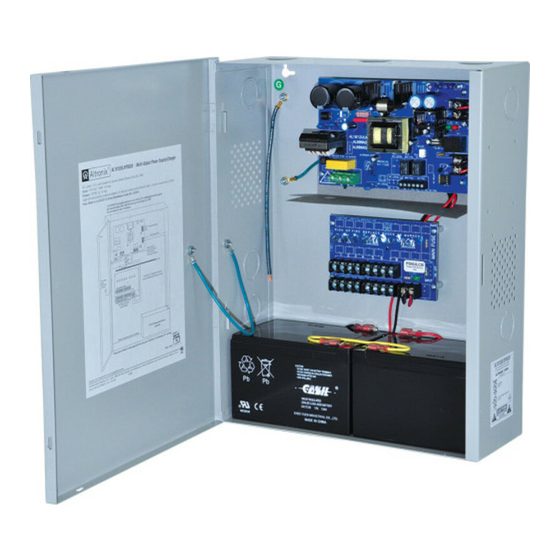

AL1012X220 Series
Power Supply/Charger
Models Include:
AL1012X220
- Single Output.
AL1012XPD4220
- Four (4) Fuse Protected Outputs.
AL1012XPD8220
- Eight (8) Fuse Protected Outputs.
AL1012XPD16220
- Sixteen (16) Fuse Protected Outputs.
Installation Guide
Rev. 090302
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
AL1012XPD4CB220
- Four (4) PTC Protected Outputs.
AL1012XPD8CB220
- Eight (8) PTC Protected Outputs.
AL1012XPD16CB220
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL1012X220 Series
Summary of Contents for Altronix AL1012X220 Series
- Page 1 AL1012X220 Series Power Supply/Charger Models Include: AL1012X220 - Single Output. AL1012XPD4220 AL1012XPD4CB220 - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. AL1012XPD8220 AL1012XPD8CB220 - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs. AL1012XPD16220 AL1012XPD16CB220 - Sixteen (16) Fuse Protected Outputs.
-
Page 2: Specifications
Overview: Altronix AL1012X220 is a power supply that converts a nominal 220VAC (working range 198VAC-256VAC) 50/60Hz input to a 12VDC output (see specifications). AL1012X220 is a base unit for a series of multi-output power supply/chargers including: AL1012XPD4220, AL1012XPD4CB220, AL1012XPD8220, AL1012XPD8CB220, AL1012XPD16220, AL1012XPD16CB220 (Refer to AL1012X220 Series Power Supply Configuration Reference Chart below). -
Page 3: Installation Instructions
4 years or less if needed. Optional Rechargeable Stand-by Battery CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. AL1012X220 Series Installation Guide - 3 -... - Page 4 Fig. 1 - AL1012X220 Series CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and fire hazard replace fuse with the same type and rating. Do not expose to rain or moisture. Ground Lug Power Supply/Charger...
-
Page 5: Led Diagnostics
Stand-by battery connections. Maximum charge rate 0.7A. Power Distribution Module Terminal Legend Function/Description PD4/PD4CB PD8/PD8CB 1P to 4P 1P to 8P Positive DC power outputs. 1N to 4N 1N to 8N Negative DC power outputs. AL1012X220 Series Installation Guide - 5 -... -
Page 6: Power Distribution Module(S)
COMMON POWER OUTPUTS DC Output to devices From Power Supply DC Output to devices From Power Supply 1P-8P Power Outputs, Board 1P-8P Power Outputs, Board 1N-8N Common Outputs (Factory Installed) 1N-8N Common Outputs (Factory Installed) - 6 - AL1012X220 Series Installation Guide... - Page 7 Notes: AL1012X220 Series Installation Guide - 7 -...
- Page 8 1.5” 4.615” (117.2mm) 4.615” (117.2mm) (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIAL1012X220 Series...
