7. Coat bolts with sealant (supplied)
Apply sealant
Antenna
mounting
pipe
Tape here to prevent
cable damage.
After connnecting, wrap
connector with self-bonding
tape and then vinyl tape.
Bind the tape end with a cable
tie. Then fasten the connector
with cable band.

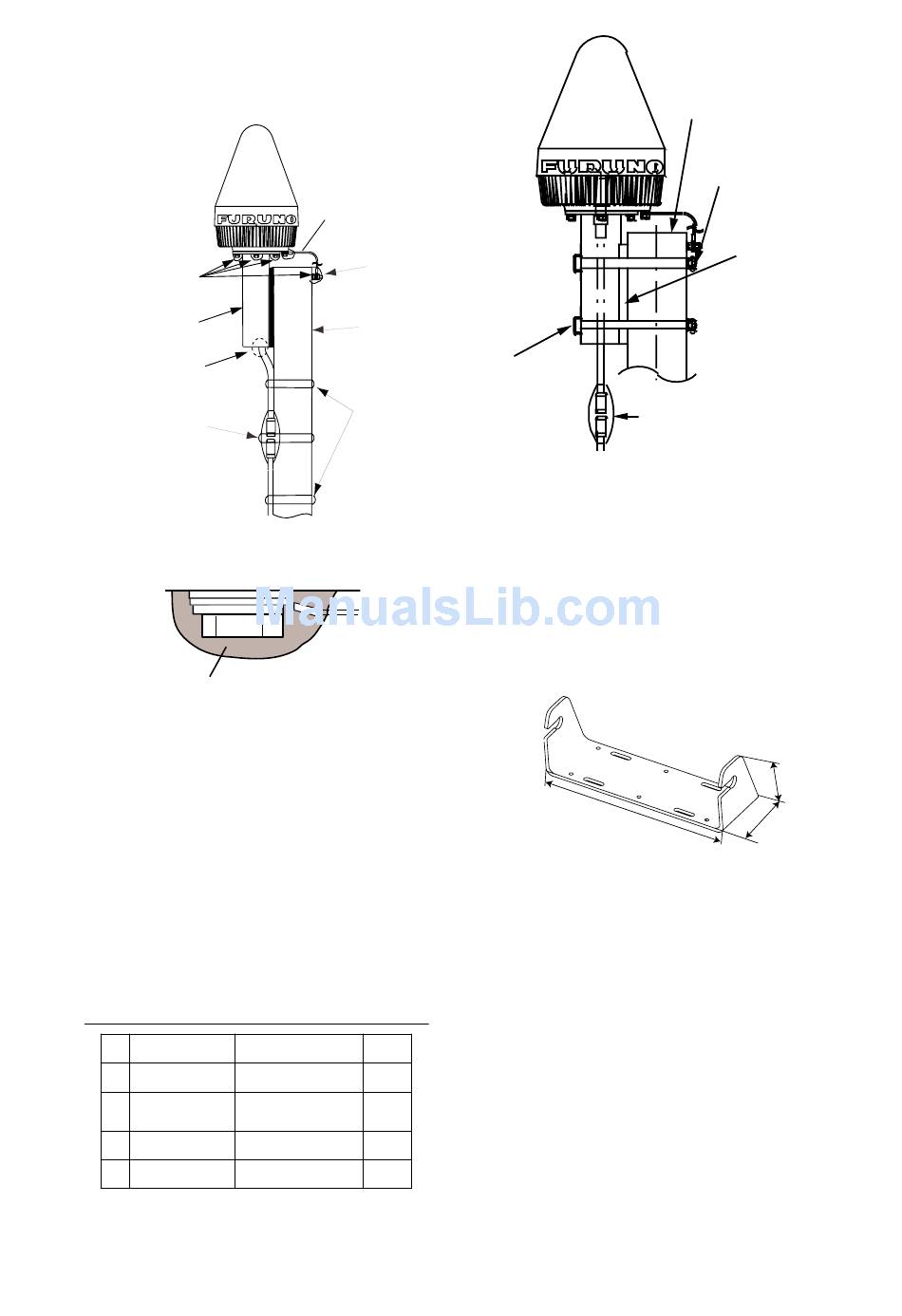

Figure3-6 Antenna unit mounting
Apply sealant all over the
volt/washers/crimp- on lug.
Figure 3-7 Coating bolts with sealant
Note 1: Be sure no sealant enters the bolt hole
of the ground terminal
Note 2: The "antenna installation materials Kit"
(optional supply) is available to fix the
antennamounting pipe to an antenna mast.
Antenna installation materials (option)
Type: CP16-01512
Code. number: 004-437-300
Table 3-2 Optional antenna inst. materials
N a m e
1 H o e s c a l m p N
O v l a e h d a
2 M
c s e r w
3 i P e p f x i u t e r 1 1
4 i P e p f x i u t e r 2 1
Ground wire
(370 mm)
Ground stud
Antenna Mast
Fasten the cable with
cable bands.
T y p e Q y t
. o 3 6 0 8 S U S 3 3 0 2
x 3 2 1 C 7 2 0 0 W 6
- 6 1 0 - 3 0 2 1 6 1
- 6 1 0 - 3 0 2 2 6 2
*
PIPE
FIXTURE 2
After connnecting, wrap
connector with self-
bonding tape and then
vinyl tape. Bind the tape
end with a cable tie.
Figure 3-8 Mounting the antenna with
optional antenna installation materials
Communication unit
1. Fix the hanger on a table with six tapping
screws.
237
Figure 3-9 Hanger for communication unit
2. Set knobs and washers to communication
unit. Set the communication unit to the
hanger and tighten knobs.
POLE DIAMETER
(Ø60-90)
*
HOSE CLAMP
x 2
*
PIPE
FIXTURE 1
: Antenna
*
installation
Materials
82
79
5
